Arduino Ethernet Rev3 s/PoE

Arduino Ethernet Rev3 WITHOUT PoE

LIQUIDACION HASTA AGOTAR STOCK - Edición de Arduino UNO con interfaz Ethernet incorporada (Sin PoE)

COD: A000068

Peso: 0.040 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 30191.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



The Arduino Ethernet is a microcontroller board based on the Arduino Uno, and incorporating a WizNet W5100 TCP/IP Embedded Ethernet Controller. It can be programmed like an Uno via a six-pin FTDI -style serial connector. Any FTDI-style USB-to-serial connector can be used to program it.

Additional features coming with the R3 version are:

  • 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.
  • stronger RESET circuit.

A separate power-over-Ethernet (PoE) module can be soldered to the board to provide power from a conventional twisted pair Category 5 Ethernet cable. It is IEEE802.3af compliant, and works with all compliant PoE injectors currently available.

Technical Specifications

Microcontroller ATmega328
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 4 provide PWM output)
  • Arduino Pins reserved
    • 10 to 13 used for SPI
    • 4 used for SD card
    • 2 W5100 interrupt (when bridged)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Clock Speed 16 MHz
W5100 TCP/IP Embedded Ethernet Controller
Power Over Ethernet ready Magnetic Jack
Micro SD card, with active voltage translators

Arduino Ethernet Official Page

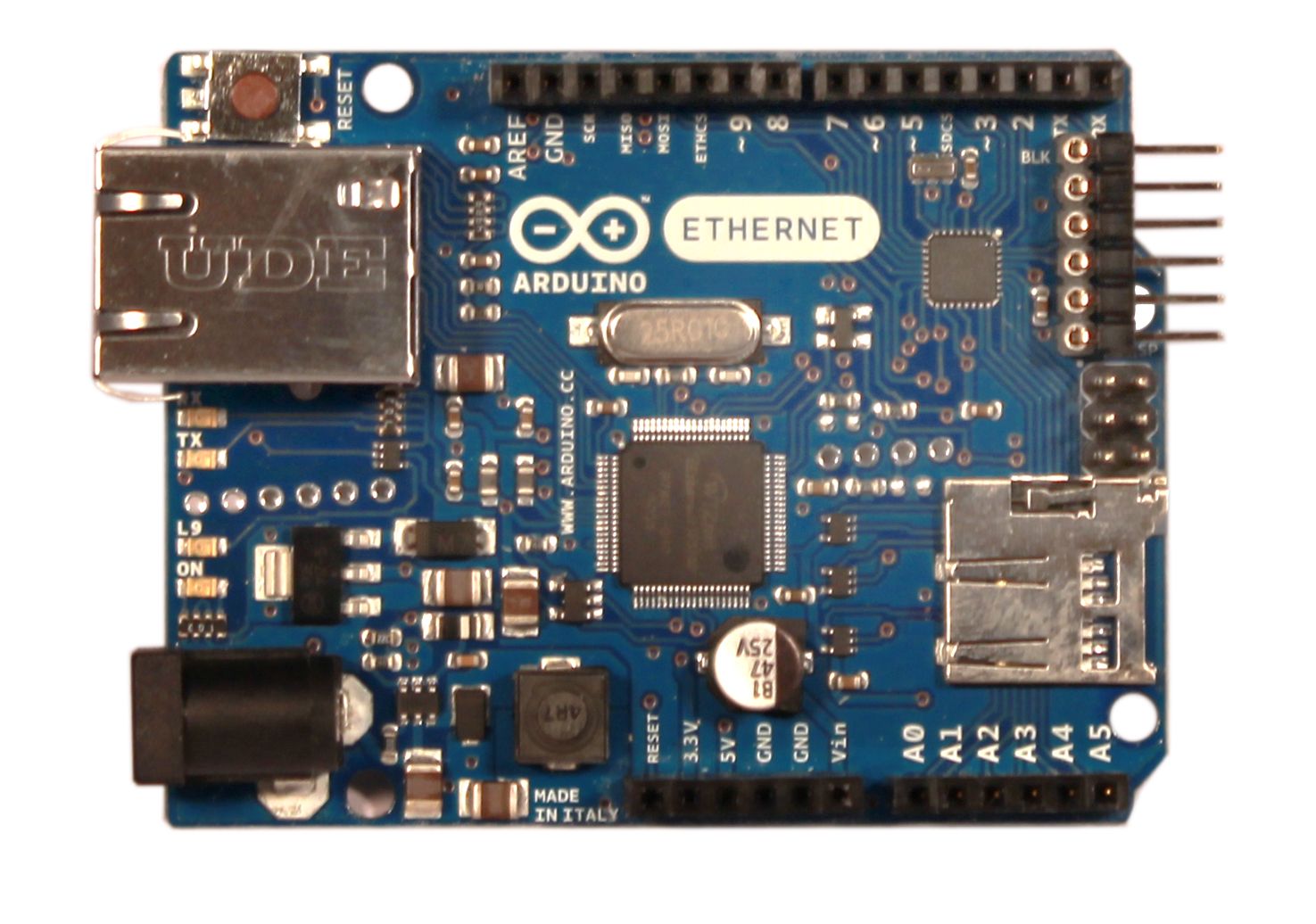

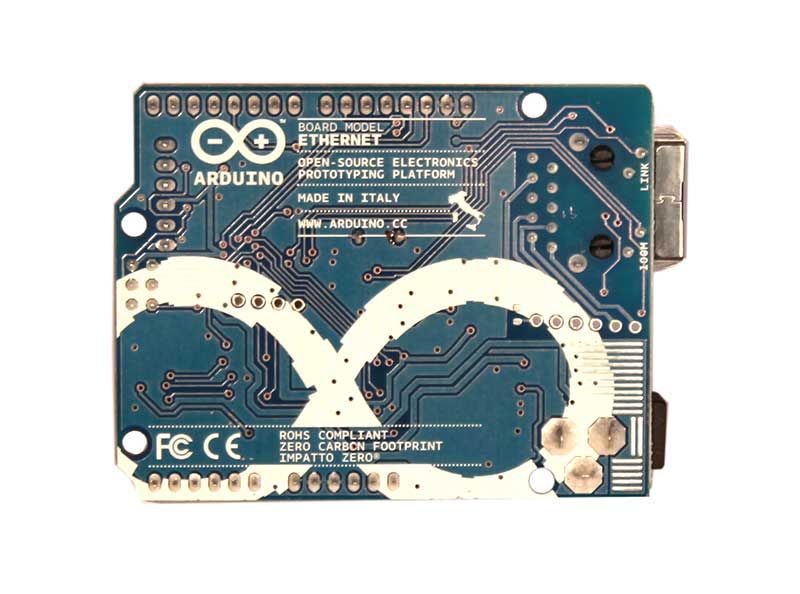

Galería de Imágenes
