Plataforma con Rodamiento Lineal - Diámetro 8mm

Linear Bearing Platform (Large) - 8mm Diameter

Plataforma con rodamiento lineal, para guía de barra cilíndrica de 8mm de diámetro.

COD: D001180

Peso: 0.082 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 13482.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

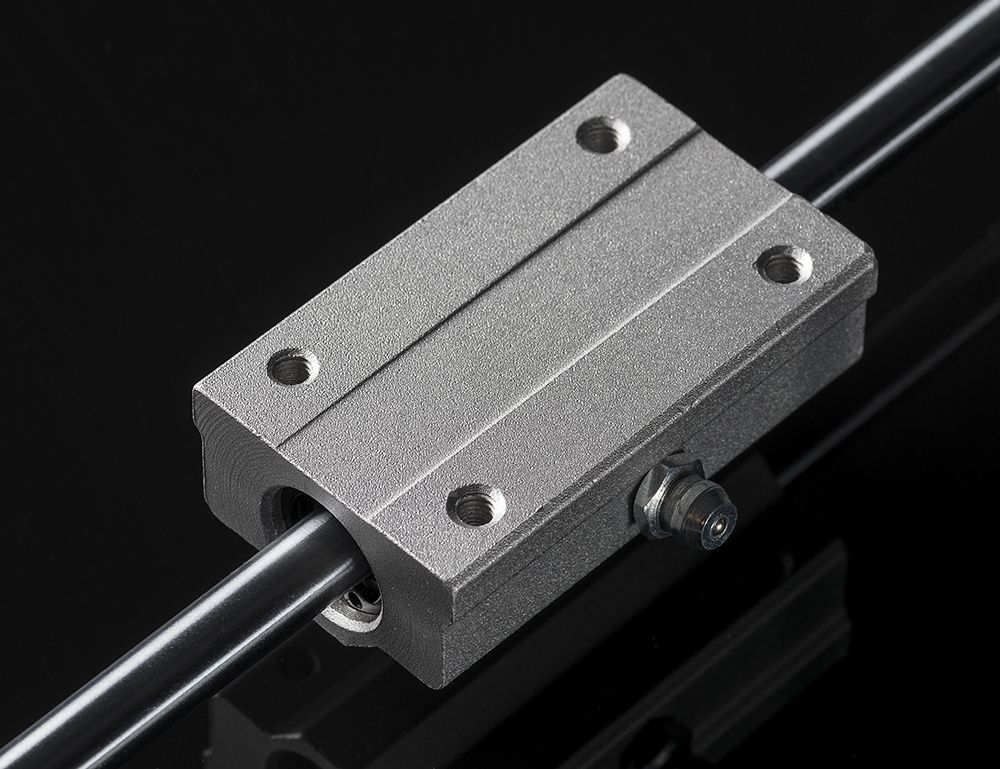

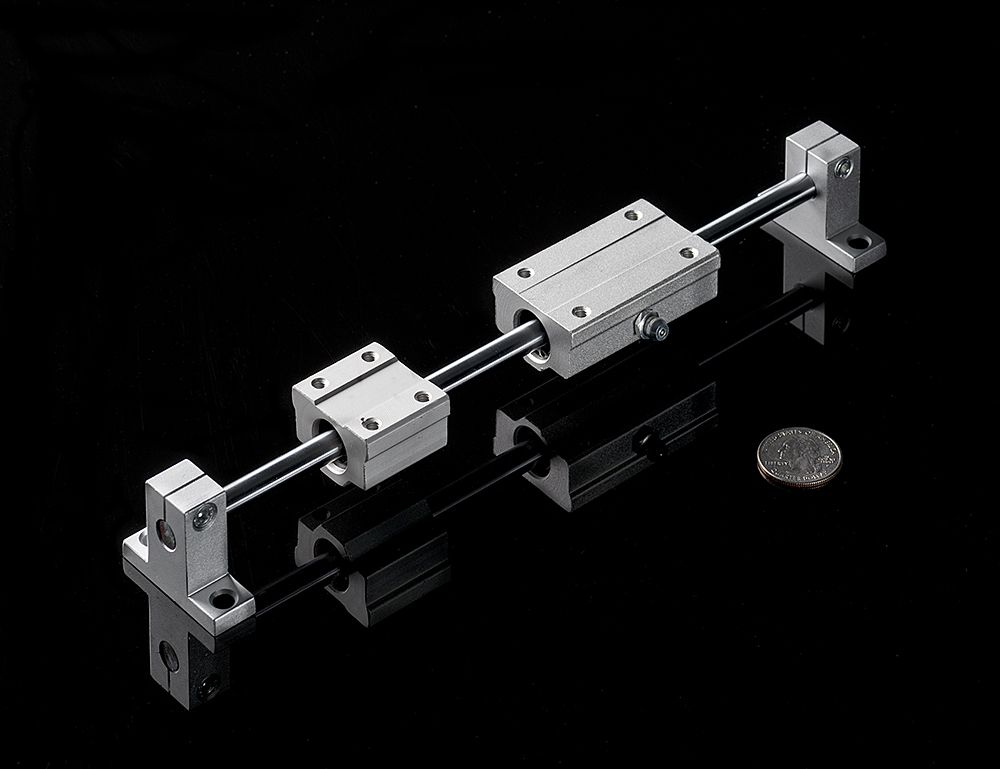

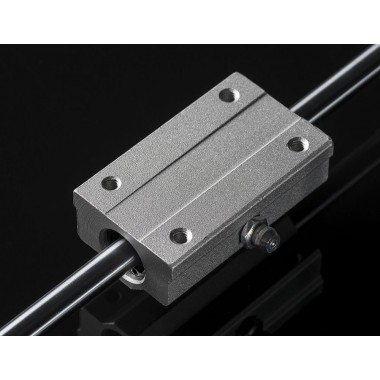

Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 34mm x 58mm and has four holes tapped for M4 machine screws so you can attach pretty much anything you want. All you need to get started is two 8mm supports and a precision-ground 8mm rod. Often times, CNC projects will have two of these on opposite sides to support a larger platform.

  • For 8mm linear railings
  • Dynamic Load rating: 410 N
  • Static Load rating: 800 N
  • Weight: 94 grams
  • Eight ball races
