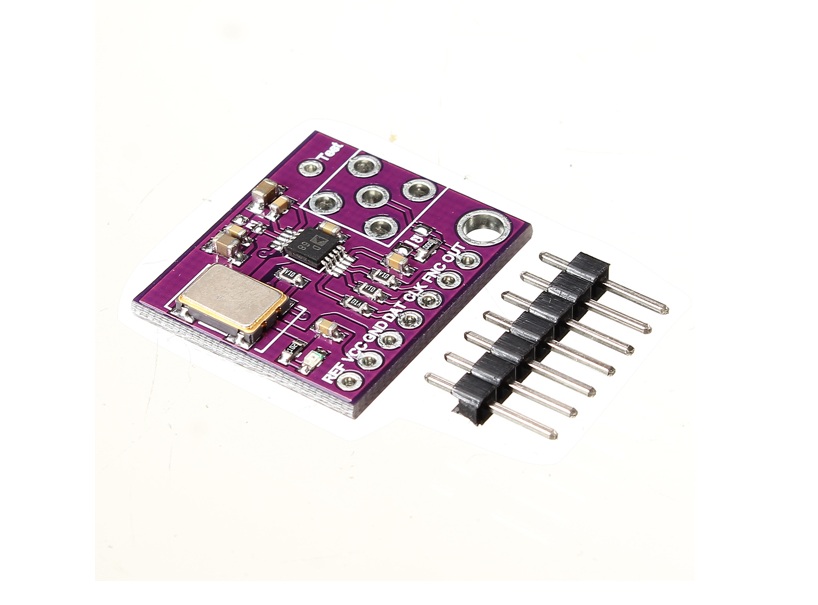

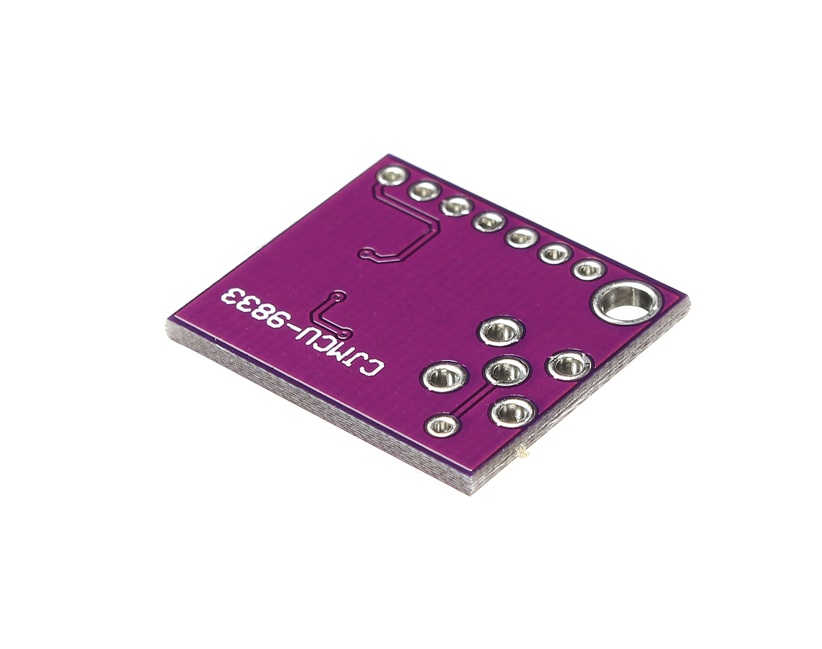

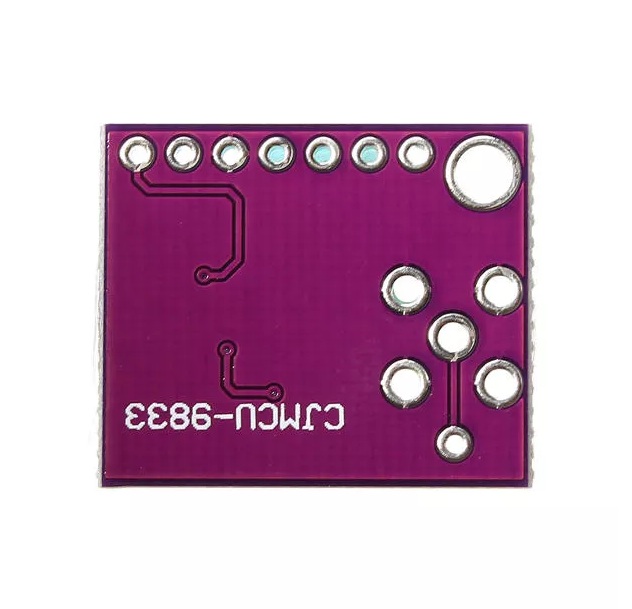

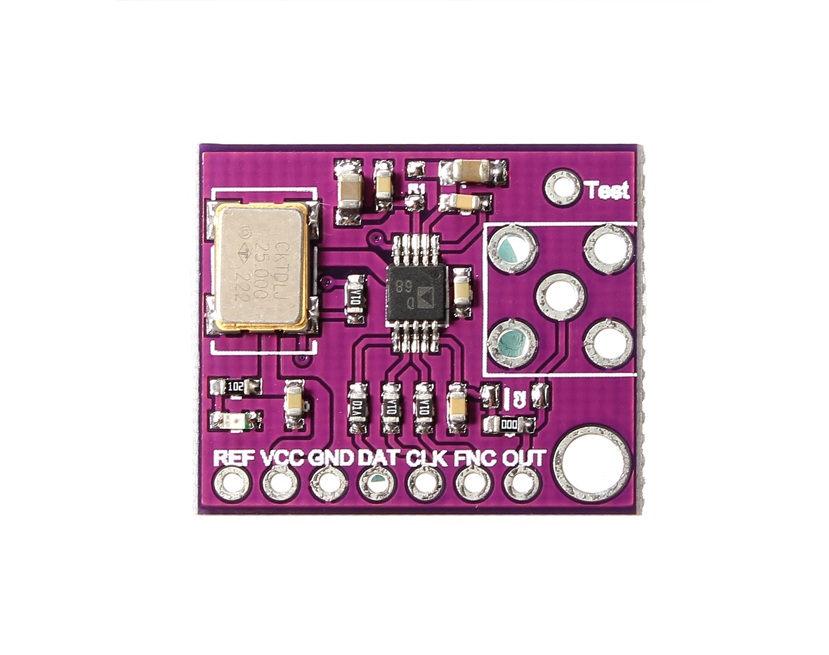

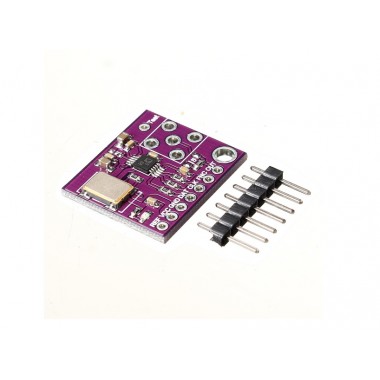

AD9833 Sin Triangle Square Wave Generator

AD9833 Sin Triangle Square Wave Generator

El AD9833 es un generador de forma de onda programable de baja potencia, capaz de generar salidas sinusoidales, triangulares y cuadradas.

COD: HTHS0250

Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 23624.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

AD9833 is a programmable waveform generator capable of generating a frequency 0-12.5MHZ sine, triangle, square wave signal.
Easy to adjust, clocked clock is 25MHz, precision 0.1Hz, clock frequency is 1MHz, the precision is up to 0.004Hz.
Frequency excitation / waveform generation. Liquid, gas flow measurement.
Sensing applications - approximation, sports, defect detection.
Linear loss, linear decay,Test equipment, medical equipment, Scan clock generator.




Specification:

  • Working voltage: 2.3V-5.5V.
  • Working temperature range: -40 ~ + 105 °.
  • Onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
  • On-board high-speed amplifiers 300M and also has a low-pass filtering.
  • Two-channel output signal, an original signal output, an amplified output signal 5 times, 50Ohm output impedance.
  • Support universal plate (tunnel plate), a multiple-board pins are 2.54mm, can be easily welded universal board.
  • Distribution STM32, STM8, STC and other common microcontroller debugged program and relevant information.
  • Size:Approx.24mmX20mm.
  • Material:Metal & Plastic.
