Description
The LoPy4 is a compact quadruple network MicroPython enabled development board (LoRa, Sigfox, WiFi, Bluetooth). It’s the perfect enterprise grade IoT platform for your connected Things. With the latest Espressif ESP32 chipset the LoPy4 offers a perfect combination of power, friendliness and flexibility. Create and connect you things everywhere. Fast.
The LoPy4 can act as a LoRa nano gateway and a multi-bearer (LoRa, Sigfox, WiFi and BLE) development platform suitable for all LoRa and Sigfox networks around the globe. It is programmable with MicroPython and the Pymakr plugins for fast IoT application development, easy programming in-field and extra resilience with network failover. You can also configure the LoPy4 in raw LoRa mode to send packets directly between LoPy4’s. The best blend of speed to deployment and access to new LPWAN networks rolling out across Europe, USA, Africa and India. The LoPy4 is CE, FCC, IC, RCM approved, LoRaWAN and Sigfox certified.

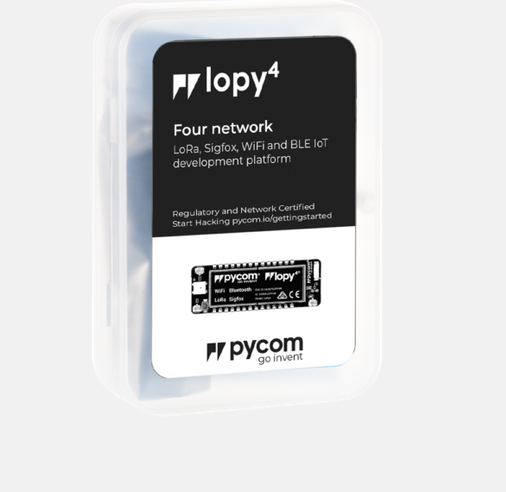

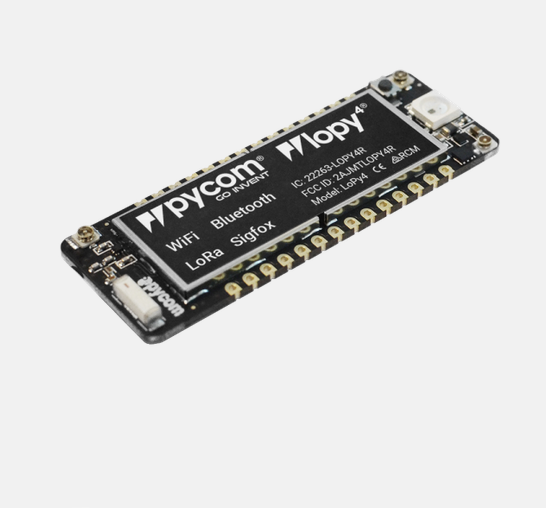

The board ships with or without male headers mounted as seen on the pictures.
NOTE: Using the LoRa or Sigfox radio without the external antenna can lead to damage of the device and is therefore not recommended.
If you are purchasing the LoPy4 and wish to connect via USB to your computer, you will also need to purchase either the Expansion Board 2.0, Pysense or Pytrack.
LoPy4 Features
- Powerful CPU, BLE and state of the art WiFi radio
- Can also double up as Nano LoRa gateway
- MicroPython enabled
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected micro controllers
Processing
- Espressif ESP32 chipset
- Dual processor WiFi radio System on chip
- Network processor handles the WiFi connectivity and the IPv6 stack
- Main processor is entirely free to run the user application
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA
Sigfox Operating Frequencies
- RCZ1 – 868MHz (Europe)
- RCZ2 – 902MHz (US, Canada and Mexico)
- RCZ3 – (Japan and Korea)
- RCZ4 – 920-922MHz (ANZ, Latin America and S-E Asia)
Sigfox Specification
- Class 0 device. Maximum Tx power:
- 14dBm (Europe)
- 20dBm (America)
- 20dBm (Australia and New Zealand)
- Node range: Up to 50km
- Sigfox certified
LoRa Specification
- Semtech LoRa transceiver SX1276
- LoRaWAN stack
- Class A and C devices
LoRa Operating Frequencies
- 868 MHz (Europe) at 14dBm maximum
- 915 MHz (North and South America, Australia and New Zealand) at 20dBm maximum
- 433 MHz (Europe) at 10dBm maximum
- 470 – 510 MHz (China) at 14dBm maximum
LoRa Range Specification
- Node range: Up to 40km
- Nano-gateway: Up to 22km
- Nano-gateway capacity: Up to 100 nodes
Interfaces
- 2 x UART, SPI, 2 x I2C, I2S, micro SD card
- Analog channels: 8_12 bit ADCs
- Timers: 4_16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- FCC 2AJMTLOPY4R
- CE 0700
Memory
- RAM: 4MB
- External flash: 8MB
- Hardware floating point acceleration
- Python multi-threading
Hash / encryption
- SHA, MD5, DES, AES
WiFi
- 802.1b/g/n 16mbps
Bluetooth
- Low energy and classic
RTC
- Running at 32KHz
Power
- Input: 3.3V 5.5V
- 3v3 output capable of sourcing up to 400mA
- WiFi: 12mA in active mode, 5uA in standby
- LoRa: 15mA in active mode, 1-uA in standby
- Sigfox (Europe): 12mA in Rx mode, 42mA in Tx mode and 0.5uA in standby
- Sigfox (Australia, New Zealand and South America): 12mA in Rx mode, 120 mA in Tx mode and 0.5uA in standby
Size
- 55mm x 20mm x 3.5mm (Without Headers)
Weight
- 7g
- 31g (Packaged)
