Laser Diode - 5mW 650nm Red
Diodo láser de baja potencia, ideal para guías.
COD: D001054
Peso: 0.012 Kg
Disponibilidad: Sin Stock
ARS 18825.00
El producto no está disponible para la venta en este momento
Características

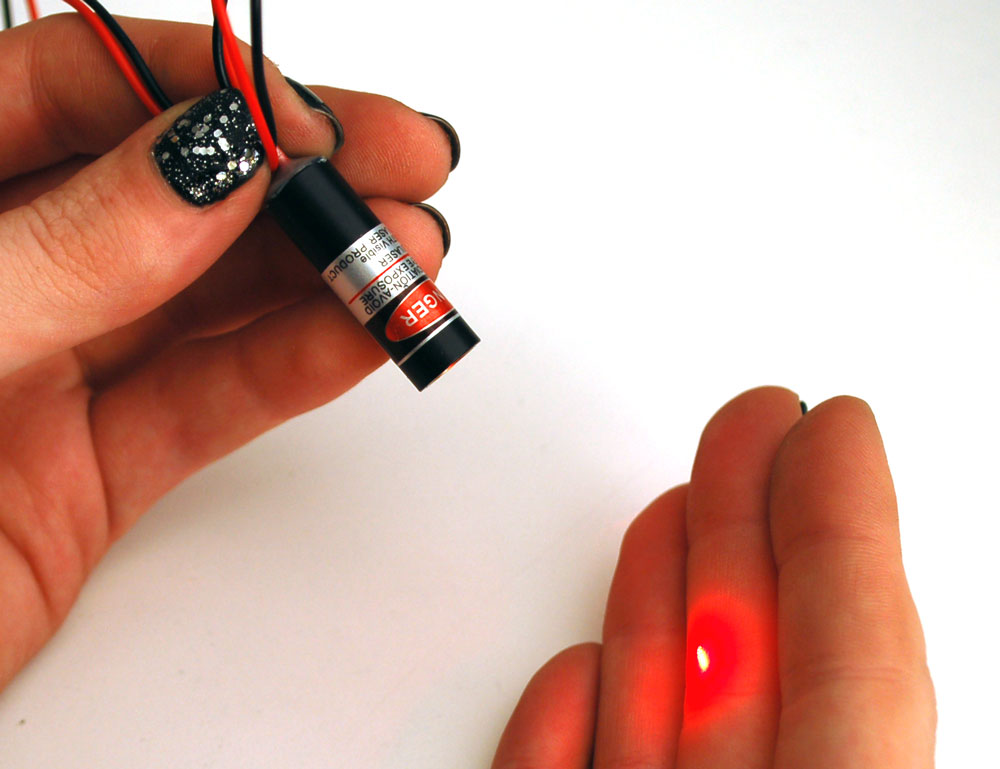

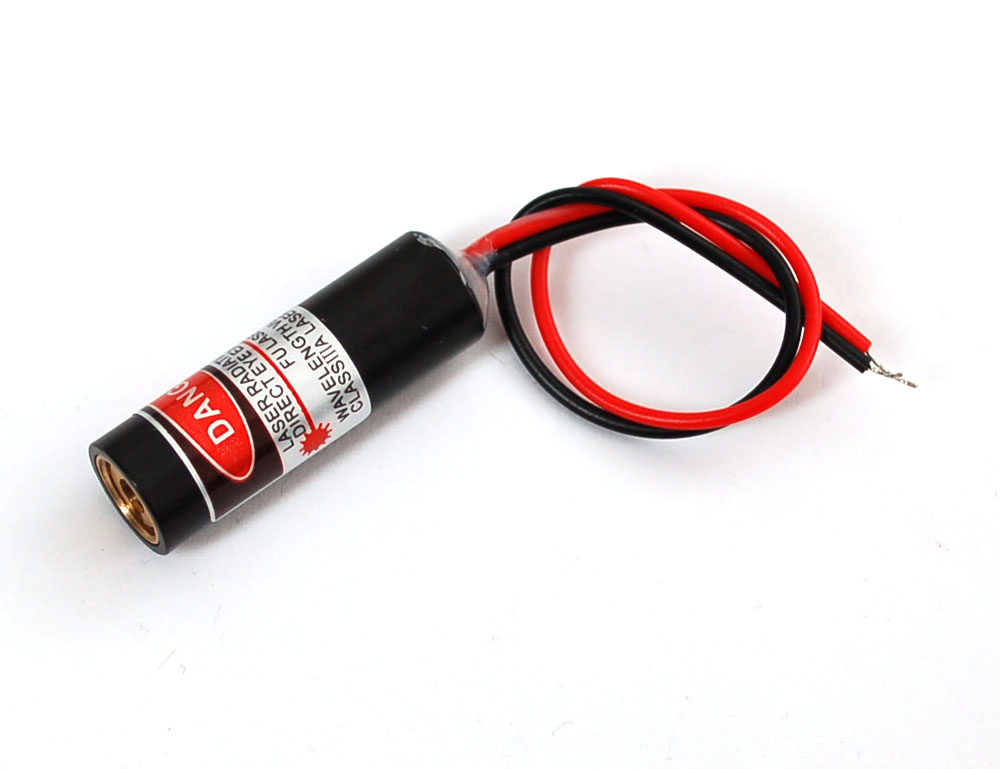

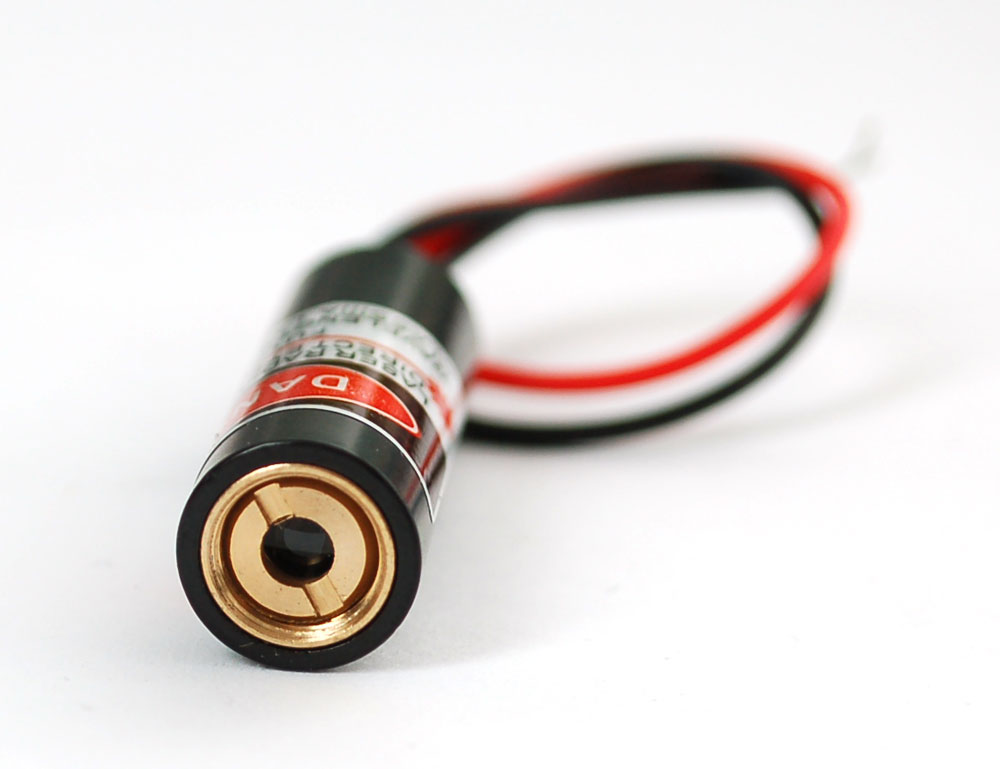

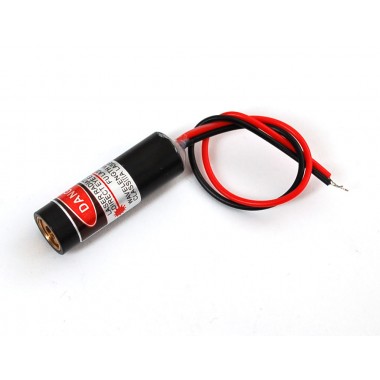

You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project. You can use these for laser harps, electronic 'trip wires', laser-vision guidance, and more! Simply connect power to the red and black wires and you will be lasing in no time.
Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page
- Weight: 11.85g
- Diameter: 10.11mm
- Length: 32.82mm
- Wire length: 100mm
- 650nm wavelength
- 2.8 - 5.2V DC voltage input
- 25mA max current draw
- Operating temperature -10°C to 40°C
Galería de Imágenes
Comentarios
Escribir ComentarioOpenHacks (27/05/2016 - 09:49)
Hola Marcelo, el láser de esta publicación es de muy baja potencia como para realizar grabados. Éste es el adecuado: https://www.openhacks.com/page/productos/id/1392/title/Laser-Engraver-Upgrade-Pack-for-XY-Plotter-Robot-Kit-V2.0 . Está por ingresar pronto en stock. Saludos!
Marcelo (26/05/2016 - 14:33)
Hola queria saber si con este laser se pueden realizar grabados en madera y/o acrilico. Gracias
