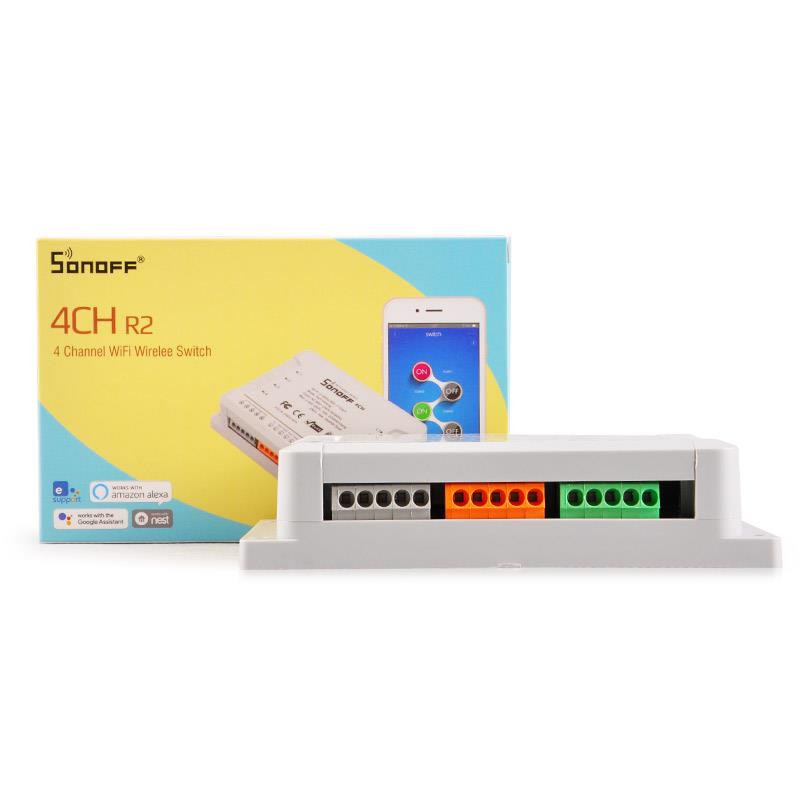

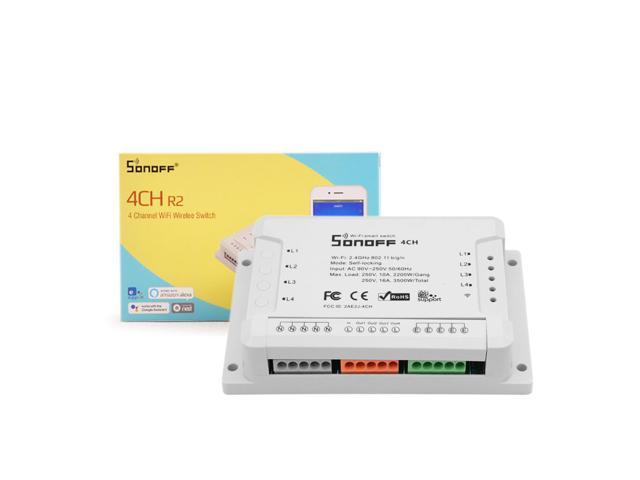

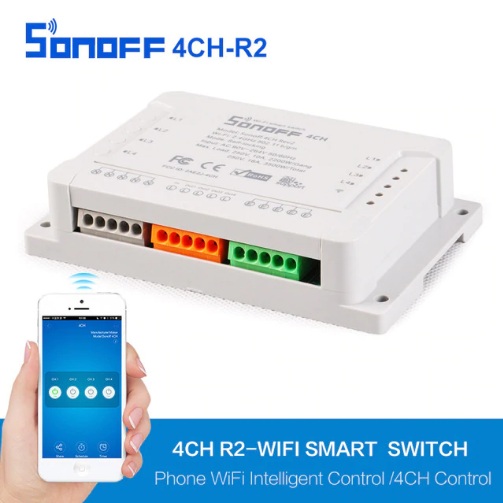

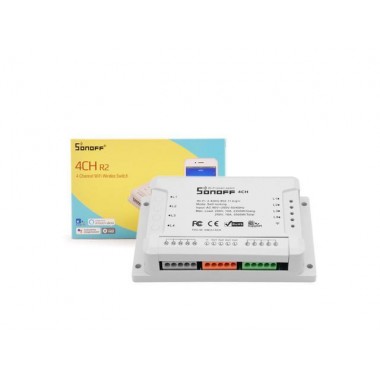

Sonoff 4CH R2

Increíble módulo Switch Sonoff de 4 canales con soporte Ewelink, capaz de controlar de forma independiente y remota, hasta 4 dispositivos por WiFi. El dispositivo es programable, con una amplia cantidad de funciones para controlar. Compatible con Alexa, Google Assistant, IFTTT, etc.

COD: IM171108005

Peso: 0.250 Kg

Disponibilidad: Sin Stock

ARS 46705.00

El producto no está disponible para la venta en este momento

Características

Overview:

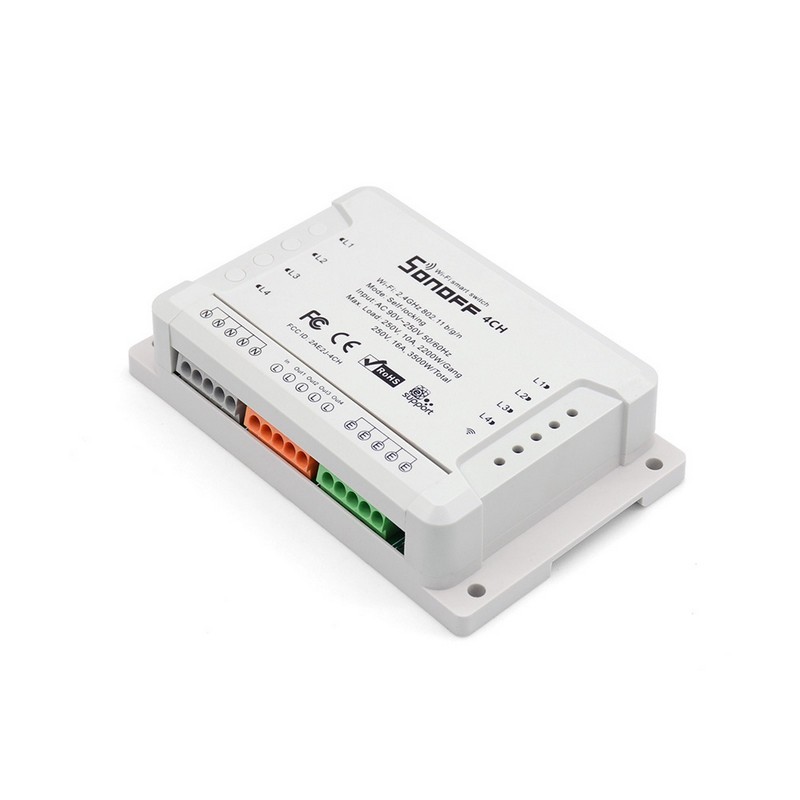

Sonoff 4CH & 4CH R2 are 4-gang switches with din rail mounting. Sonoff 4CH (R2) 4 gang light switch supports to connect and control 4 electrical appliances, which can be turned on/off separately by the buttons or iOS/Android App EweLink. Besides, with the multi gang switch, you can check real-time devices status for each device on App. Owning a Sonoff 4CH (R2) multi gang switch means you have 4 Sonoff basic WiFi switches integrate together.

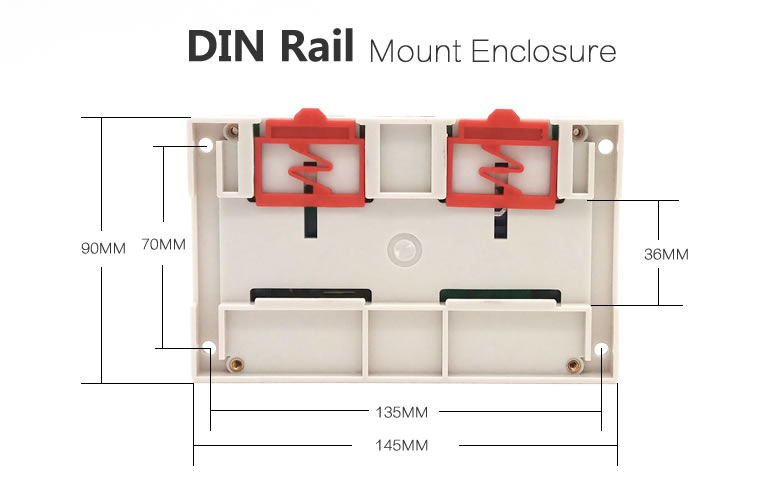

The enclosure is din rail mount supported! A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.

Sonoff 4CH (R2) 4 gang WiFi light switch belongs to Sonoff family, definitely, it bears all the functions basic Sonoff has. In EweLink, you can remote turn on/off from anywhere at any time, set single/repeat/countdown timing schedules to turn on/off at a specified time, share to others so that they can control together.

Sonoff 4CH (R2) is hacker-friendly that you can flash your firmware without difficulty. Read ESP8285 datasheet.

CE/FCC/RoHS Certified (Download the Certificate and Reports)

Characteristics:

Remote ON/OFF–Turn electrical devices on/off from anywhere

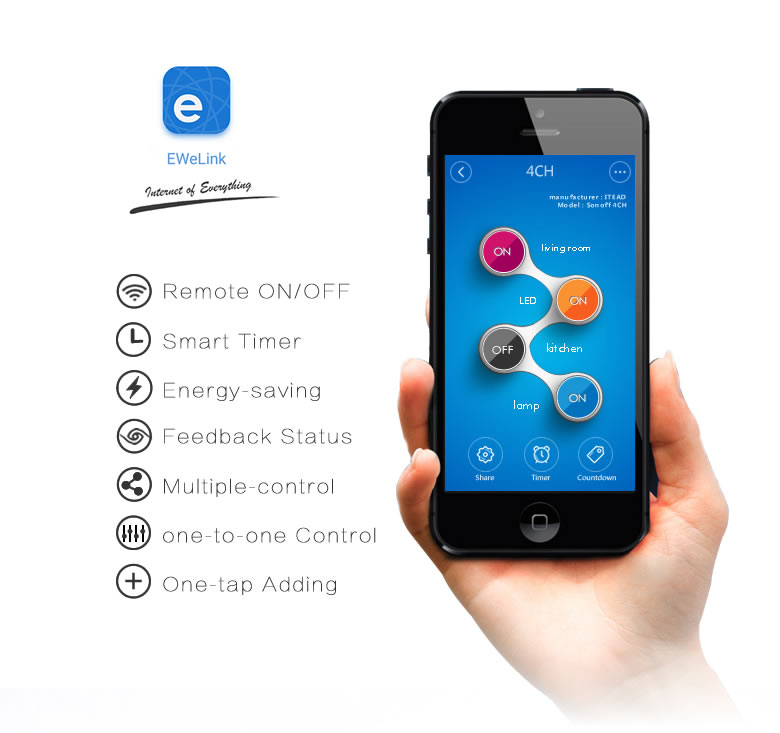

App Support –Free iOS and Android mobile App eWeLink
Independent control–Control each gang separately
DIN Rail Mounted– Great for industrial control
Sync Status–Real-time device status provided to App
Share Control–Control your smart home together with your family
Timing–Set scheduled/countdown timers to turn on/off at specified time
Scene–Turn on/off a gang of devices with one tap
Smart Scene–Triggered on/off by temp, hum or other environmental conditions from sensor
Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest

Works With Amazon Alexa:

You can ask Alexa to turn on/off Sonoff 4CH (R2).

Standard voice control commands phrases (if you just say the device name, Alexa will turn on/off all the 4 gangs immediately):

Alexa, turn on {deviceName}
Alexa, turn off {deviceName}

Alexa, turn on {deviceName} {gangName}
Alexa, turn off {deviceName} {gangName}

The default names for the 4 gangs are: outlet 1, outlet 2, outlet 3, outlet 4. You can change the name if you like.

Explanation: if the device name of your Sonoff 4CH (R2) is "My Switch", the gang name is "Outlet 1", then you can control with "Alexa, turn on My Switch Outlet 1".

For detailed tutorial, please click here.

Features:

Turn on/off 4 home appliances remotely
Device status's synchronously display
Scheduled/Countdown timers
Share control
Supports setting power on status
Works with Amazon Echo, Echo Dot, Amazon Tap
Works with Google Home, Google Nest
Works with IFTTT

Specification:

Power Supply: 90V~250V AC(50/60Hz)
Max. Current: 10A/gang
Max. Powerï¼š2200W/gang, 2200W/Total
Wireless Standard: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Enclosure Material: Fire-retardant ABS V0
Gang: 4
Dimensions: 145*90*40 (mm)
Operating Temperature(recommended): 0ºC-40ºC(32°F-104°F)
Operating Humidity: 5%-90%RH, Non-condensing
4CH Certification: CE/FCC/RoHS (Download)
4CH R2 Certification: CE/RoHS (Download), FCC(Download)

ADDITIONAL INFORMATION:

Weight	250 g
Discontinued	No
Model	IM180117101
Link Wiki	No
Works With Google Nest	Yes
Works With Amazon Alexa	Yes
Works With Google Assistant	Yes
EWeLink Support	Yes
