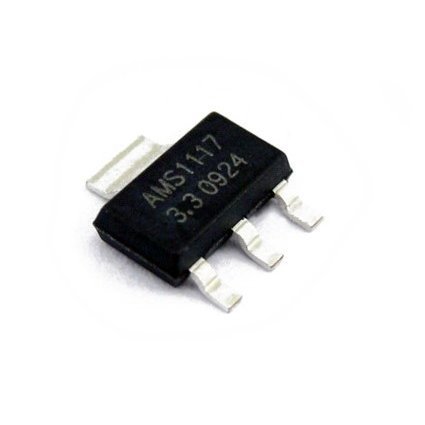

AMS1117-3.3 SOT223 3.3V 1A Regulator

AMS1117 -3.3V 3.3V SOT223

Regulador de 3,3 voltios AMS1117-3.3, encapsulado SOT223 (SMD). Con capacidad de corriente de 1A.

COD: HTHR0678-U

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1258.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

The AMS1117-ADJ and AMS1117-1.2,-1.5,-1.8,-2.5,-2.85, -3.3 and-5 are low dropout three-terminal regulators with 1A output current capability. These devices have been optimized for low voltage where transient response and minimum input voltage are critical. The 2.85V version is designed specifically to be used in Active Terminators for SCSI bus. On-chip thermal limiting provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. Unlike PNP type regulators where up to 10% of the output current is wasted as quiescent current, the quiescent current of the AMS1117 flows into the load, increasing efficiency. The AMS1117 series regulators are available in the industry-standard SOT-223 and TO-252 power packages.



Features:

  • Low dropout voltage.
  • Load regulation: 0.2% typical.
  • Optimized for Low Voltage.
  • On-chip thermal limiting.
  • Standard SOT-223 and TO-252 packages.
  • Three-terminal adjustable or fixed low dropout 1.2V,1.5V,1.8V, 2.5V, 2.85V, 3.3V, 5V. Regulators.



Applications:

  • Active SCSI terminators.
  • High efficiency linear regulators.
  • Post regulators for switching supplies.
  • Battery chargers - 12V to 5V linear regulators.
  • Motherboard clock supplies.
