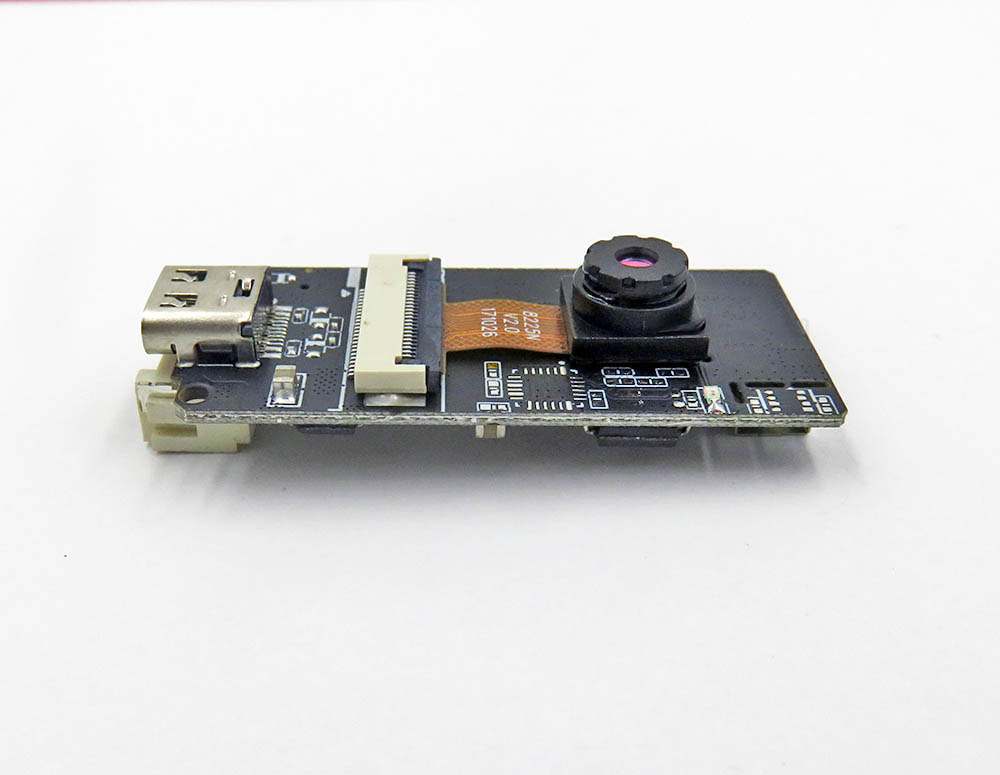

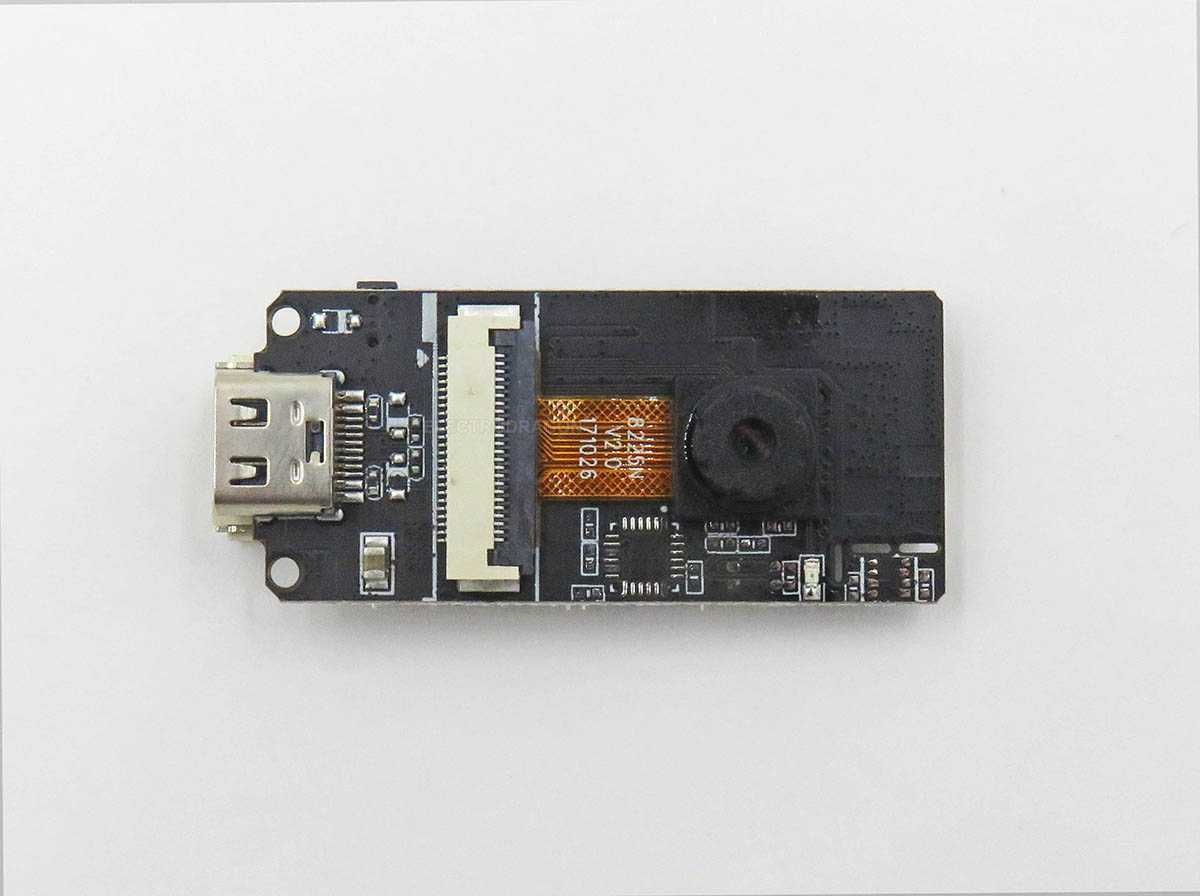

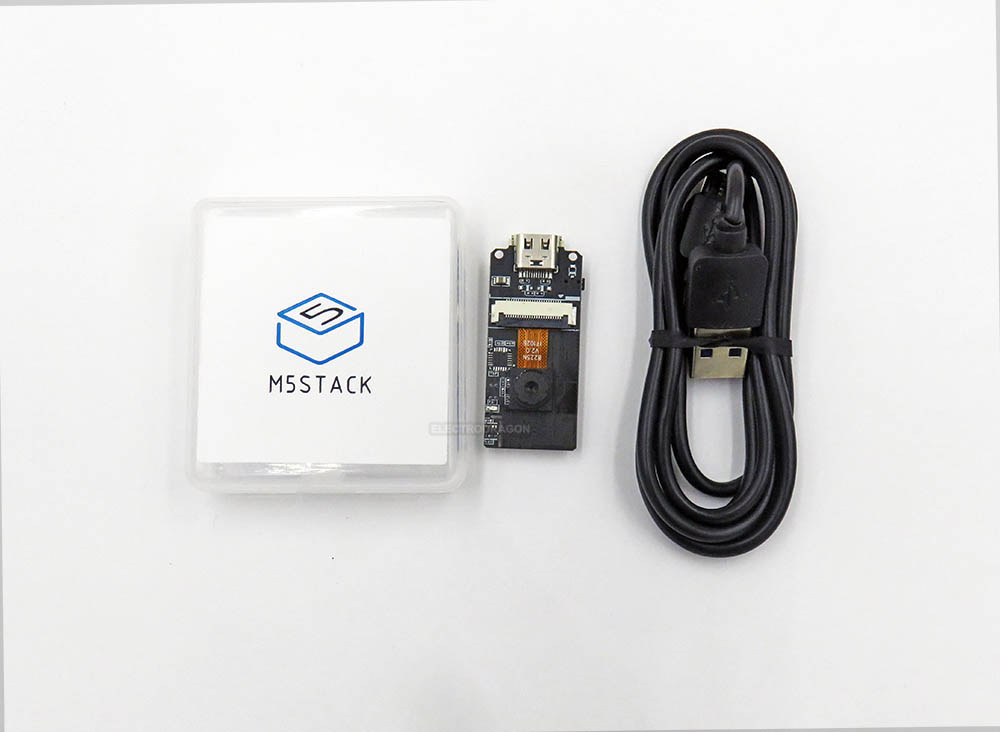

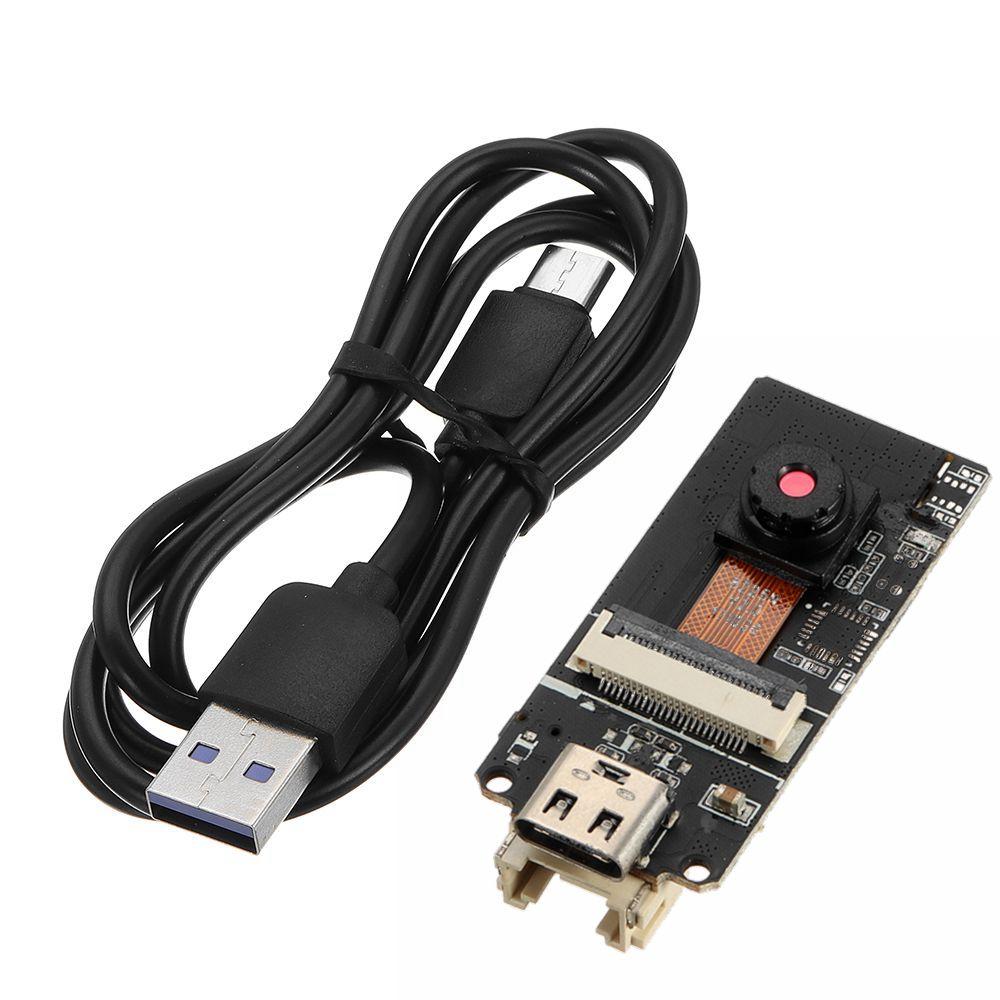

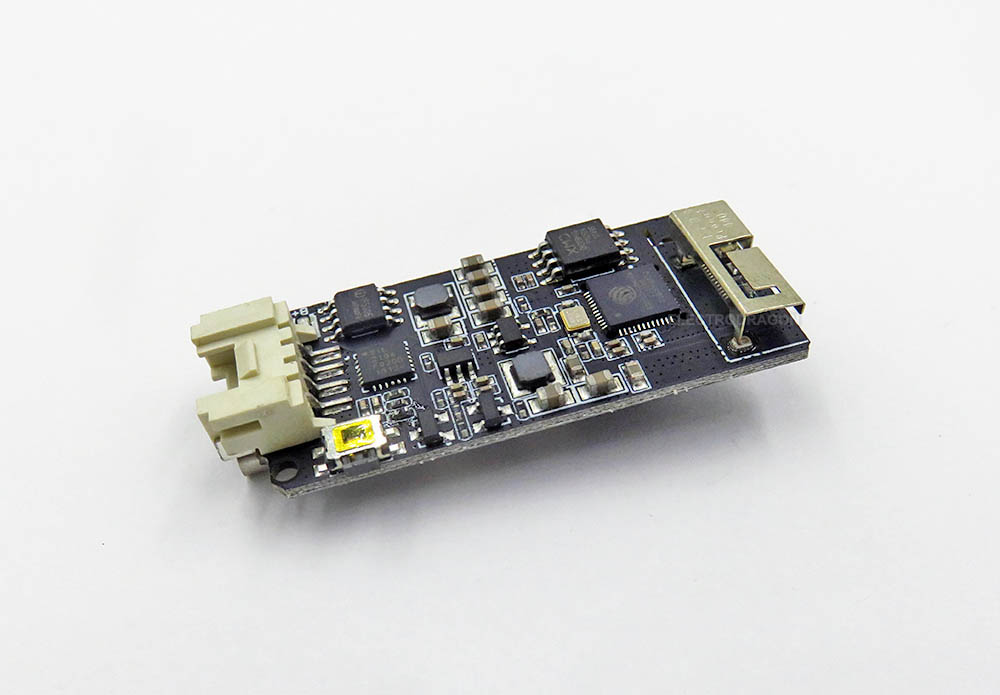

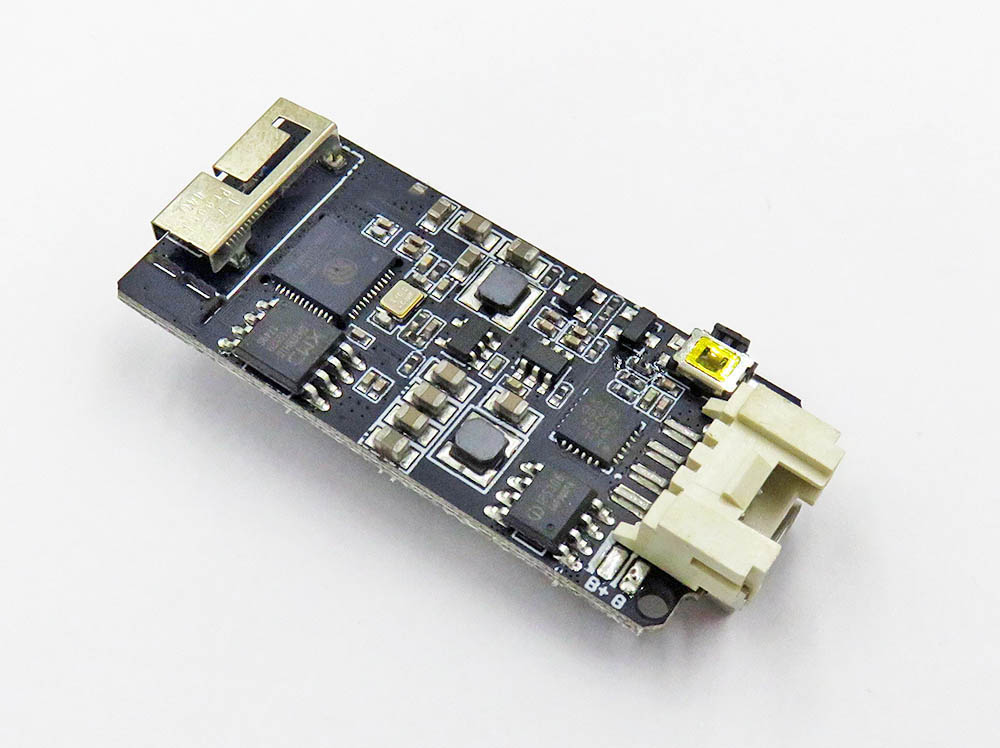

M5Stack ESP32CAM Camera Module, ESP32 + OV2640

M5Stack ESP32CAM Camera Module, ESP32   OV2640

Excelente módulo para hacer desarrollos sobre la plataforma ESP32 (compatible con Arduino). Este módulo integra un ESP32 (posee conectividad WiFi, y Bluetooth) y una cámara OV2640 (resolución 1600x1200), convirtiéndolo en una excelente opción para desarrollo de proyectos de Internet de las Cosas. Posee interfaz USB e integra cargador y conector para bateria de Li-Ion.

COD: TROSCM1027

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 38352.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

The ESP32CAM is a tiny module based on ESP32 chip and OV2640. You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core.

The ESP32CAM equips the ESP32 with everything necessary to program, run and develop on the wonderchip. It also features a LiPo charger (IP5306) , so your ESP32CAM project can be battery-powered and truly wireless. Additionally, the board reserved the MPU6050,BME280 and an analog MIC.



Features:

ESP32 specifications:

  • Dual-core Tensilica LX6 microprocessor.
  • Up to 240MHz clock frequency.
  • 520kB internal SRAM.
  • 4MB Flash memory.
  • Integrated 802.11 BGN WiFi transceiver.
  • Integrated dual-mode Bluetooth (classic and BLE).
  • Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096).
  • CP2104 USB TTL.

OV2640 sensor:

  • Output Formats(8-bit):
  • YUV(422/420)/YCbCr422.
  • RGB565/555.
  • 8-bit compressed data.
  • 8-/10-bit Raw RGB data.
  • Maximum Image Transfer Rate.
  • UXGA/SXGA: 15fps.
  • SVGA: 30fps.
  • CIF: 60fps.
  • Scan Mode: Progressive.
  • Camera specifications.
  • CCD size : 1/4inch.
  • Field of View : 78 degree.
  • Maxmium Pixel: 200W.
  • Sensor best resolution: 1600 * 1200.
  • Dimension: 25mm x 24mm.
  • Weight: 5g

Documentations:

  1. Development environment is IDF, demo code here.
  2. On board MPU6050 and BEM280 pad, user can solder by youself.
  3. On board IP5306, can charge and use lithium battery
  4. diagram:https://github.com/m5stack/esp32-cam-demo/blob/m5cam/M5CAM-ESP32-A1-POWER.pdf
  5. examples:https://github.com/m5stack/esp32-cam-demo
  6. datasheet(ESP32):https://cdn.sparkfun.com/datasheets/IoT/esp32_datasheet_en.pdf
  7. datasheet(OV2640):https://github.com/m5stack/esp32-cam-demo/blob/m5cam/M5CAM-ESP32-A1-POWER.pdf
  8. GitHub:https://github.com/m5stack/esp32-cam-demo
