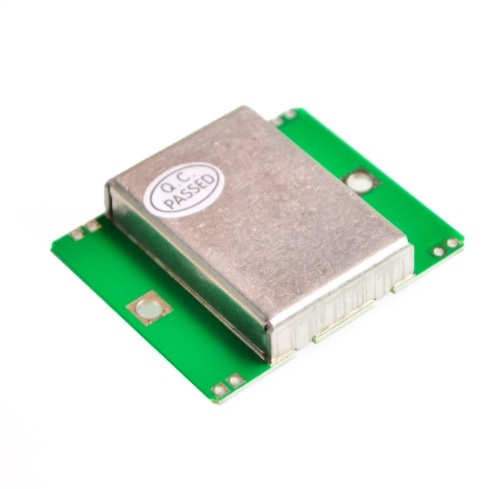

HB100 Microwave Motion Sensor 10.525GHz Doppler Radar

HB100 Microwave Motion Sensor 10.525GHz Doppler Radar

Sensor de movimiento basado en el chip HB100; puede alimentarse con 5V y tiene un rango de detección de 20 m; ideal para proyectos de seguridad entre otros.

COD: HTHS0942

Peso: 0.000 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 9888.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview:

HB100 Miniature Microwave Motion Sensor is a X-Band Bi-Static Doppler transceiver module. It has a built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, making it ideal for usage in motion detection equipment.

This module is ideal for alarms, motion detectors, lighting control, vehicle speed measurement and automatic doors.



Features:

  • Low current consumption (typical 30 mA).
  • CW or pulse operation
  • Flat profile.
  • Long detection range (20 m).
  • Supply voltage: between 4.75V and 5.25V.
  • X-Band frequency: 10.525 GHz.
  • Minimum Power Output: 13 dBm EIRP.

Note: Please use a low voltage soldering iron and connect it to a reliable grounding. This device is sensitive to ESD and it may be damaged during soldering. The IF output of the HB100 module is especially sensitive. You can check it for damage using a multimeter in diode mode. The forward voltage drop between IF and GND should be about 0.25 V.
