Zero4U - 4 Port USB Hub for Raspberry Pi Zero v1.3
Hub USB para la Raspberry Pi Zero (V1.3). Integra 4 puertos USB 2.0, conector micro USB, y conector JST para poder alimentarlo de forma independiente. Incluye juego de tornillos y soportes para montarlo a la Raspberry Pi Zero.
COD: D003298
Peso: 0.015 Kg
Disponibilidad: Sin Stock
ARS 23585.00
El producto no está disponible para la venta en este momento
Características
Description:
One can never have enough socks, or USB ports. Add some more USB capability to your Raspberry Pi Zero with the Zero4U!

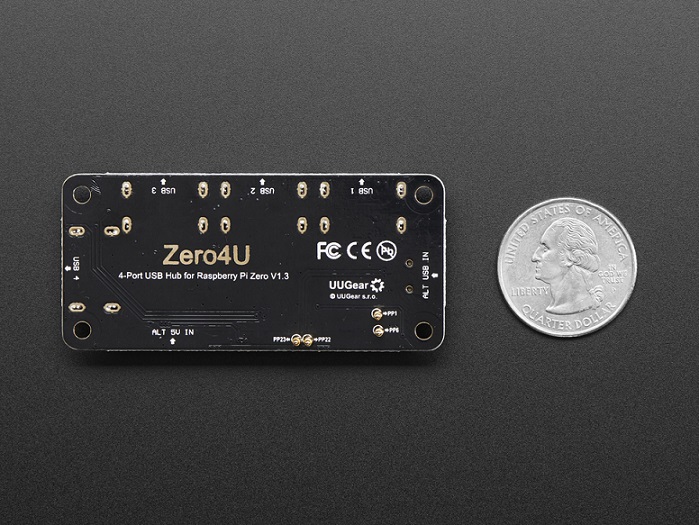

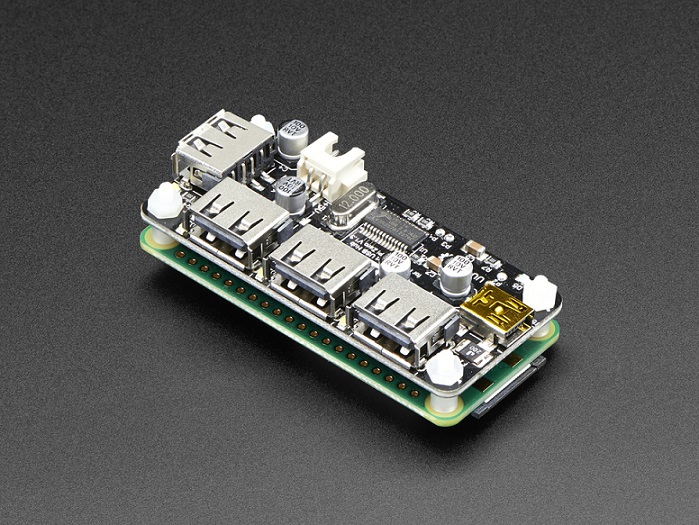

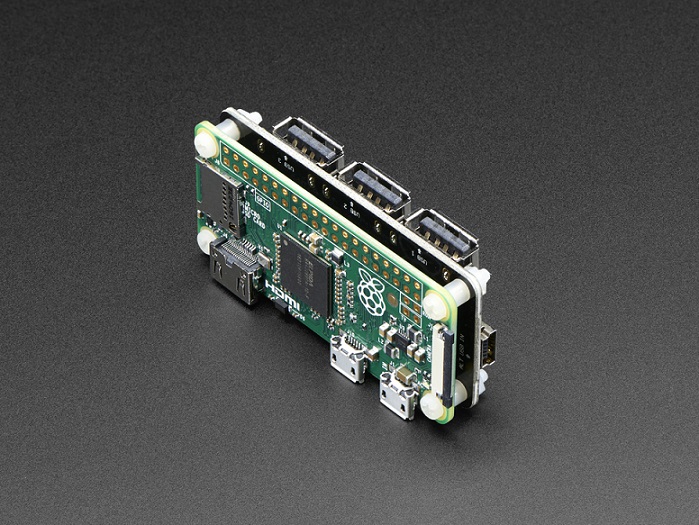

This is a 4-port USB hub for Raspberry Pi Zero, and it can be mounted back-to-back onto a Pi Zero. The 4 pogo pins on the back will connect the PP1, PP6, PP22 and PP23 testing pads on your Raspberry Pi Zero – no soldering required!
This item can only work with the Zero W if a ferrite ring is installed!

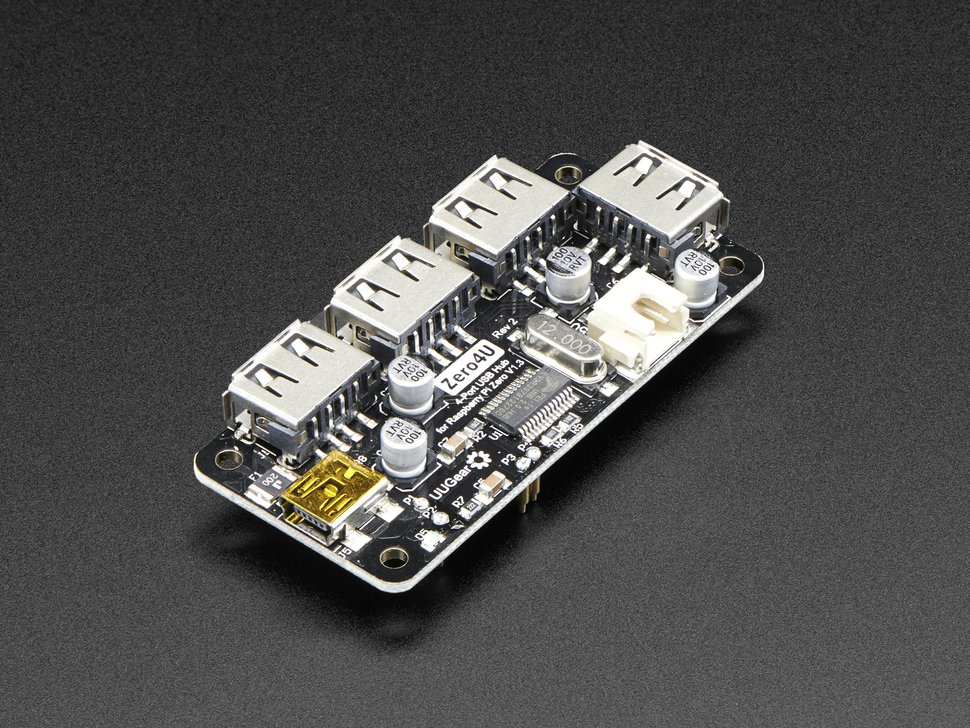

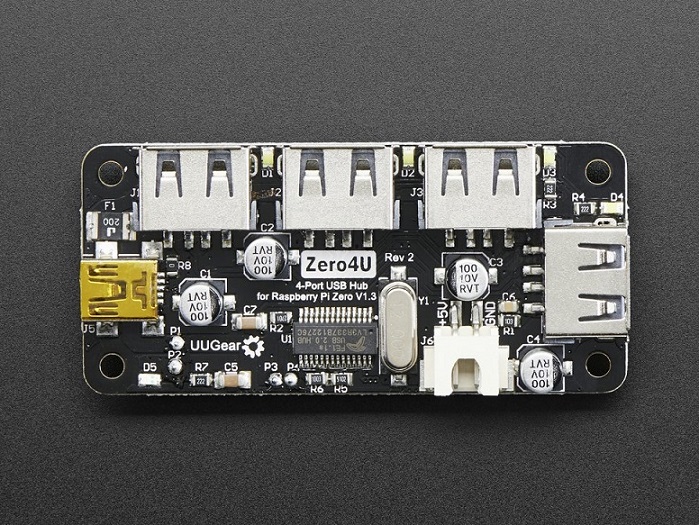

The USB hub will take power directly from your Pi Zero, so you don’t need to power the USB hub separately. However you can use the JST XH2.54 connector on board as an alternative power input port. The blue onboard LED is the power indicator, and will light up when power is connected. Each USB port uses a dedicated white LED as a transaction indicator, and a dedicated electrolytic capacitor to help stabilize the output voltage.
If you use this USB hub with other types of computers, you can use a USB cable (not included) to connect the onboard mini-USB port to the up-stream USB port.
Kit includes:
- 4-port USB hub board x 1.
- Plastic spacer x 4.
- M2.5 plastic screw x 4.
- M2.5 plastic nut x 4.
Note: This version of Zero4U only works with the Raspberry Pi Zero v1.3 (with camera connector).
Note: As of 3/29/2017, this ships with a small Ferrite ring in each Zero4U package, in order to support the newly released Raspberry Pi Zero W. The user can put that Ferrite ring on the pogo pins to avoid the interference from the on-board antenna.
Technical Details:
- Power Mode: Bus-Power / Self-Power.
- Standards: USB 2.0 and 1.1 compatibility.
- Working Voltage: 5V DC.
- Static Current: 1mA.
- Maximum Output Current: 2A for all ports in self-power mode, 500mA for all ports in bus-power mode.
- Operating Temperature: 0°C~70°C.
- Storage Temperature: -20°C~80°C.
- Humidity: 0~80%RH, non-condensing.
Product Dimensions: 65.0mm x 30.0mm x 15.0mm / 2.6" x 1.2" x 0.6".
Product Weight: 14.1g / 0.5oz.
