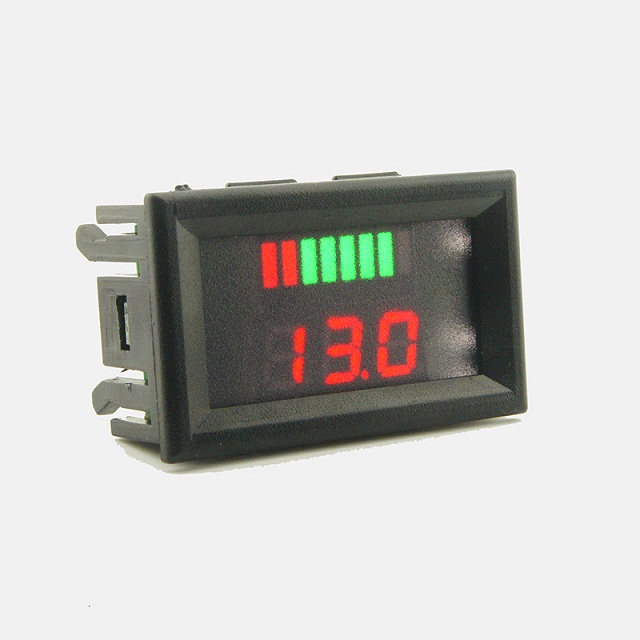

12V LED Digital Battery Capacity Indicator

12V LED Digital Battery Capacity Indicator

Indicador de Tensión y capacidad para baterías de 12V de tipo 18650 LiPo y Li-Ion, baterías de ácido-plomo, entre otras. Posee display de tipo LED. De tamaño compacto.

COD: HTHS0489

Peso: 0.030 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 11245.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

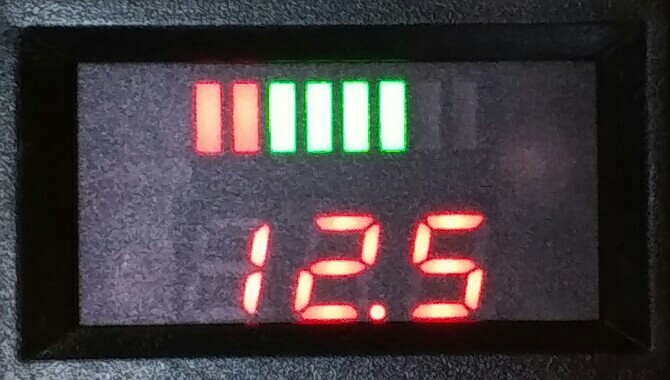

1. Double display: the battery capacity + voltage. Show more intuitive.
2. Up line: 8 colorful bar shows the battery power, the down line: voltmeter displays battery voltage, the voltage table decimal point automatically shift, accuracy is higher.
3. Use of a wider range: 18650 lithium polymer lithium battery pack, lead-acid batteries, electric car batteries, and other types of electric equipment can be used.

Indicator:
Battery voltage is greater than 11.1V, 1 led indicator is lit.
Battery voltage is greater than 11.3V, 2 led indicator is lit.
Battery voltage is greater than 11.6V, 3 led indicator is lit.
Battery voltage is greater than 11.9V, 4 led indicator is lit.
Battery voltage is greater than 12.2V, 5 led indicator is lit.
Battery voltage is greater than 12.5V, 6 led indicator is lit.
Battery voltage is greater than 12.9V, 7 led indicator is lit.
Battery voltage is greater than 13.3V, 8 led indicator is lit.

NOTICE: It will only display voltage if not measure lead-acid battery!!

Specifications:

  • Item Type: Battery Power Capacity Indicator Voltmeter .
  • Working current: 5-15mA (The lower the battery voltage is , the smaller current is).
  • Eight electricity Resolution: 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%.
  • Voltmeter accuracy: 1%.
  • Working temperature: -10 ~ +65°.
  • Operating Humidity: 10 ~ 80%.
  • Material: ABS.
  • Size: 48×29×21mm/1.89×1.14×0.83in (Approx.).
  • LED Indicator Color: Blue/Red (Optional).
  • Quantity: 1PC (other accessories demo in the picture is not included).
