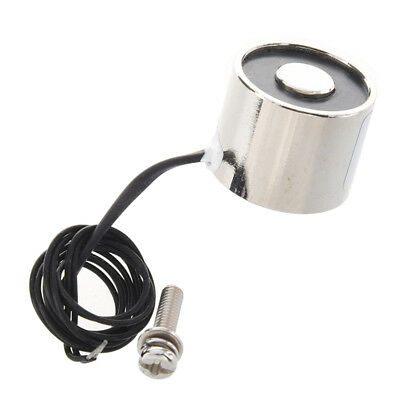

DC 12V/24V Holding Electromagnet 5kg
Atrae objetos metálicos con éste fabuloso electroimán de tamaño compacto modelo ZYE1-P25/20, de 5Kg de fuerza!. Se alimenta con 12V y consume 0.33A. Utilizado para accionar mecanismos, levantar cargas, mover objetos, etc.
COD: HTHS0267
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 13846.00
El producto no está disponible para la venta en este momento
Características
Description:
- Electromagnet.
- Powerful and compact.
- Smooth and flat Area.
- Low consumption and reliably.
- Applications: Conveyor, sorting machine, mechanical arm, experimental facility, etc.
- Input voltage: 12V DC Current consumption: 0.33A.
- Power consumption: 4W.
- Material: metal.
- Color: silver.
Specifications:
- Model: ZYE1-P25/ 20.
- thread Size: M4.
- Holding force: 11 lbs/ 5kg.
- Diameter: approx. 25 mm.
- Center Diameter: approx. 10 mm
- Height: 20 mm.
- Cable length: approx. 23 cm .
- Package: 1 x Holding Electromagnet.
