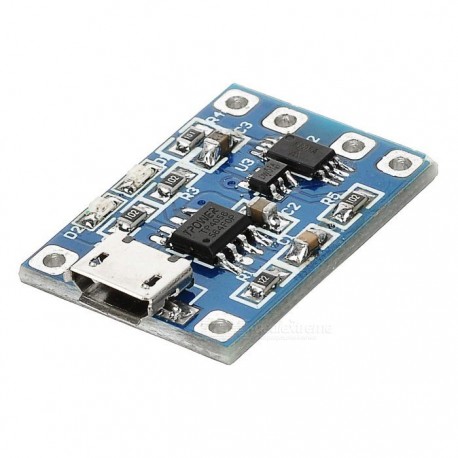

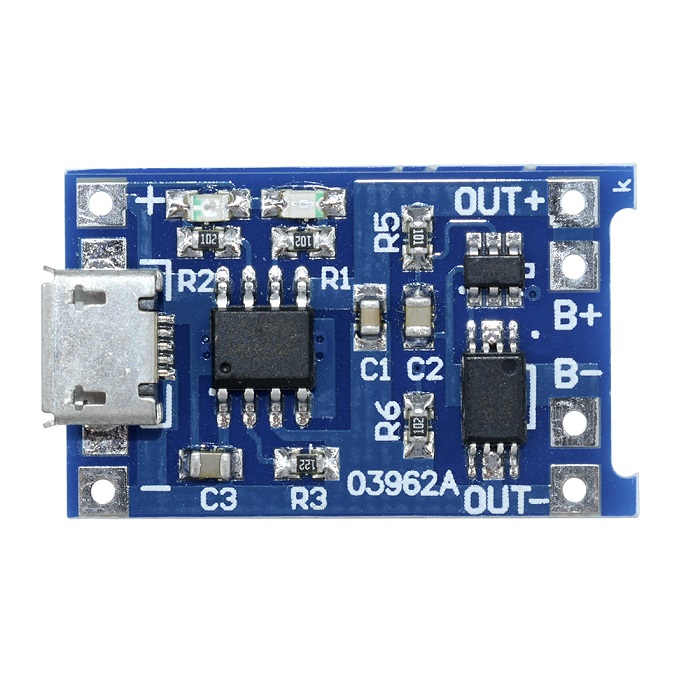

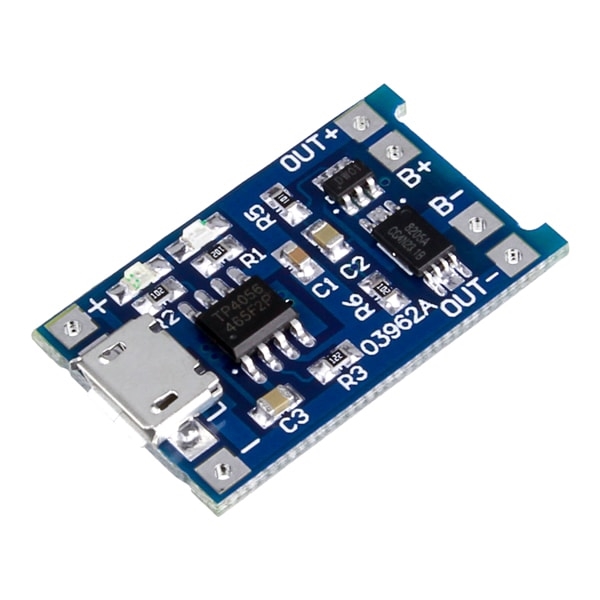

TP4056 Charging Module With Charge Protection
Cargador de baterias de tipo Li-Ion basado en el TP4056. El mismo cuenta con protección contra cortocircuitos. Posee interfaz micro-USB. Se alimenta con 5 V. Máxima corriente de carga: 1A.
COD: HTHR0140-1
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 2322.00
El producto no está disponible para la venta en este momento
Características
USB Lithium Battery Charger Module Board With Charging And Protection Features:
Input port with micro USB female, can directly use mobile charger for input to the lithium battery, and still retain the input voltage wiring solder joints, can be very convenient.

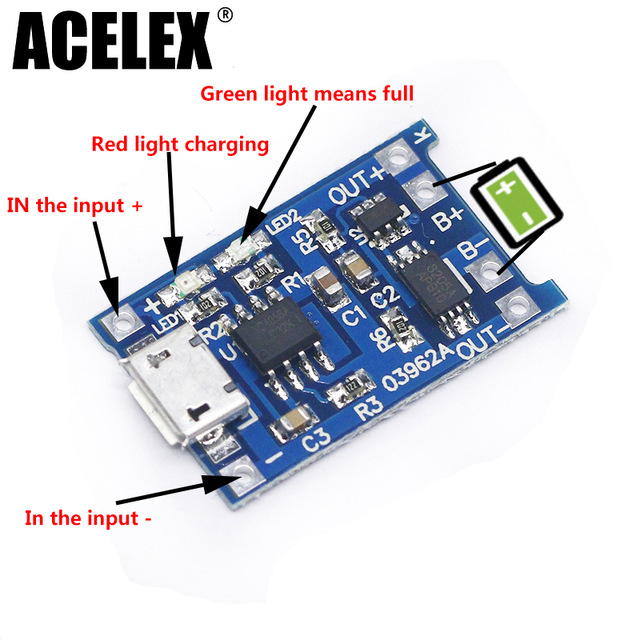

Connect the battery to B + B -, insert mobile phone charger to the USB Female then red light is charging and green is fully charged.
Specification:
- Input voltage: 5V.
- Maximum charging current: 1000 mA.
- Charge cut-off voltage: 4.2 V + / - 1%.
- Battery overcharge protection voltage: 2.5 V.
- Battery over-current protection current: 3 A.
- Input interface: Micro USB.
- Dimension: 2.6 x 1.7 cm.
Package includes:
- 1 x Charger module board.
