Productos

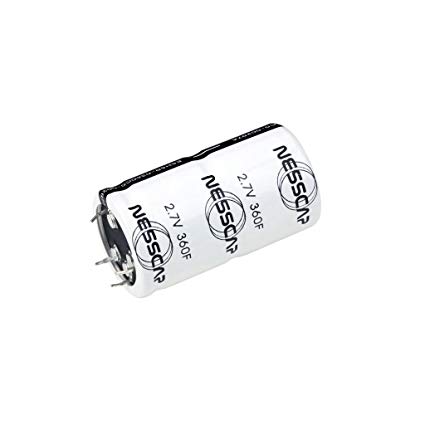

CAPACITOR EDLC 360F 2.7V
Potente supercapacitor de 360 Faradios y 2.7V. ATENCION: No cortocircuitar, no alimentar con más de 2.7V, no invertir la polaridad!
COD: BCAP0360P270S18
Peso: 0.072 Kg
Disponibilidad: En Stock
ARS 26127.00
El producto no está disponible para la venta en este momento
Características
| Manufacturer: | Maxwell Technologies Inc. | |
|---|---|---|
| Series: | BC | |
| Packaging: | Tray | |
| Part Status: | Active | |
| Capacitance: | 360F | |
| Tolerance: | 0%, +20% | |
| Voltage - Rated: | 2.7V | |
| ESR (Eq. Series Resistance): | 3.2 mOhm | |
| Termination: | PC Pins | |
| Mounting Type: | Through Hole | |
| Package / Case: | Radial, Can - Snap-In | |
| Lead Spacing: | 0.886" (22.50mm) | |
| Size / Dimension: | 1.378" Dia (35.00mm) | |
| Height - Seated (Max): | 2.520" (64.00mm) | |
| Operating Temperature: | -40°C ~ 65°C |
bcap0360_p270_s18.pdf (1091 Kb)
