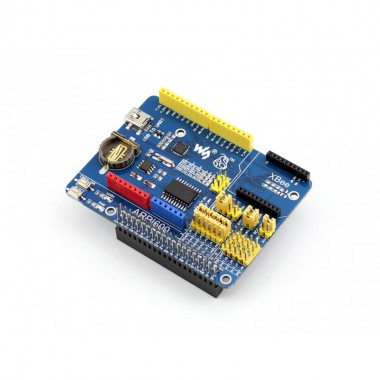

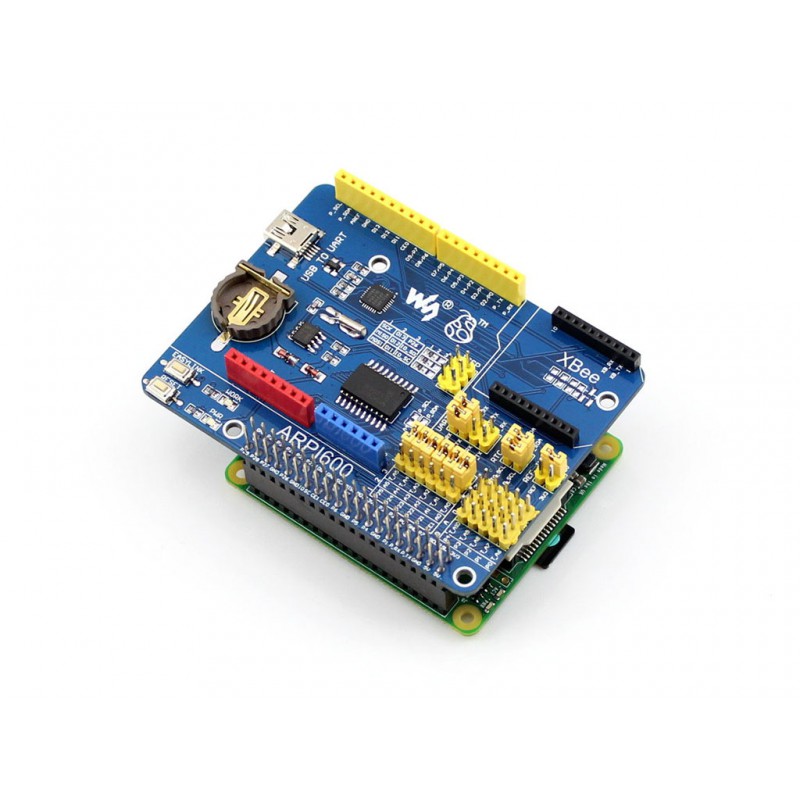

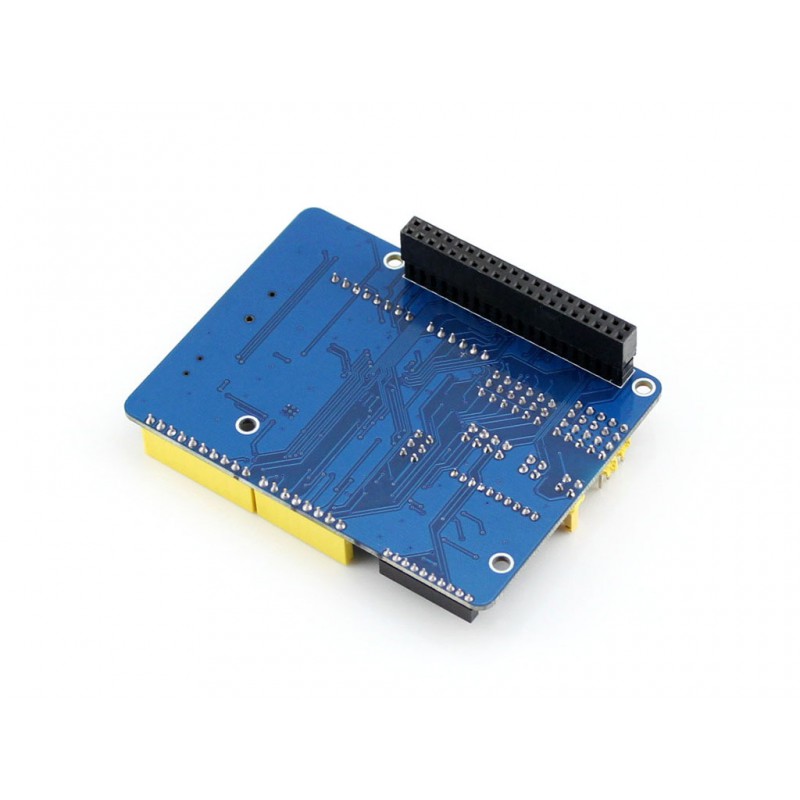

Adapter Board for Arduino and Raspberry Pi

Adapter Board for Arduino and Raspberry Pi

La ARPI600 es una muy interesante opción a la hora de querer adaptar cualquier Shield de Arduino UNO a una Raspberry Pi. Además soporta conexión de módulos XBee, cuenta también con interfaz USB, reloj RTC, selector de canales analógicos, entre una gran variedad de funciones.

COD: ARPI600

Peso: 0.070 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 51174.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview:

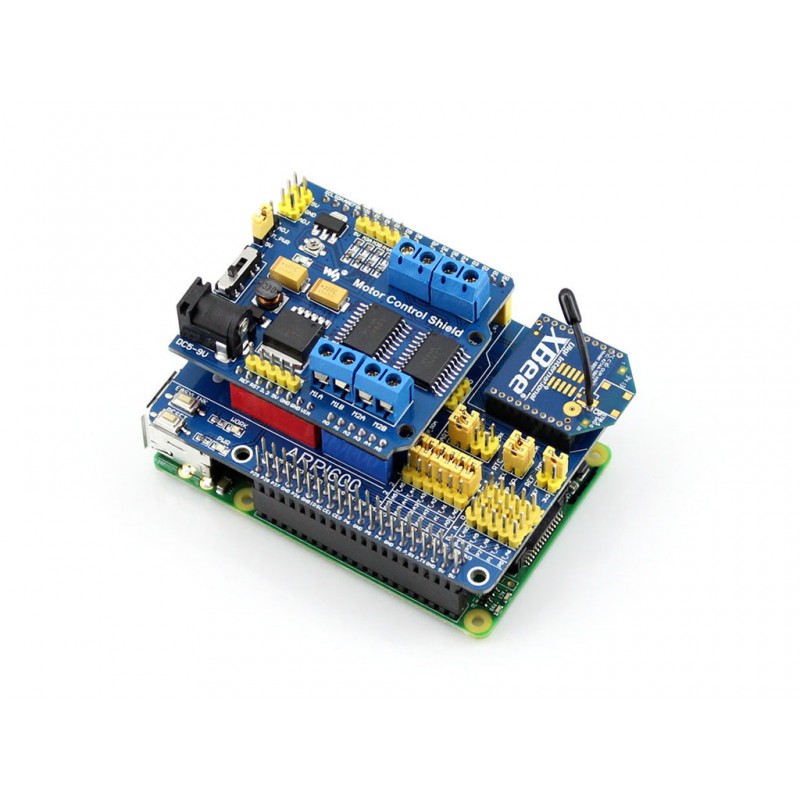

Arduino is a massive ecosystem, if there's a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.

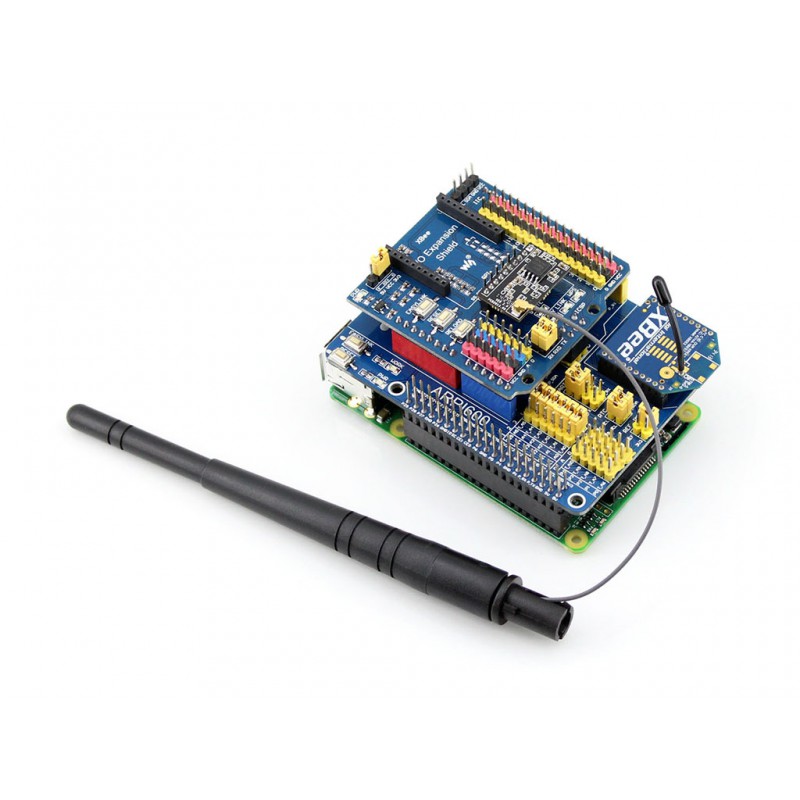

What's more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.

Supported Pi:

  • Raspberry Pi 1 Model A+
  • Raspberry Pi 1 Model B+
  • Raspberry Pi 2 Model B
  • Raspberry Pi 3 Model B
  • Raspberry Pi 3 Model B+

ARPI600 Features:

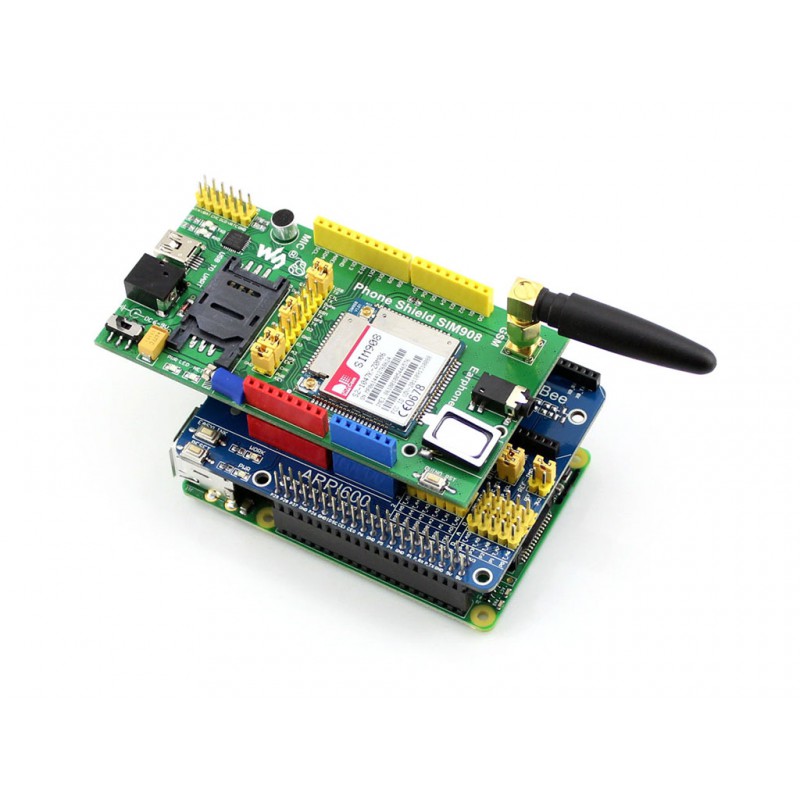

  • Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
  • XBee connector for connecting various XBee modules

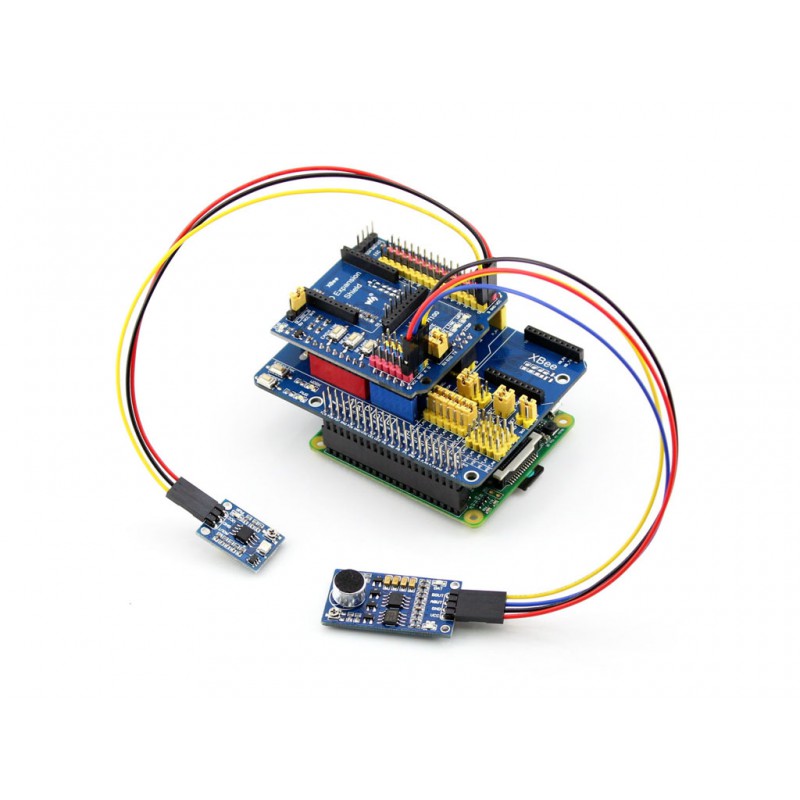

  • Sensor interface for connecting various sensors
  • Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
  • Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
  • Onboard RTC

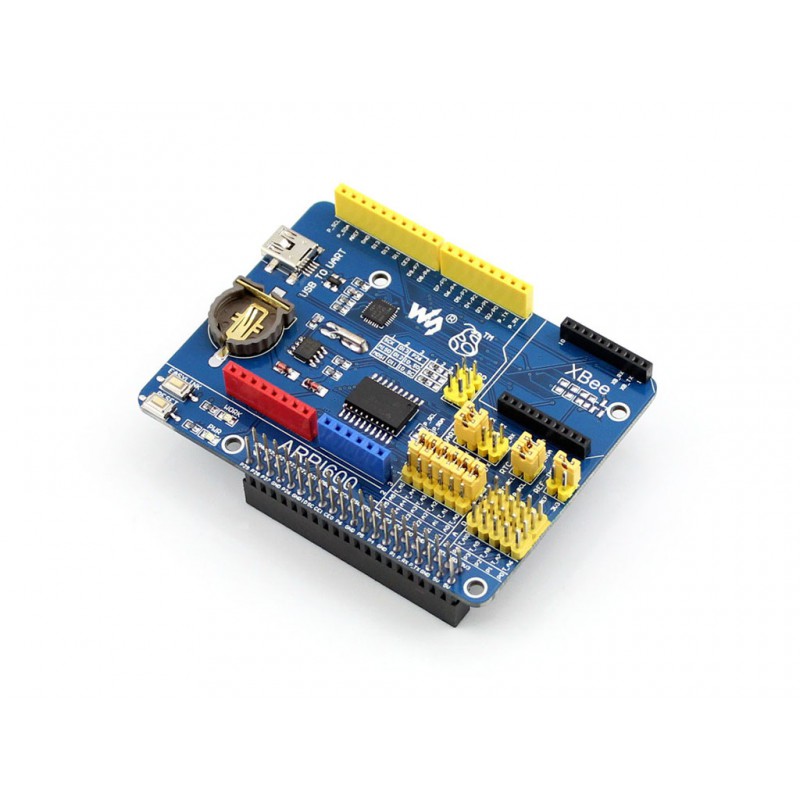

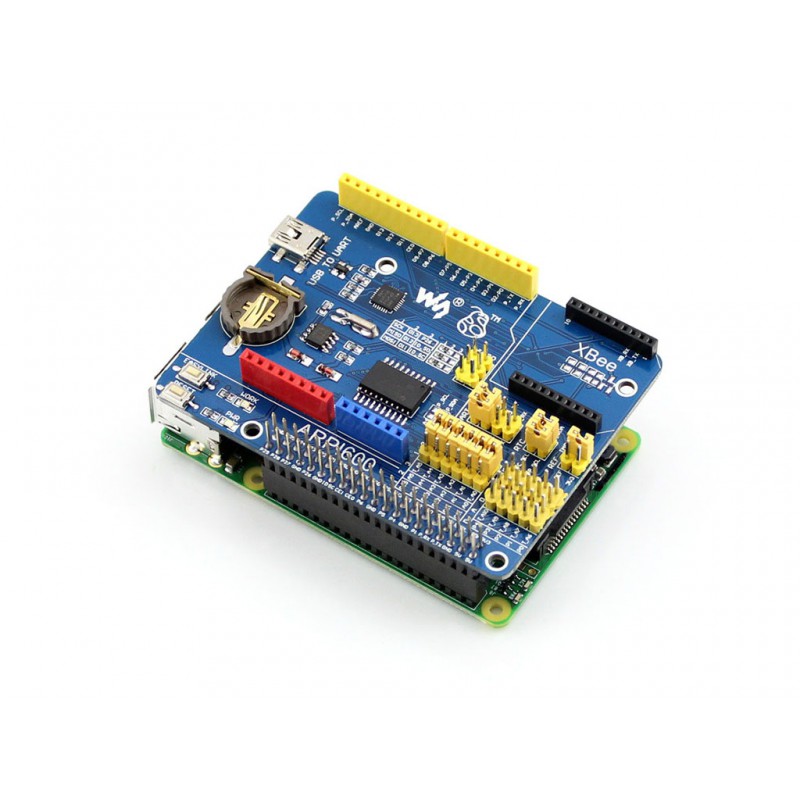

What's on the ARPI600:

Raspberry Pi Expansion Board on board resource

  1. Arduino connector : for connecting Arduino shields
  2. ICSP interface : Arduino ICSP
  3. XBee connector : for connecting XBee communication modules
  4. Sensor interface : for connecting sensors
  5. Raspberry Pi connector : for connecting Raspberry Pi
  6. USB TO UART
  7. TLC1543 : AD converter
  8. PCF8563 : RTC
  9. CP2102
  10. 32.768KHz crystal : for RTC
  11. Power indicator
  12. XBee state LED
  13. XBee and Arduino interface RESET button
  14. XBee EASYLINK button
  15. RTC battery holder : for CR1220 button battery
  16. TLC1543 reference voltage configuration jumper
  17. RTC jumper
  18. UART jumper
    • when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
    • when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
    • when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
  19. Arduino AD selection jumper
    • short 2 and 3 : Arduino A0-A5 as AD input
    • short 1 and 2 : Arduino A0-A5 as digital control
  20. Arduino I2C selection jumper
    • short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
  21. Arduino SPI selection jumper
    • short 1 and 2 : Arduino D11-D13 as SPI control (default)
    • short 2 and 3 : Arduino D11-D13 as digital control



Development Resources:

Wiki : www.waveshare.com/wiki/ARPI600

ARPI600 Dimension:
