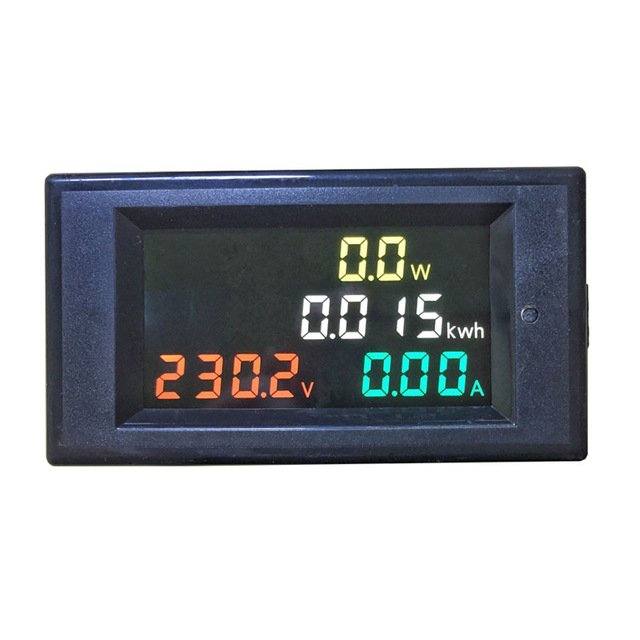

AC80.0-300.0V 0.01-100A AC Voltmeter Ammeter Power Energy Meter

AC80.0-300.0V 0.01-100A AC Voltmeter Ammeter Power Energy Meter

Medidor de Energía eléctrica para Corriente Alterna (AC). Muestra parámetros como tensión (VAC), Corriente (AC) , Potencia Activa (W), y consumo en KWh. Ideal para monitoreo y control. Rango: 80.0-300.0V (AC) , 0-99.99A (AC), 0-45000W. De tamaño compacto.

COD: HTHS0490

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 45242.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:



1. Accuracy: 1%  2 words.

2. Range:

  • AC voltage: AC 80.0-300.0V.
  • AC current: AC 0-99.99A, minimum resolution is 0.01A.Display 100.0A when the current is over 100A.
  • Active power: 0-45000W. resolution is 0.1W (< 0-9999.9W ), otherwise Minimum resolution is 1W.
  • Electric energy: 0-9999999Kwh.

                                  0-9999.999kwh minimum resolution is 0.001kwh

                                  10000.00-99999.99kwh minimum resolution is 0.01kwh

                                  100000.0-999999.9kwh minimum resolution is 0.1kwh

                                   The rest minimum resolution is 1Kwh.

3. Speed: 2 times per second.

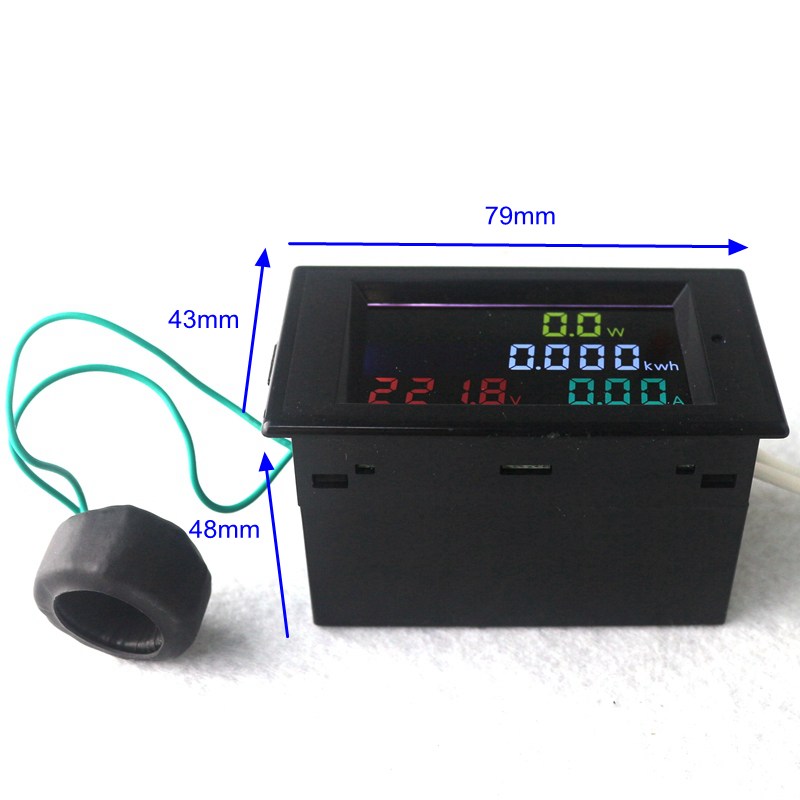

4. Size: 79x43x48mm.

5. Installation Size: 76*39mm.

6. Auto-saving: when power off, the electric energy will be saved. The saved electric energy will be accumulated continue when the meter power-on next time.





Wire Connection:

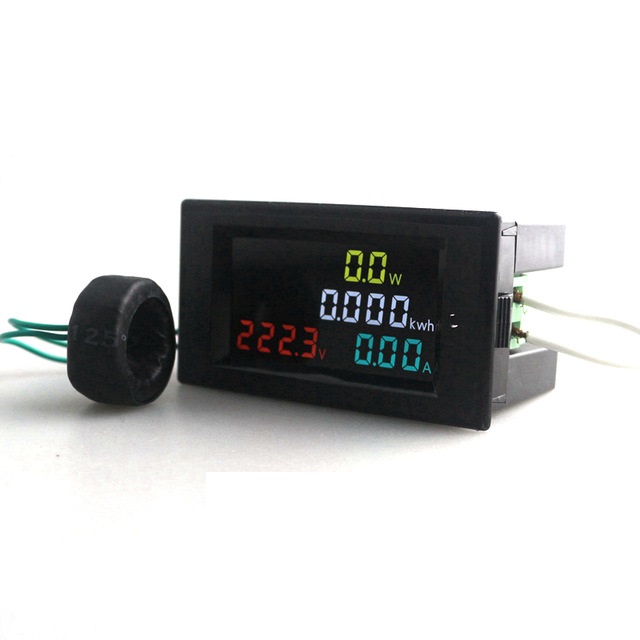

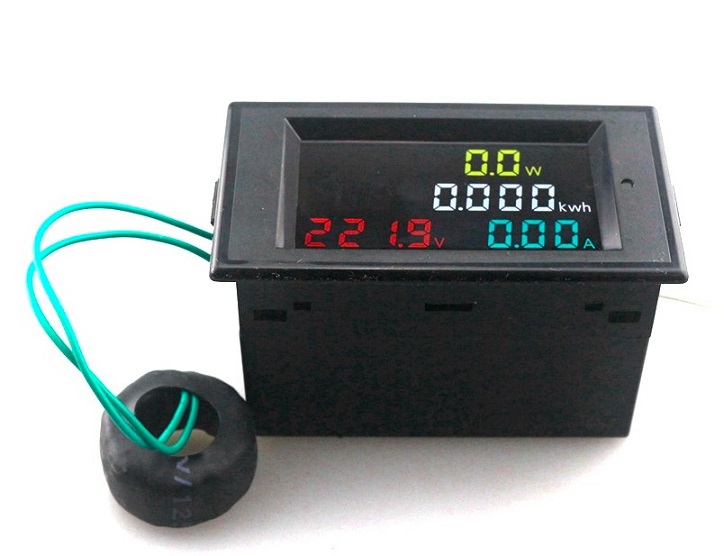

1. According to connection graph, connect the green wire of secondary current transformer to the blue terminal of meter and make the wire of measurement circuit through the hole in the current transformer.
2. Supply power and start to measure and display the result.
3. Press down the button on the panel last for 5 second, the electric energy will to be zero.
