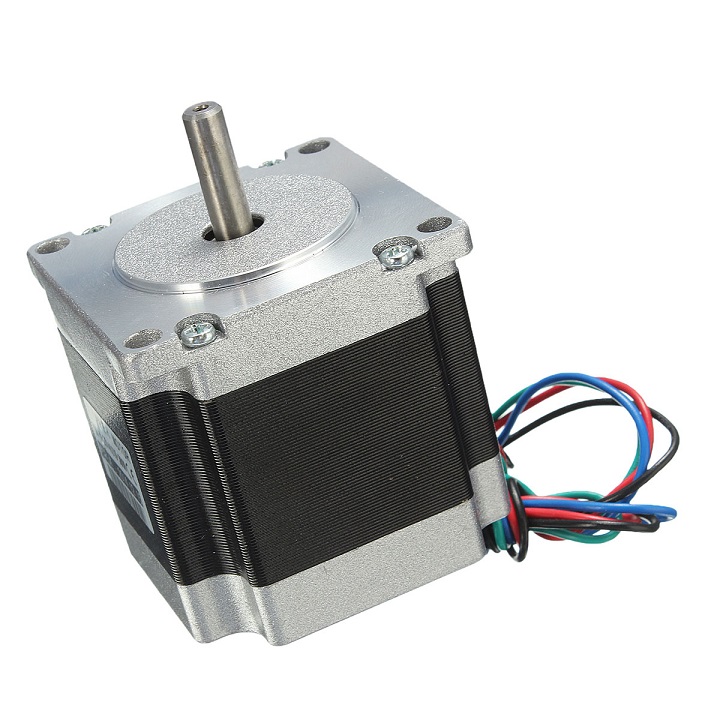

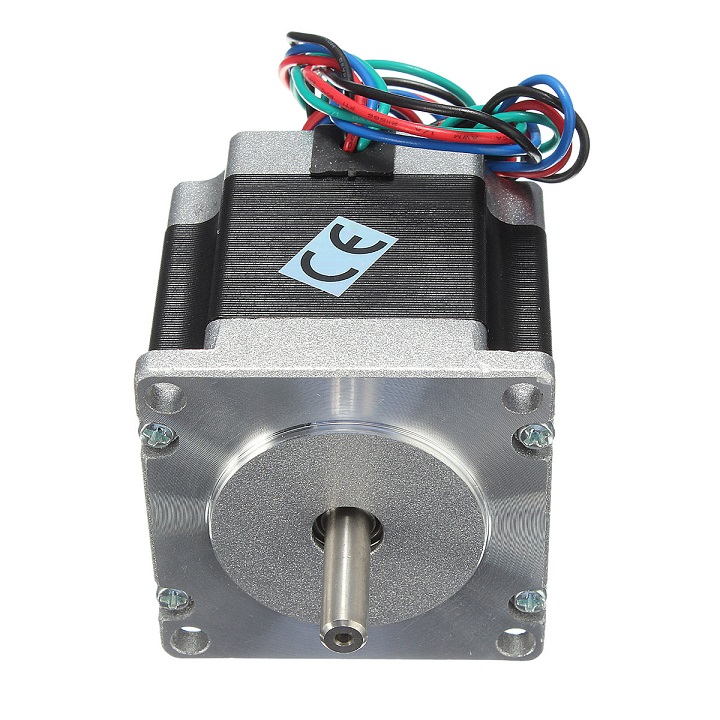

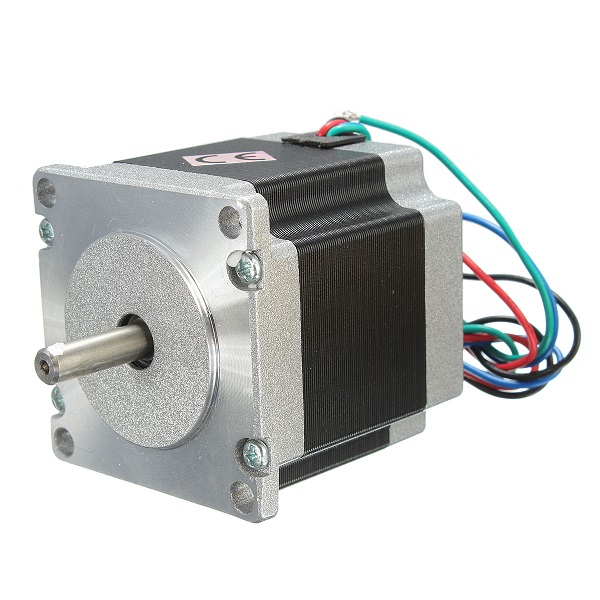

Stepper Nema 23 Single Shaft 12.6Kgcm 1.8Degre 4 Leads 56mm SC57STH56 -2804A
Motor paso a paso NEMA 23 (SC57STH56 -2804A) de torque 12.6 kg/cm. Ideal para sistemas CNC como cortadoras láser, grabadores o impresoras 3D. Tiene un ángulo de paso de 1.8º (200 pasos por vuelta).
COD: HTHS0475
Peso: 0.680 Kg
Disponibilidad: En Stock
ARS 56544.00
El producto no está disponible para la venta en este momento
Características
Description:
- Medical industry: Biochemical analyzer, blood cell analyzer.
- Textile industry: Flat knitting machine, circular knitting machine, bobbin winder.
- Advertising industry: Laser machine, engraving machine, marking machine, inkjet printer.
- Industrial automation industry: Semiconductor testing equipment, winding machine, stripping machine.
- Water treatment industry: Screw pump.
- Bank equipment: ATM
- Others: Metro fare collection system, etc.
General Specification:
- Step Angle:1.8 degree.
- Temperature: 80℃ max.
- Ambient Temperature: -20℃~+50℃.
- Insulation Resistance: 100MΩ Min. 500.VDC.
- Dielectric Strength: 500VDC for 1 minute.
- Shaft Radial Play: 0.02Max.(450g-load).
- Shaft Axial Play: 0.08Max.(450g-load).
- Max.radial force: 75N(20mm from th flange).
- Max. axial force: 15N.
Electrical Specification:
- Motor Length: 56mm.
- Rate Current: 2.8A.
- Voltage: 2.5V.
- Phase resistance: 0.9Ω.
- Phase inductance: 2.5mH.
- Holding Torque: 12.6kg.cm.
- Lead Wire NO. : 4.
- Detent Torque: 0.4kg.cm.
- Rotor Inertia: 300g.cm.
- Motor Weight: about 0.7kg.
Electrical Specification:
Model No. | Motor L | Rated Volt |
Current /Phase |
Resist /Phase |
Induct /Phase |
Hold Torque | # of Leads | Detent Torque | Rotor Inertia | Mass | |
Single shaft | mm | V | A | Ω | mH | kg.cm | No. | kg.cm | g.cm | Kg | |
SC57STH41-1006A | 41 | 5.7 | 1.0 | 5.7 | 5.4 | 3.9 | 6 | 0.21 | 120 | 0.45 | |
SC57STH41-2006A | 41 | 2.8 | 2.0 | 1.4 | 1.4 | 3.9 | 6 | 0.21 | 120 | 0.45 | |
SC57STH41-3006A | 41 | 1.9 | 3.0 | 0.63 | 0.6 | 3.9 | 6 | 0.21 | 120 | 0.45 | |
SC57STH41-2804A | 41 | 2.0 | 2.8 | 0.7 | 1.4 | 5.5 | 4 | 0.21 | 120 | 0.45 | |
SC57STH45-2504A | 45 | 2.5 | 2.5 | 1.0 | 2.2 | 8.0 | 4 | 0.28 | 190 | 0.5 | |
SC57STH51-1006A | 51 | 6.6 | 1.0 | 6.6 | 8.2 | 7.2 | 6 | 0.36 | 275 | 0.65 | |
SC57STH51-2006A | 51 | 3.3 | 2.0 | 1.65 | 2.2 | 7.2 | 6 | 0.36 | 275 | 0.65 | |
SC57STH51-3006A | 51 | 2.2 | 3.0 | 0.74 | 0.9 | 7.2 | 6 | 0.36 | 275 | 0.65 | |
SC57STH51-2804A | 51 | 2.3 | 2.8 | 0.83 | 2.2 | 10.1 | 4 | 0.36 | 275 | 0.65 | |
SC57STH56-1006A | 56 | 7.4 | 1.0 | 7.4 | 10 | 9.0 | 6 | 0.4 | 300 | 0.7 | |
SC57STH56-2006A | 56 | 3.6 | 2.0 | 1.8 | 2.5 | 9.0 | 6 | 0.4 | 300 | 0.7 | |
SC57STH56-3006A | 56 | 2.3 | 3.0 | 0.75 | 1.1 | 9.0 | 6 | 0.4 | 300 | 0.7 | |
SC57STH56-2804A | 56 | 2.5 | 2.8 | 0.9 | 2.5 | 12.6 | 4 | 0.4 | 300 | 0.7 | |
SC57STH76-1006A | 76 | 8.6 | 1.0 | 8.6 | 14 | 13.5 | 6 | 0.68 | 480 | 1.0 | |
SC57STH76-2006A | 76 | 4.5 | 2.0 | 2.25 | 3.6 | 13.5 | 6 | 0.68 | 480 | 1.0 | |
SC57STH76-3006A | 76 | 3.0 | 3.0 | 1 | 1.6 | 13.5 | 6 | 0.68 | 480 | 1.0 | |
SC57STH76-2804A | 76 | 3.2 | 2.8 | 1.13 | 3.6 | 18.9 | 4 | 0.68 | 480 | 1.0 | |
SC57STH82-3004A | 82 | 3.8 | 3.0 | 1.25 | 5 | 22 | 4 | 0.9 | 600 | 1.1 | |
SC57STH82-4204A | 82 | 2.5 | 4.2 | 0.6 | 2.6 | 22 | 4 | 0.9 | 600 | 1.1 | |
SC57STH97-3004A | 97 | 4.2 | 3.0 | 1.4 | 5.5 | 25 | 4 | 1.0 | 680 | 1.4 | |
SC57STH97-4204A | 97 | 3.4 | 4.2 | 0.8 | 3.0 | 25 | 4 | 1.0 | 680 | 1.4 | |
SC57STH112-3004A,shaft Dia.φ8 | 112 | 4.8 | 3.0 | 1.6 | 6.8 | 30 | 4 | 1.4 | 800 | 1.6 | |
SC57STH112-4204A,shaft Dia.φ8 | 112 | 3.8 | 4.2 | 0.9 | 3.8 | 30 | 4 | 1.4 | 800 | 1.6 |
We also manufacture products according to customer’s requirement.
