CNC Shield v4
Nueva version del shield de Arduino para control CNC o impresión 3D. Brinda capacidad para 3 drivers A4988 y posee un slot compatible con Arduino Nano. Compatible con GRBL.
COD: HTHR0657
Peso: 0.033 Kg
Disponibilidad: En Stock
ARS 15590.00
El producto no está disponible para la venta en este momento
Características
Introduction:

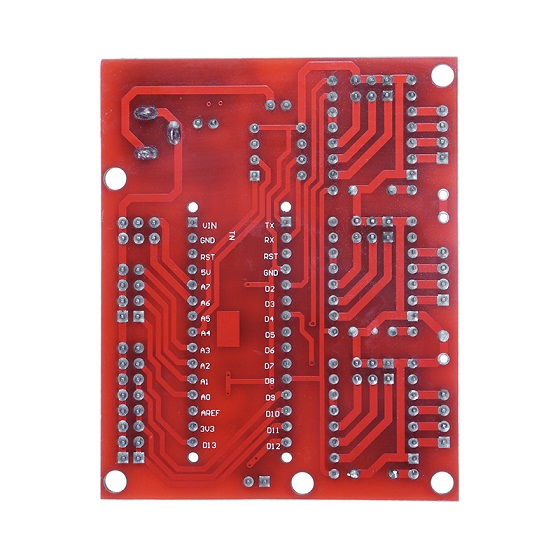

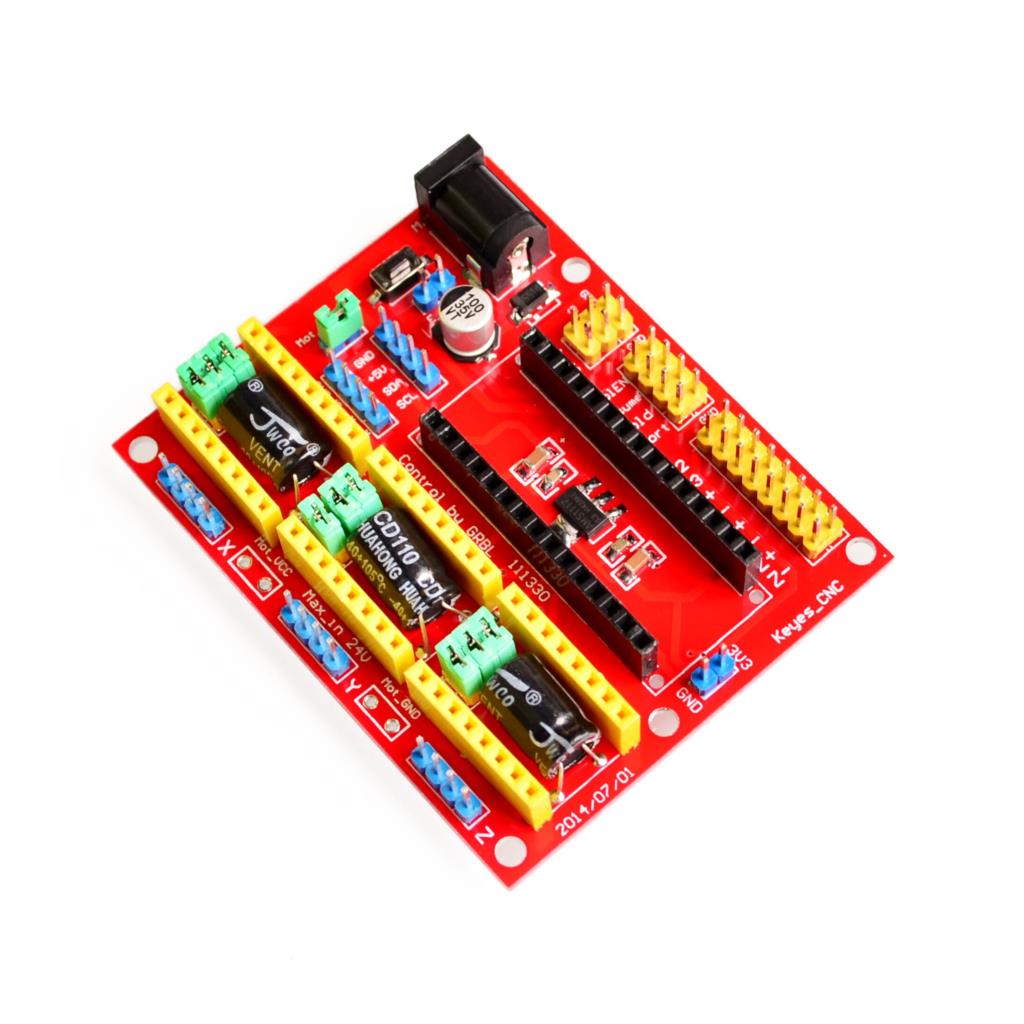

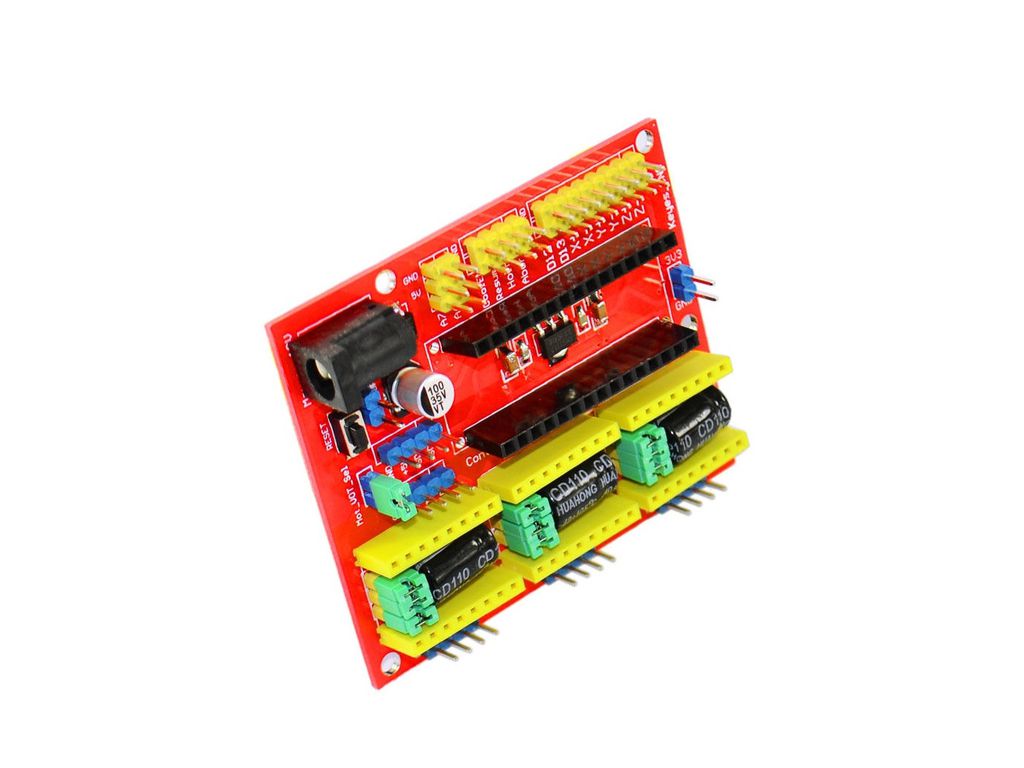

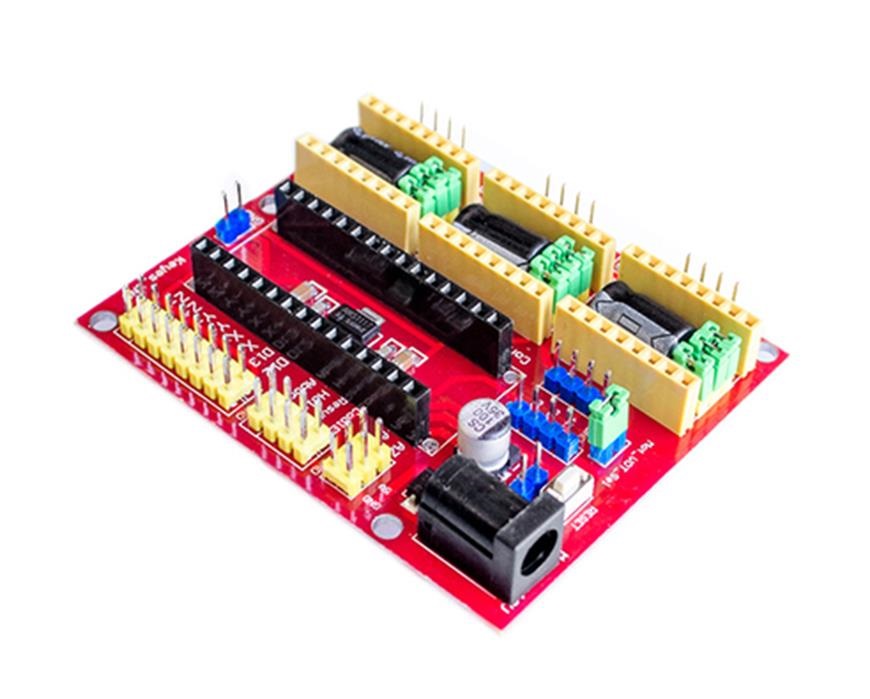

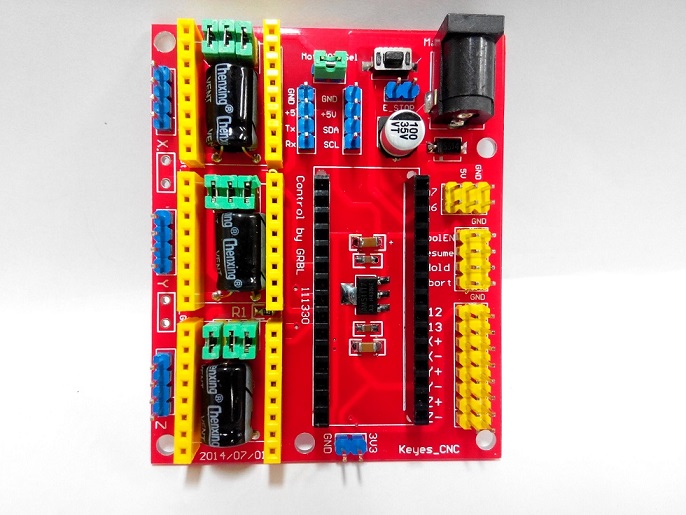

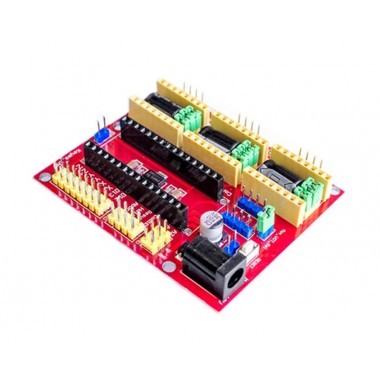

CNC Shield V4:
CNC shield v4.0 needs to work with Arduino nano ch340 . It can be used as driver expansion board for engraving machines. It has in total 3 channel slots for A4988 stepper motor driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.
Specification:
1.3 axis stepper motor driver.
2.Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine.
3.2A can be controlled within the two-phase four-wire stepper motor.
4.Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
5.Released the I2C interface, you can connect to the LCD I2C or other I2C module.
6.power DC5v interface, 7.5-12V voltage input.
7.GRBL compatible.
8.Worked with arduino nano.
Application:
- 3D Printer.
- Engraving machines.
Kit list:
1x CNC Shield V4.0.
