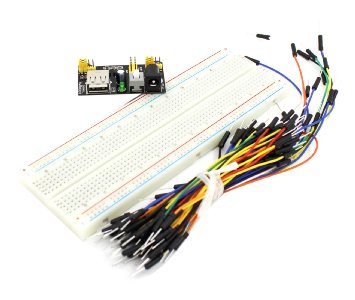

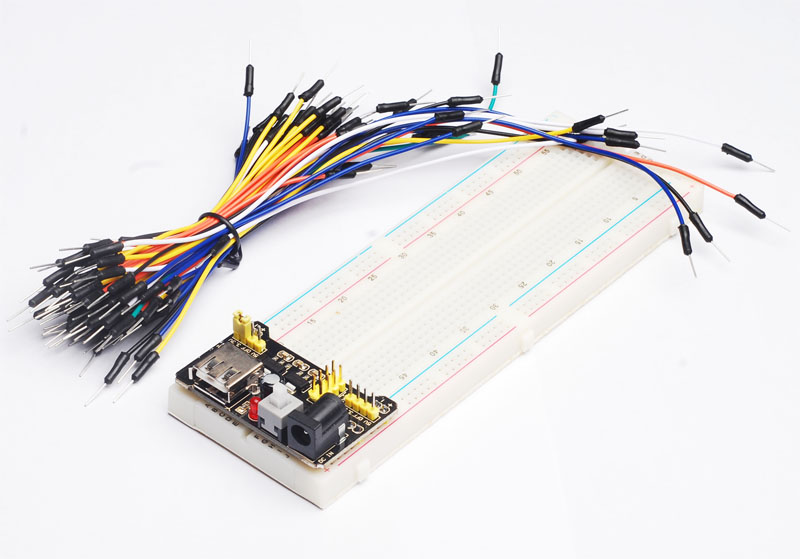

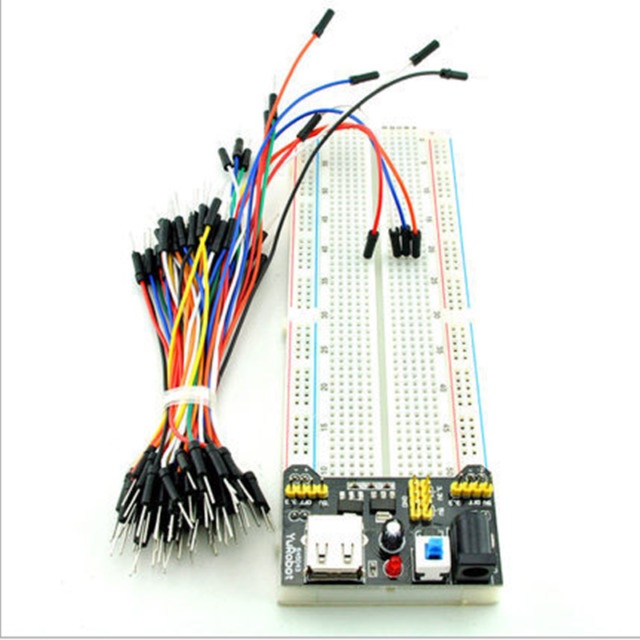

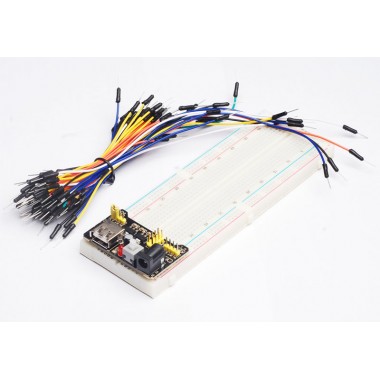

MB102 Breadboard Module + 830 Holes Breadboard + 65pcs Jumper Wire
Interesante Kit para experimentación en proyectos de electrónica y Arduino. El mismo incluye una Protoboard de 830 puntos, una fuente de alimentación con salida de 5v y 3.3v compatible con la protoboard, y 65 cables macho-macho para realizar conexionados.
COD: HTHR0257
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 7813.00
El producto no está disponible para la venta en este momento
Características
Description:
MB-102 830 Point Solderless PCB Breadboard:
- Quantity: 1 Pc.
- Model: MB-102.
- Dimension: 16.7 x 5.7 x 1cm.
- Tie Points: 830 tie points (consists of: 630 tie-point terminal strip, 200 tie-point distribution strips).
- Matrix: 126 separate 5 point terminals, plus 4 horizontal bus lines (Power Lines) of 50 test points each.
- Wire size: Suitable for 20~29 AWG (0.3mm ~ 0.8mm) wires.
MB-102 Power Supply Module:
- Input voltage: 6.5V ~ 12 V DC / USB power supply.
- Output voltage: 3.3V / 5V can switch over.
- Maximum output current: <700mA.
- Fluctuation two road independent control, can switch over to 0V, 3.3V, 5V.
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
- Size: 5.3 x 3.2 x 2.5cm.
Note: If using the USB can not work, please use DC power.
Jump Cable Wires:
- Breadboard jumper cable wires.
- Typically used for electronics projects.
- Wires are flexible, durable, reusable, easy to trace.
- Easy to connect and disconnect.
- Quantity: 65 Pcs.
Package included:
- 1 x MB-102 Solderless Breadboard.
- 1 x MB-102 Breadboard Power Supply.
- 65 x Breadboard Jumper Cables.
