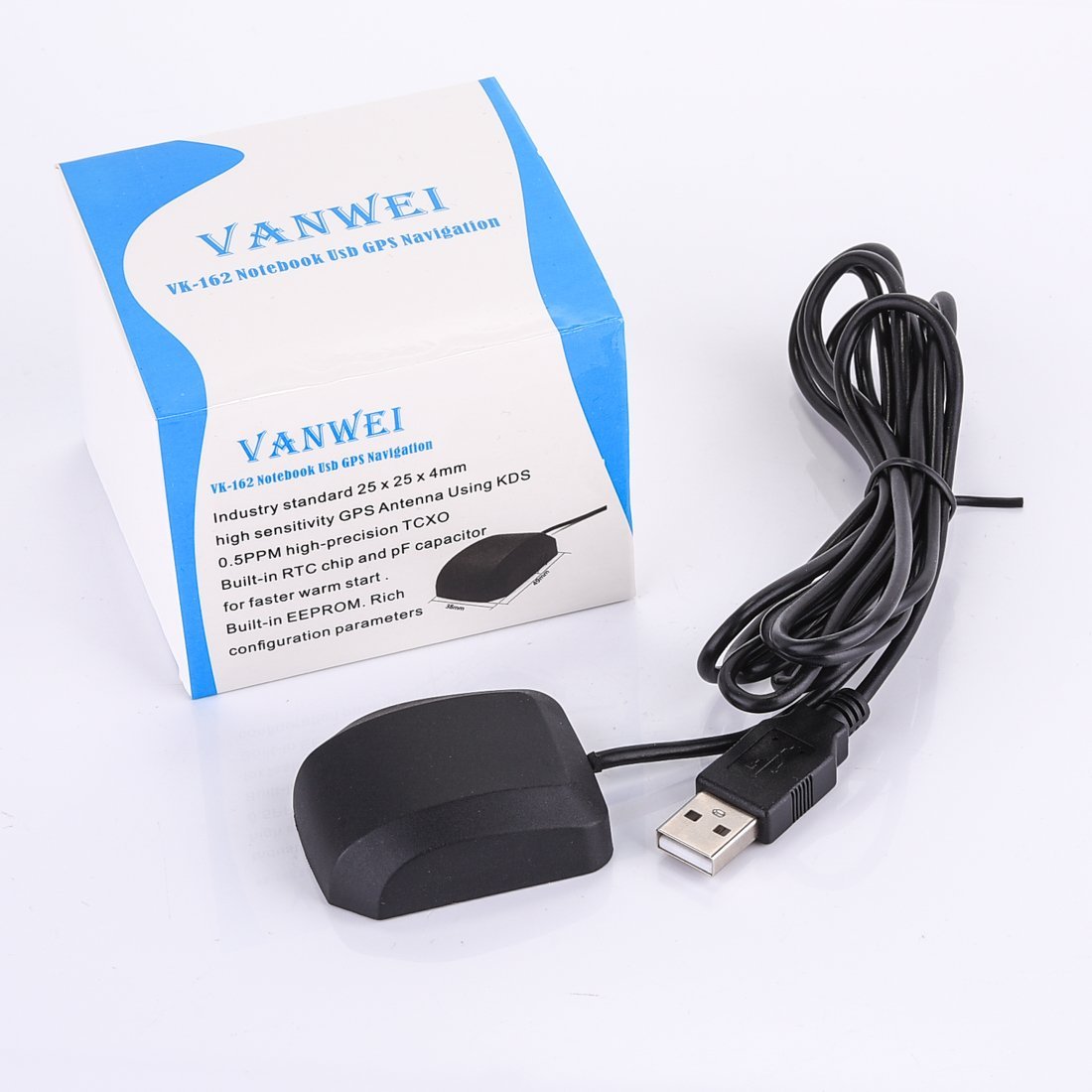

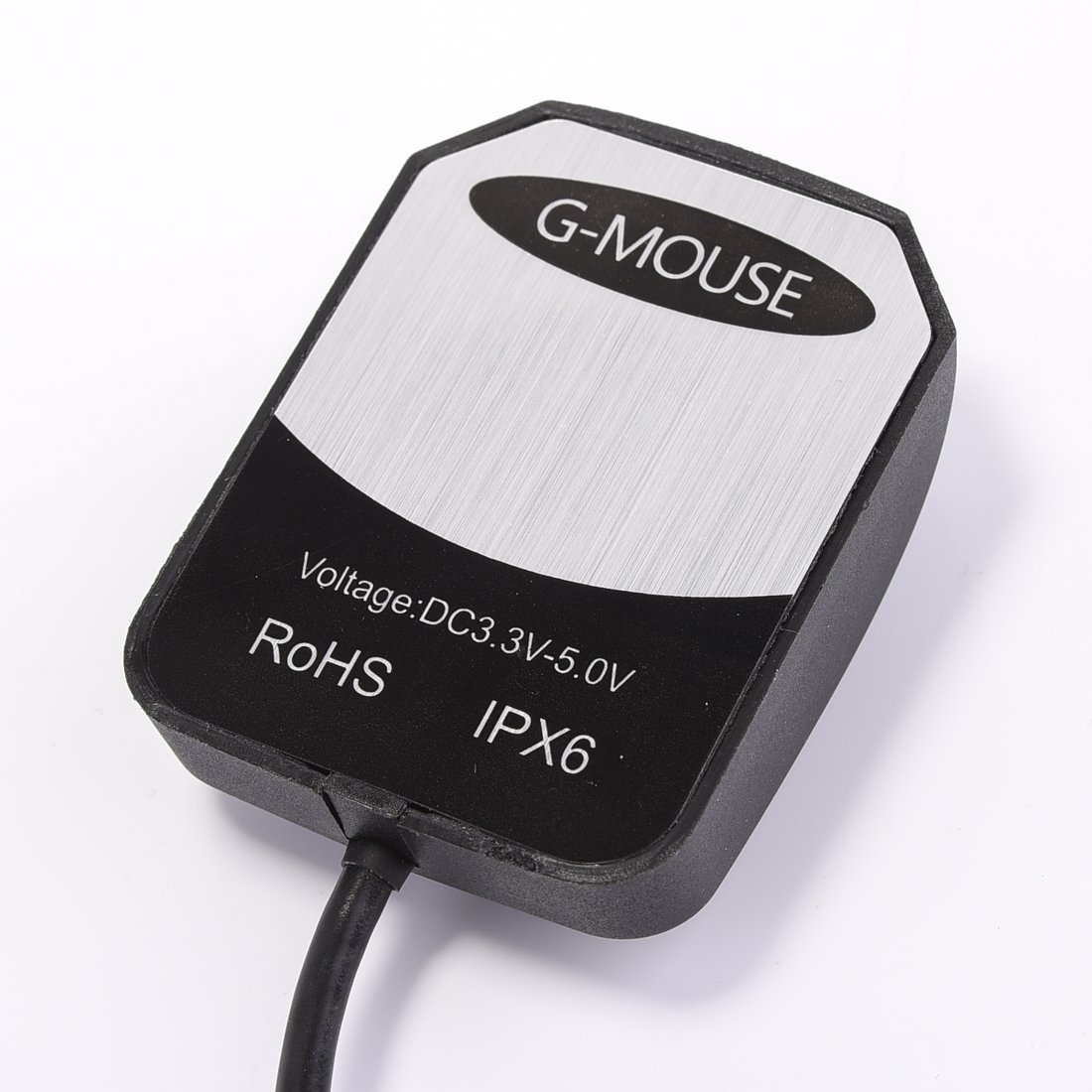

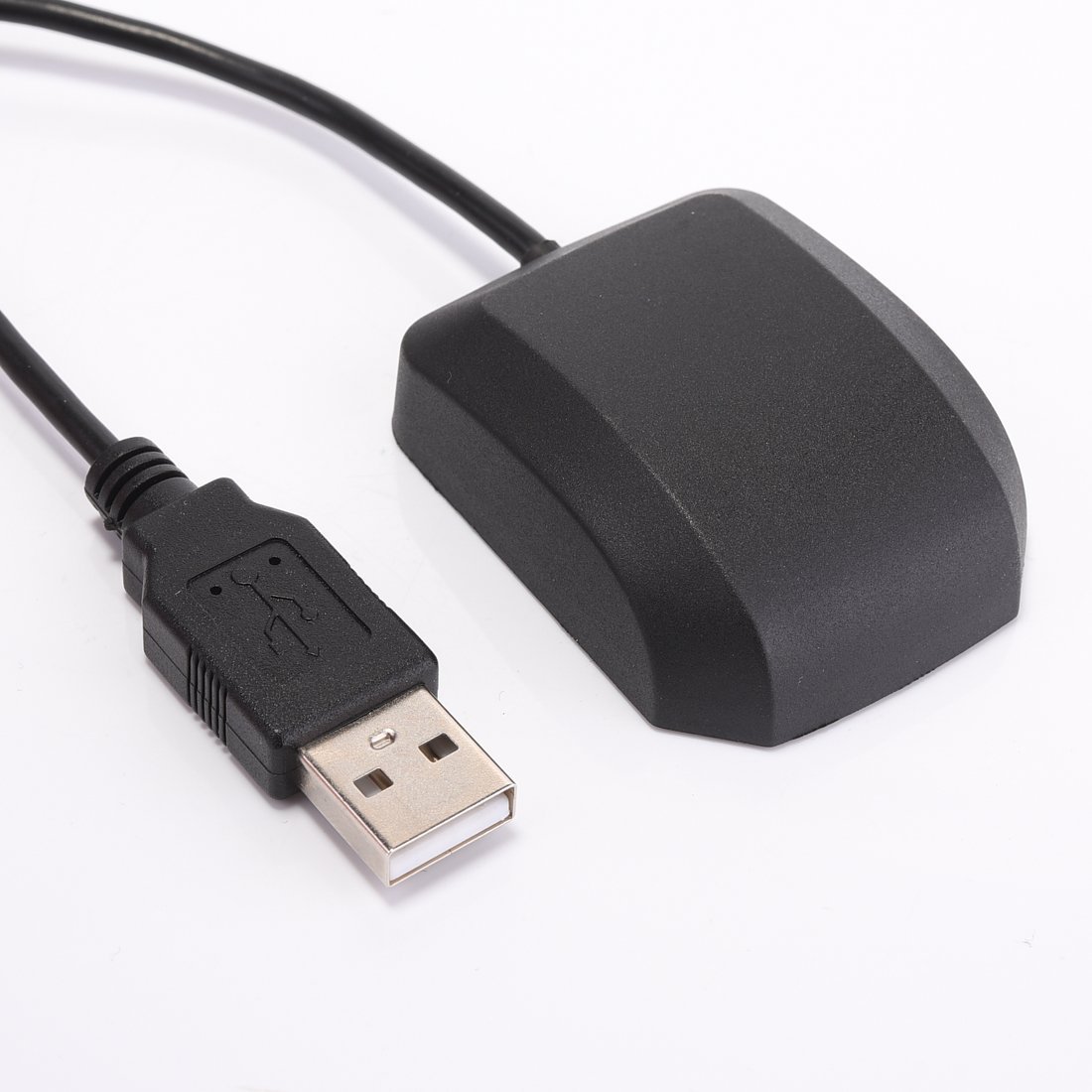

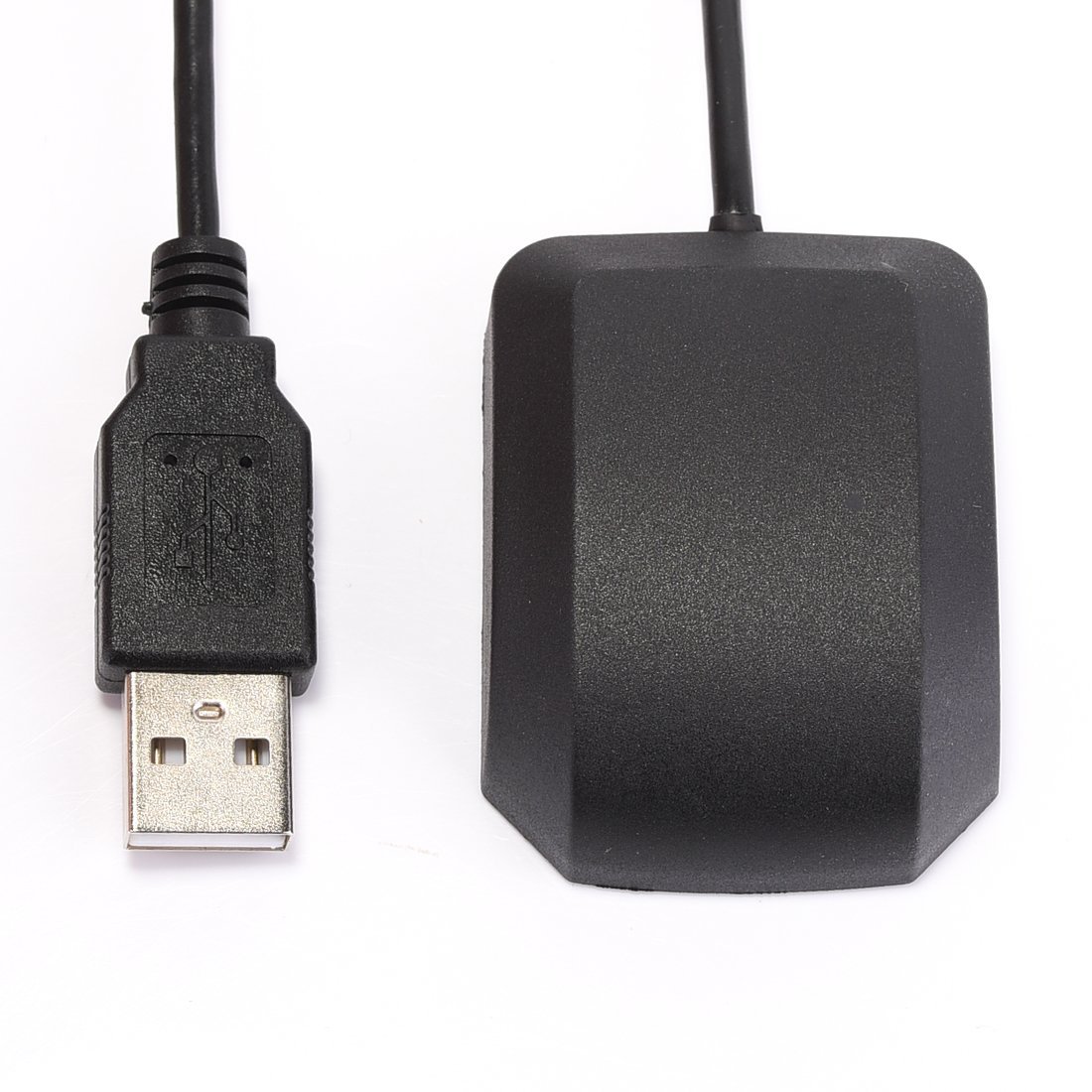

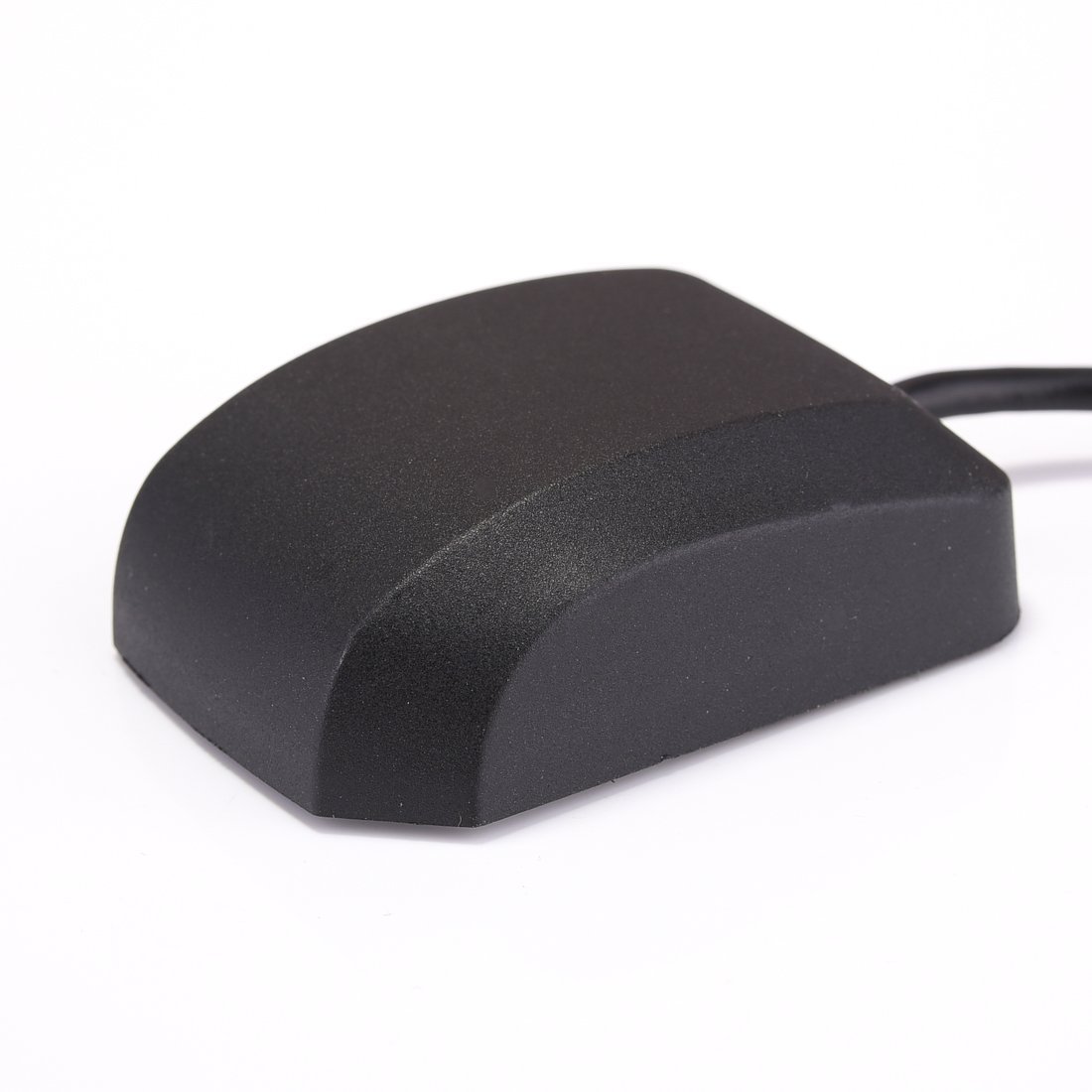

VK-162 USB GPS Navigation Module
Receptor GPS de alta precisión paea ser aplicado en vehículos, sistemas de seguridad, topografía y en aplicaciones relacionadas a la agricultura. Posee interfaz USB.
COD: HTHR0664
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 39476.00
El producto no está disponible para la venta en este momento
Características
Description:
VK-162, is a complete GPS receiver. Built-in satellite receiver antenna, satellite receiver core using the most advanced core UBLOX positioned to provide highly accurate positioning information, it is also able to meet the stringent requirements of industrial positioning and personal use as needed. Scope from the car navigation, security systems, map making and survey to agricultural uses. Built-in button-type battery for storing satellite data such as satellite signal status, location and time of the last previously used to increase the positioning speed boot time. Built-in WAAS / EGNOS demodulator without additional hardware can receive WAAS / EGNOS signals. Support NMEA0183 3.01 version of the output data format.
Feature:
Electrical properties of the interface: Wide voltage range: the main power supply is + 3 3 V ~ + 5 V
Operating temperature: - 4 0 ℃ t o + 8 5 ℃
- C / A code, 1.023 MHz band receiving stream: L1 [575.42MHz]
- Receive Channel: 56CH
- Rate:
- Direction:
- Timing accuracy: 30ns.
- Reference coordinate system: WGS-84.
- The maximum height of altitude: 50,000 m.
- Maximum speed: 500 m / s.
- Acceleration:
Package included:
