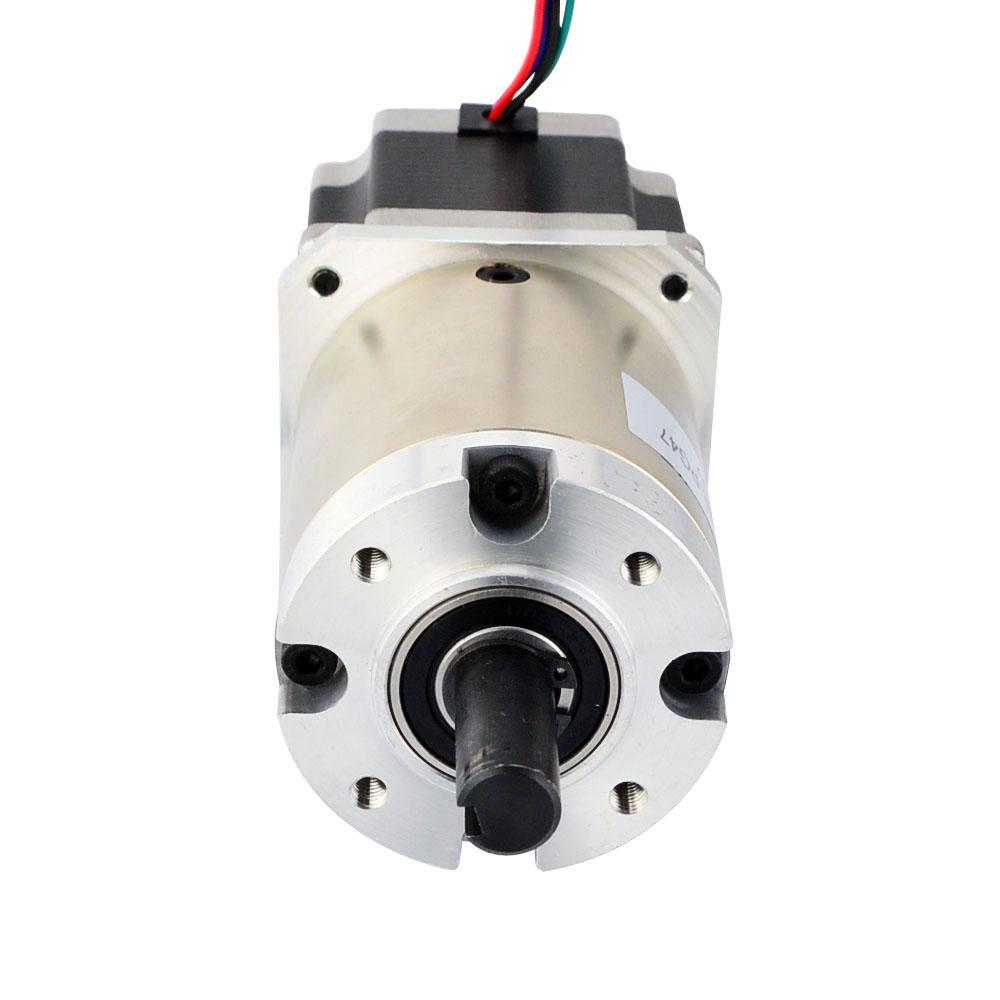

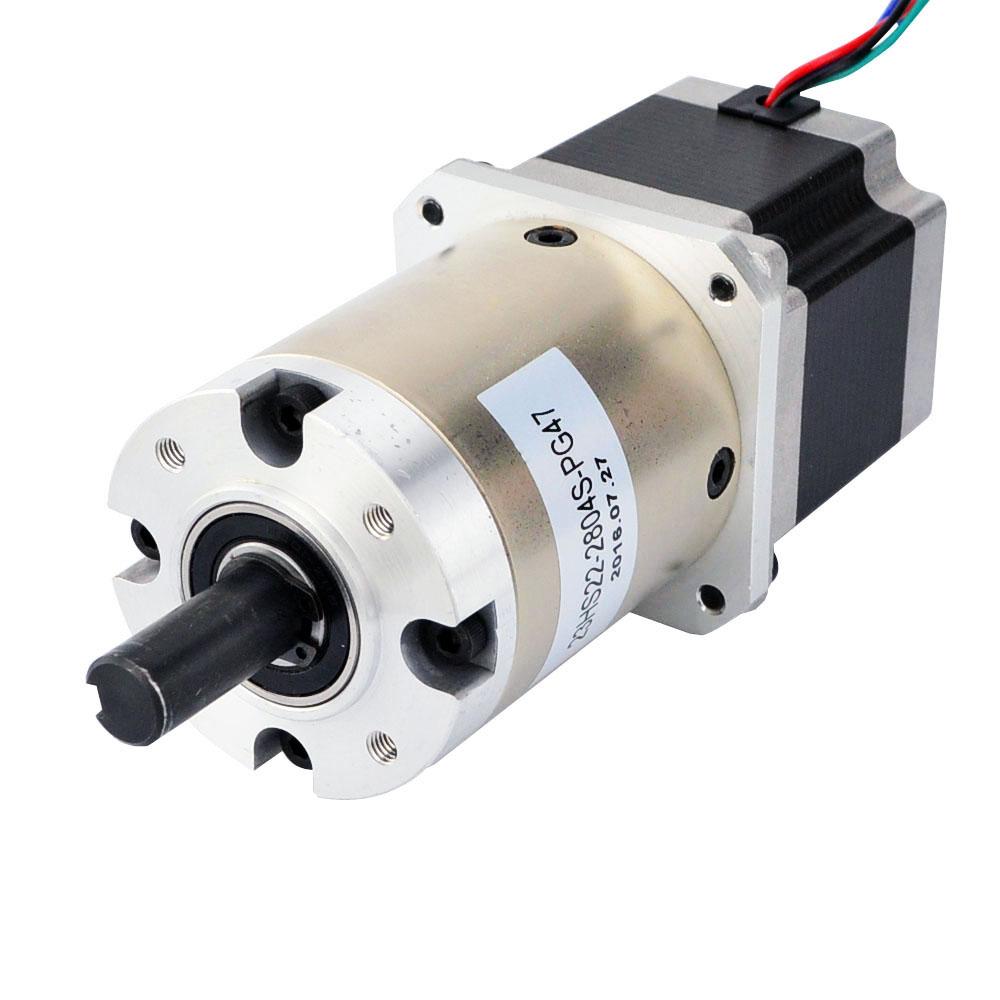

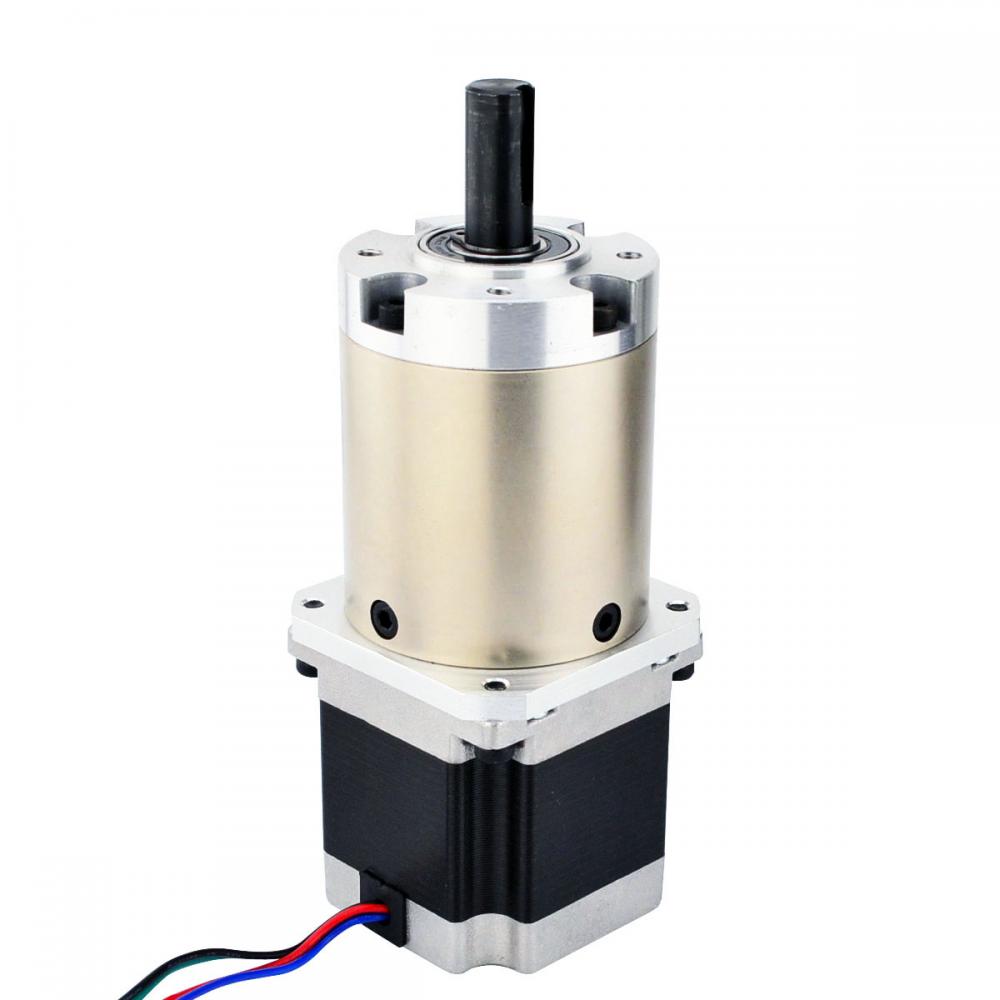

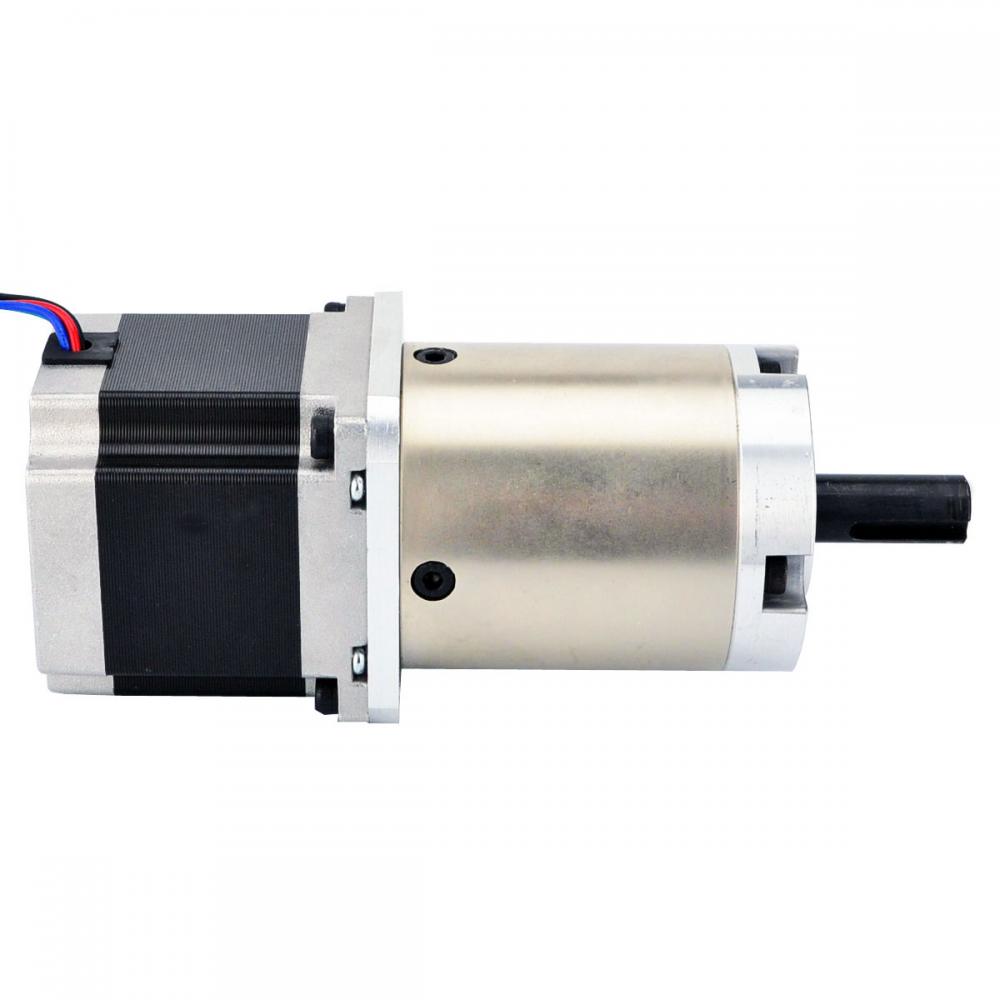

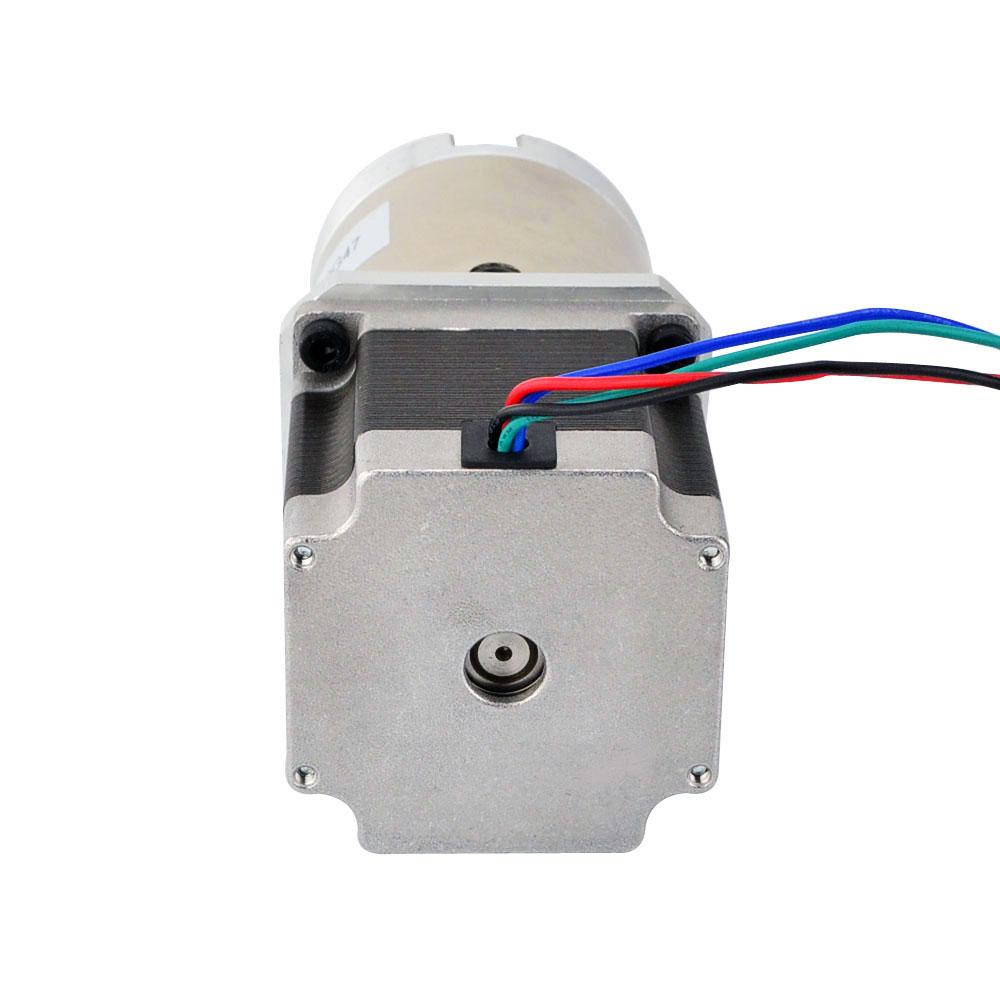

Nema 23 Stepper Motor Bipolar L56mm w/ Gear Ratio 47:1 Planetary Gearbox

Motor paso a paso Nema 23 con cuerpo de 56 mm y corriente nominal de 2.8 A. Integra una caja de engranajes con una relación de transmisión de 46.656: 1. Es una buena solución para aplicaciones que tienen espacio limitado y necesitan baja velocidad y/o par elevado.

COD: 23HS22-2804S-PG47

Peso: 1.700 Kg

Disponibilidad: Sin Stock

ARS 214535.99

El producto no está disponible para la venta en este momento

Características

Electrical Specification:

Manufacturer Part Number: 23HS22-2804S-PG47.
Motor Type: Bipolar Stepper.
Step Angle: 0.039 deg.
Holding Torque without Gearbox: 1.25Nm (177.01oz.in).
Rated Current/phase: 2.8A.
Phase Resistance: 0.9ohms.
Voltage: 2.6V.
Inductance: 2.5mH ± 20%(1KHz).

Gearbox Specifications:

Gearbox Type: Planetary.
Gear Ratio: 46.656: 1.
Efficiency: 73%.
Backlash at No-load: <=1.5 deg.
Max.Permissible Torque: 40Nm (5664oz.in).
Moment Permissible Torque: 60Nm(8497oz.in).
Shaft Maximum Axial Load: 100N.
Shaft Maximum Radial Load: 200N.

Physical Specifications:

Frame Size: 60 x 60mm.
Motor Length: 56mm.
Gearbox Length: 72mm.
Shaft Diameter: Φ12mm.
Shaft Length: 30mm.
Key-way length: 20mm.
Key-way width: 4mm.
Number of Leads: 4.
Lead Length: 500mm.
Weight: 1.7kg.

Connection:

A+	A-	B+	B-
Black	Green	Red	Blue

Gearbox Specification
Motor Specification
Physical Specification
Backlash at No-load(Max.°)	1.5
Efficiency	73%
Gear Ratio	46.656:1
Gearbox Length(mm)	72
Gearbox Type	Planetary
Max. Permissible Torque(Ncm)	4000
Max. Permissible Torque(oz.in)	5664.5
Moment Permissible Torque(Ncm)	6000
Moment Permissible Torque(oz.in)	8496.7
Shaft Maximum Axial Load(N)	100
Shaft Maximum Radial Load(N)	200
Inductance(mH)	2.5
Lead Length(mm)	500
Motor Nema Size	Nema 23
No. of Lead	4
Phase Resistance(ohm)	0.9
Rated Current(A)	2.8
Shaft Diameter(mm)	12
Shaft Length(mm)	30
Bipolar/Unipolar	Bipolar
Holding Torque w/o Gearbox(Ncm)	125
Holding Torque w/o Gearbox(oz.in)	177
Motor Length(mm)	56
Single Shaft/Dual Shaft	Single Shaft
Shaft Type	Key-Way
Weight(g)	1600
