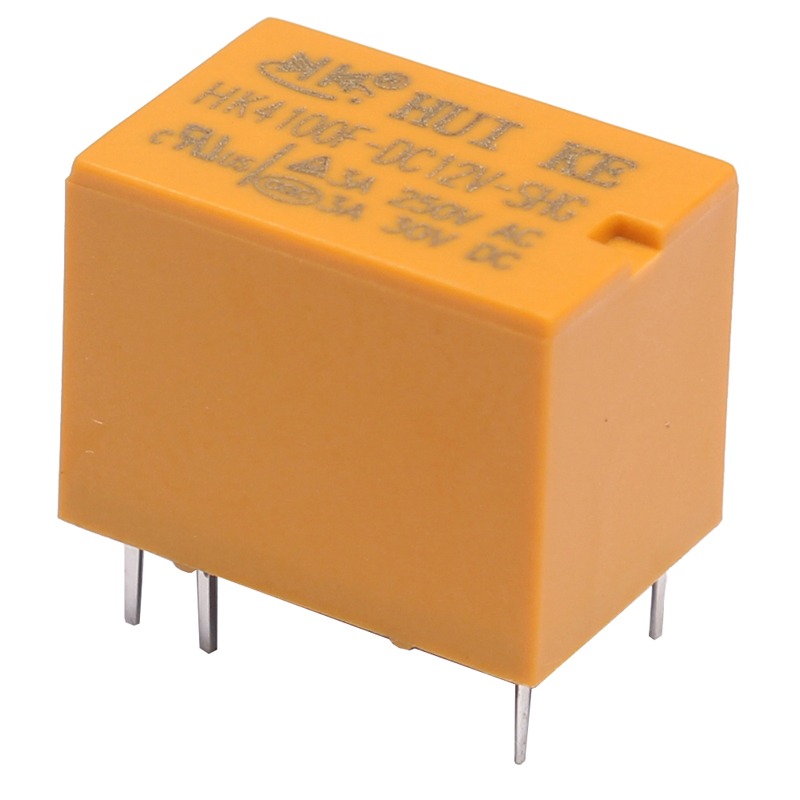

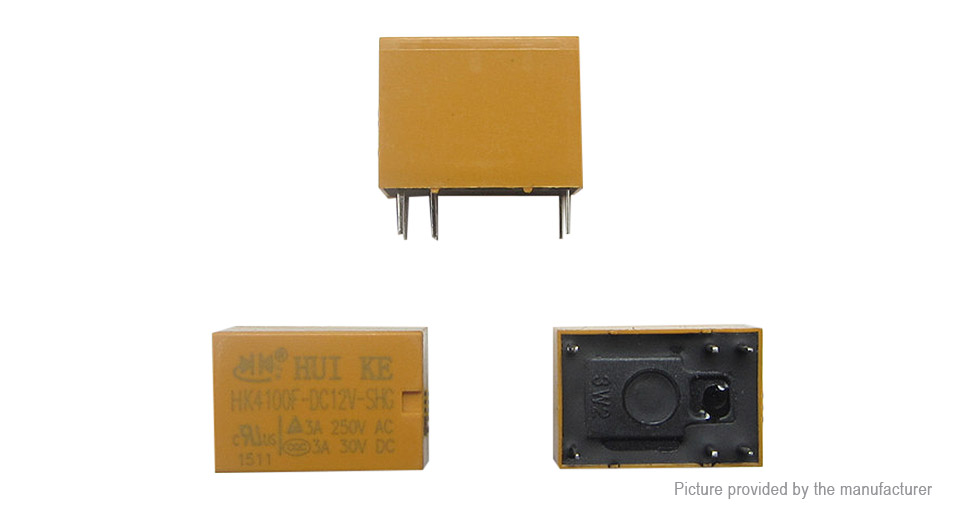

HK4100F-DC 12V SHG Relay 6Pin

Relay de 12 VDC de 6 pines SPDT. Soporta cargas de 3A a 250 VAC ó 30 VDC.
COD: HTHS0402
Peso: 0.004 Kg
Disponibilidad: En Stock
ARS 1612.00
El producto no está disponible para la venta en este momento
Características
Description:
- contact form:1C 1A 1B.
- contact material: silver alloy.
- contact ratings: 3A 250VAC/3A 30VDC.
- Max switching voltage: 300VAC/60VDC.
- Max switching current: 3A.
- Max switching power: 750VA/90W.
- contact resistance: 100m ohm(at 1A 6VDC).
Feature:
- Impedance: 720ohm +/-10%
- Coil power: 0.2W
- Nominal voltage: DC5V
- Work temperature: -25ºC ~ 70ºC
