RGB Panel Shield

RGB Panel Shield

OFERTA HASTA AGOTAR STOCK. Shield para control de paneles RGB de 32x32, compatible con Arduino Uno y Mega. Se suministra en formato kit para ensamblar.

COD: SFSPX14721

Peso: 0.004 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 7790.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

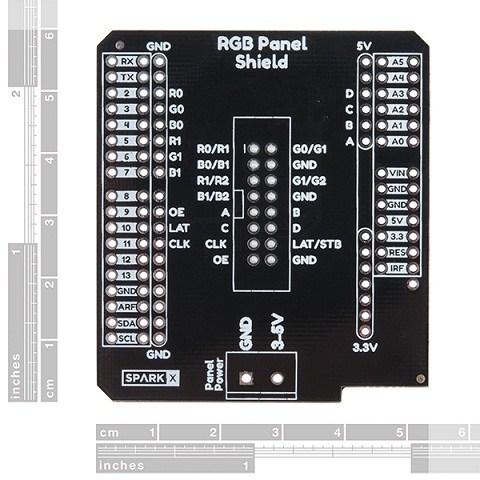

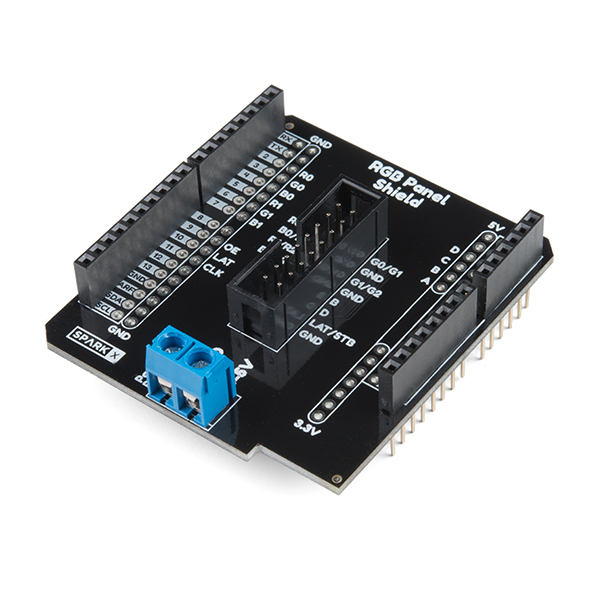

RGB panels are excellent fun but wiring them up can be a pain. This simple shield for Arduino connects the necessary 14 digital pins to drive our 32x32 RGB panel. This comes as a bag of parts but once you’ve soldered the handful of components it’s as easy as plugging on the 2x8 connector from the RGB panel to the shield and you’re off to the races.

This shield is guaranteed to work with our 32x32 RGB panel but has been designed to work with nearly all 32x32 pixel panels available on the market.

Note: This shield routes the CLK signal to pin 11. This makes the shield compatible with both Uno and Mega but you will need to change the define at the top of your sketch to:

#define CLK 11

We do not plan to regularly produce SparkX products so get them while they're hot!

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

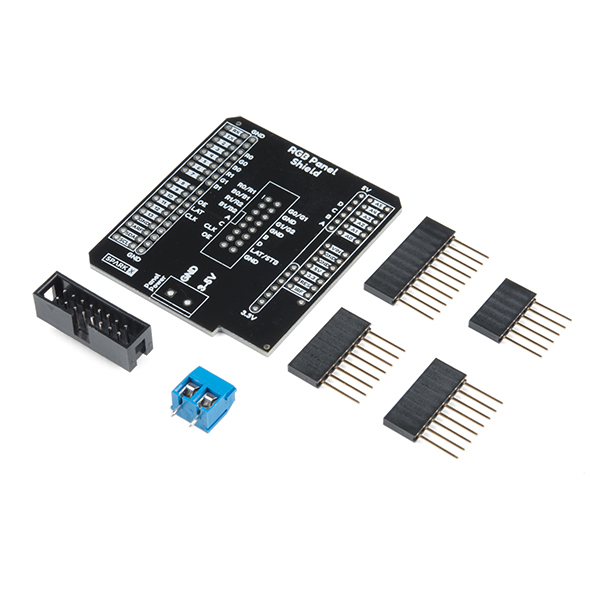

Includes:

  • RGB Panel Shield PCB
  • 2x8 Shrouded Header
  • 2-pin 5mm Screw Terminal
  • Stackable Header Kit

Documents:
