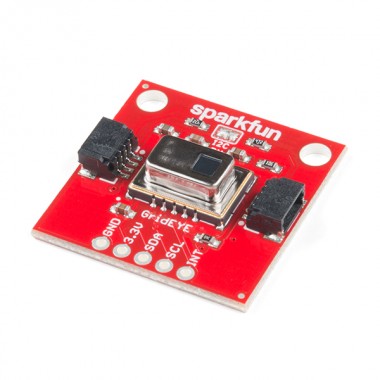

SparkFun Grid-EYE Infrared Array Breakout - AMG8833 (Qwiic)

Breakout de la cámara térmica infrarroja AMG8833 que permite mostrar la temperatura corporal distribuida en un array de termopilas de 8x8 y con una precisión de ±2.5°C.

COD: SFSEN14607

Peso: 0.004 Kg

Disponibilidad: Sin Stock

ARS 71384.00

El producto no está disponible para la venta en este momento

Características

Get ready to be able to see like the Predator! The SparkFun Grid-EYE Infrared Array Breakout board is an 8x8 thermopile array, meaning you have a square array of 64 pixels capable of independent temperature detection. It's like having a thermal camera, just in a lower resolution. To make it even easier to to get your low-resolution infrared image, all communication is enacted exclusively via I²C, utilizing our handy Qwiic system. However, we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.

The on-board AMG8833 Grid-EYE possesses an accuracy rate of 2.5ºC (4.5ºF) with a temperature range of 0ºC to 80ºC (32ºF to 176ºF). Additionally, this IR “camera” board can detect human body heat at about 7 meters or less (that’s about 23 feet), and has a frame rate of 10 frames a second to one frame a second. It is important to point out that while this version of the Grid-EYE is the high performance type with a high gain, it is only 3.3V tolerant. IE: Don’t try to operate it at 5V (you won’t have a very good time).

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started with the Grid-EYE Infrared Array Breakout Guide

Features:
