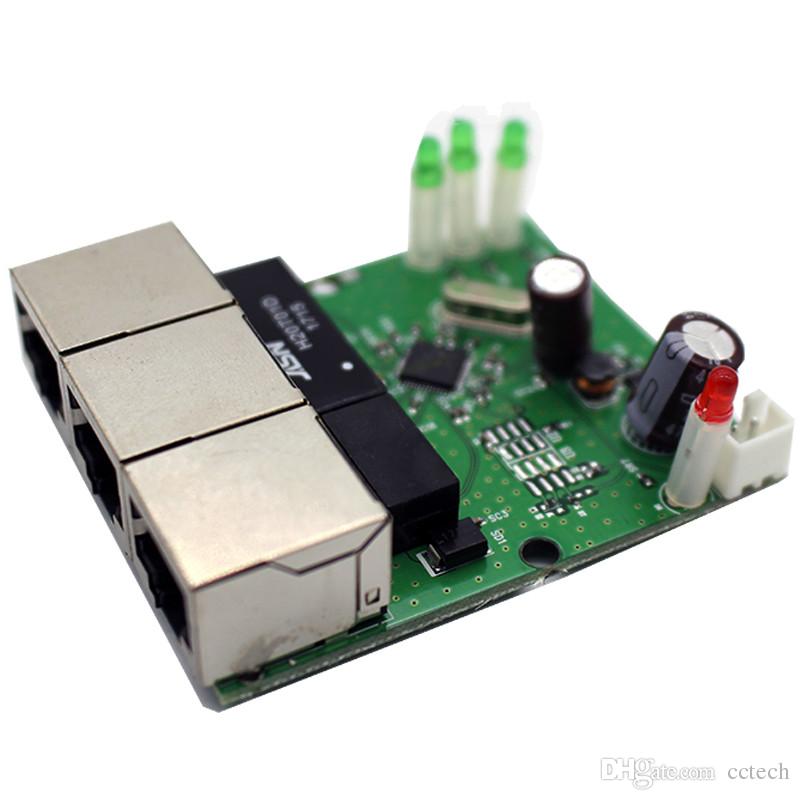

OEM 90degree RJ45 3 port ethernet switch module

OEM 90degree RJ45 3 port ethernet switch module

Módulo Switch de tamaño compacto, con ancho de banda de 1Gbps. Posee 3 puertos RJ45 (10/100mbps), leds indicadores y conector de alimentación. Se alimenta con tensiones de 5v a 15v. Incluye cable de alimentación. Basado en el RTL8305NB.

COD: CCT0001

Peso: 0.060 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 28580.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features:

1. 3 10/100mbps fast rj45 (90degree) ethernet ports.

2. 2K entry MAC address table.

3. 1Gbps switching capacity.

4. Support auto-learning and auto-aging.

5. LED indicator to monitor the status.

6. Unmanaged, support plug n play, no need configuration.

7. compliant IEEE802.3x flow control.

8. compliant IEEE802.3,IEEE802.3u.

9. size 60*50*18mm.





Specifications:

Product 3 port mini ethernt switch board
Input voltage range 5-15V DC
Network Ports 3 10/100mbps rj45(90degree)
AUTO Negotiation/AUTO MDI/MDIX
Transmission Method Store-And-Forward
Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

Performance Specifications

Bandwidth:1Gbps

Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission

Buffer memory:1M embedded memory per unit

Mean Time Between Failure (MTBF):190,000 hours (~ 21 years)

Acoustic Noise: 0 dB

Network Protocol and Standards

IEEE 802.3i 10BASET
IEEE 802.3u 100BASE TX-RX

IEEE 802.3x Flow Control

Status LEDs

System: Power

Per Port: Link,Activity





Environmental Specifications

Operating temperature: -15 to 70C

Storage temperature: -20 to 95C
Operating humidity: 90% maximum relative humidity, non-condensing

Storage humidity: 95% maximum relative humidity, non-condensing

Operating altitude: 10,000 ft (3,000 m) maximum

Storage altitude: 10,000 ft (3,000 m) maximum










Package content:

  • 1*mini 3 port ethernet switch module(include 2pin power cable)
