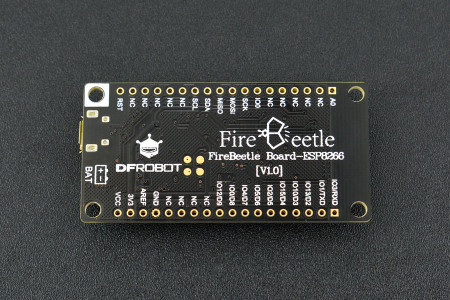

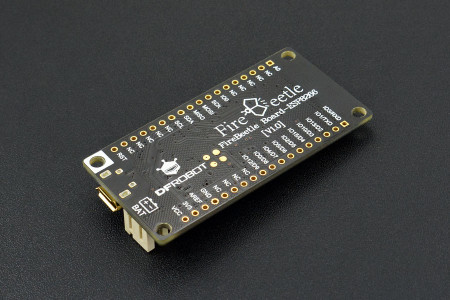

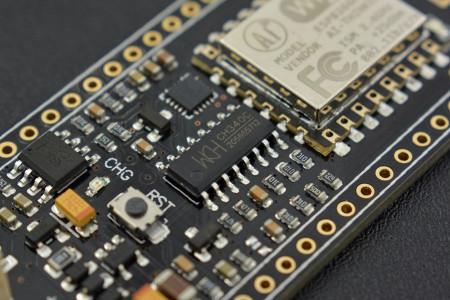

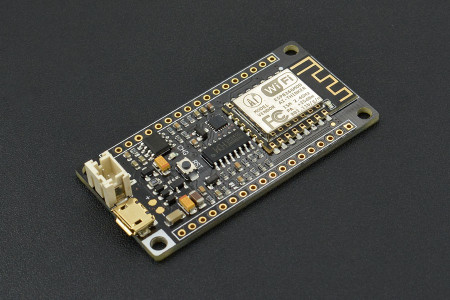

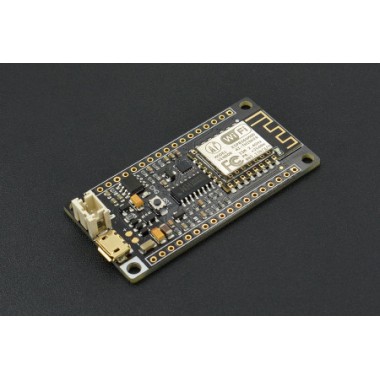

FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)

FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)

La Firebeetle ESP8266 es una placa de desarrollo integrada con IoT WiFi, TCP / IP, MCU de 32 bits, ADC de 10 bits y múltiples interfaces como HSPI, UART, PWM, I2C e I2S. Con 16MB de memoria flash SPI externa, ésta placa es adecuada para almacenamiento de programas y firmware. Además de poder ser programada con el IDE Arduino, también permite utilizar RTOS SDK Linux y Micropython. Excelente para proyectos de IoT. Compatible con la linea de placas FireBettle, también disponible en OpenHacks.

COD: DFR0489

Peso: 0.024 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 30907.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION:

DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated with IoT WiFi, TCP/IP, 32-bit MCU, 10-bit ADC and multiple interfaces such as HSPI, UART, PWM, I2C and I2S. In DTIM10, the full power consumption to maintain WiFi connection reached to 1.2mW. Equipped with 16MB outer SPI flash memory, ESP8266 is available for programs and firmware storage.

Compatible with Arduino programming enables Firebeetle ESP8266 to lower the barrier of programming. Operator can implement Arduino programming codes directly onto ESP8266 to reduce the difficulty of operating and increase the stability of board.
FireBeetle Products

In programming stage, Firebeetle Board-ESP8266 supports RTOS SDK in Linux, arduino IDE and Micropython.



There still remains some bugs to be detected and fixed by developers. In some cases some peripherals may not work perfectly by embedding Arduino sample codes in ESP8266.  Much more functions implemented in Arduino are still under development and improvement. An alternative way is to change development tool such as RTOS and MicroPython towards a more operating-friendly experience in some conditions.





FEATURES:

  • Compatible with FireBeetle series.
  • Compatible with Arduino programing.
  • Built-in 32-bit Tensilica L106 MCU and 10-bit ADC.
  • Support RTOS SDK in Linux, Arduino IDE and Micropython.
  • Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz).
  • Support TCP / IP.
  • Support Lithium Battery (The Maximum charge current: 500mA).
  • Support Low Power Consumption.
  • Support OTA Updating.
  • Support STA/AP/STA+AP.





SPECIFICATION:

  • Operating Temperature: -40�??~+85�??.
  • Operating Voltage: 3.3V.
  • Input Voltage (limits): 3.3~5V (Lithium Battery:3.7V & USB:5V).
  • Microcontroller: Tensilica L106 (32-bit MCU).
  • Clock Speed: 80MHz (Maximum: 160MHz).
  • SRAM�?50KB.
  • External Flash Memory: 16MB.
  • DC Current in the Low-Power-Consumption: 46uA.
  • Average Operating Current: 80mA.
  • Maximum Discharging Current: 600mA (LDO-3.3 Output).
  • Maximum Charging Current: 500mA.
  • Digital Pin x10.
  • Analog Pin x1.
  • SPI interface x1.
  • I2C interface x1.
  • IR interface x1.
  • I2S interface x1.
  • Interface: XH2.54mm Pin (No soldering default).
  • In Combination of Wi-Fi MAC/ BB/RF/PA/LNA.
  • WiFi: IEEE802.11 b/g/n (2.4 GHz~2.5 GHz), not support 5GHz WiFi.

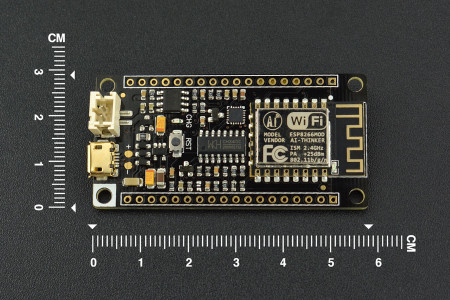

  • Dimension: 58 × 29(mm).
  • Operating Temperature: -10�??~+55�??.
  • Mounting Hole Dimension: 53 x 24(mm).
  • Weight: 24g.





DOCUMENTS:

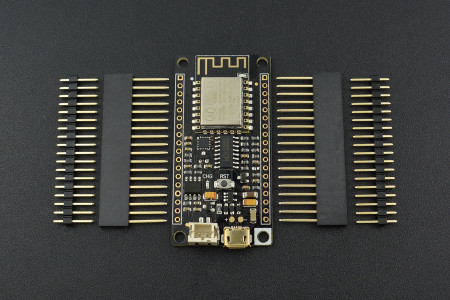

SHIPPING LIST:

  • FireBeetle Board-ESP8266 ×1.
  • 18pin-2.54mm ×2.
  • 18pin-2.54mm Female Holder ×2.
