50cm NTC Thermistor Temperature Sensor 10K 1% 3950

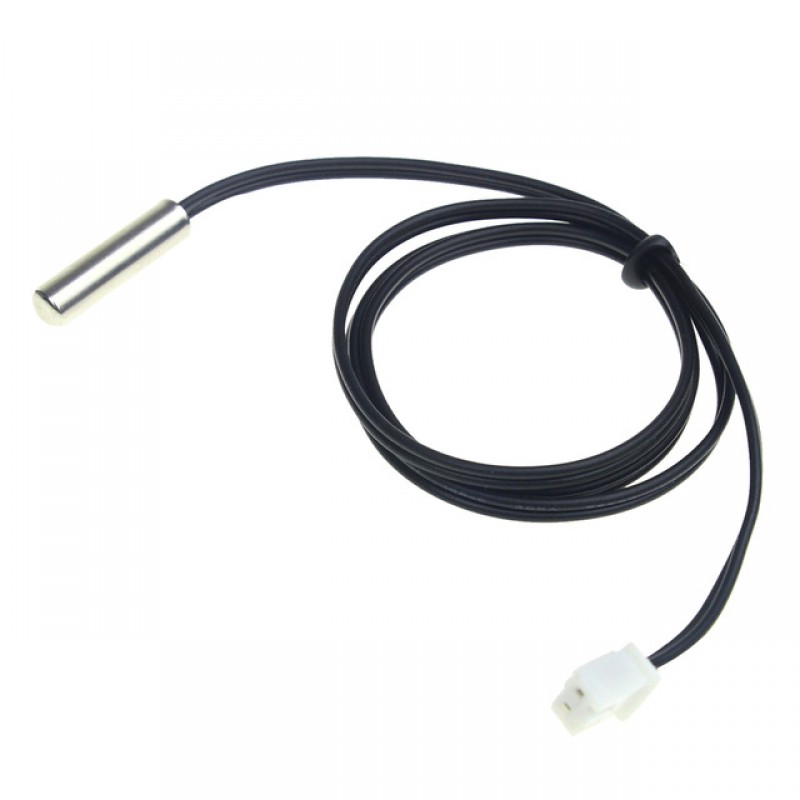

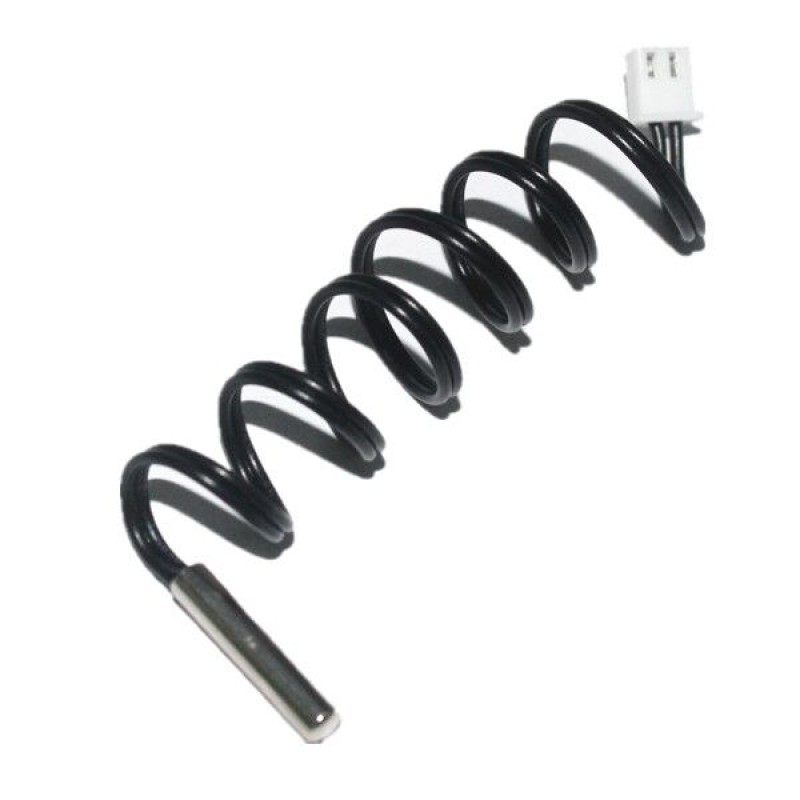

Sensor de temperatura de tipo NTC de 10k a 25ºC, encapsulado en acero inoxidable. Rango de temperatura admisible: -40 ℃ to +200 ℃. Posee un cable de longitud de 50 cm y conector hembra de 2 pines.
COD: HTHR0214-165A
Peso: 0.005 Kg
Disponibilidad: Sin Stock
ARS 1645.00
El producto no está disponible para la venta en este momento
Características
Features :
- High sensitivity, rapid response.
- Compact structure, easy installation, good water resistance.
- The use of wide temperature range, good stability, high reliability.
- Can provide different R, B value of products, interchangeable, high precision.
Specification :
- Type: Humidity Sensor.
- Material: Mixture.
- Material Crystal structure: Polycrystallinef.
- Usage: Temperature Sensor.
- Theory: Resistance Sensor.
- Output: Analog Sensor.
- 10K 1% accuracy: High temperature type.
- Resistance accuracy: ± 1%, ± 2%, ± 3%.
- The use of temperature range: -40ºC to +200ºC.
- The maximum rated power: 45mW.
- Thermal time constant: ≤3S (static air).
- Resistance temperature coefficient: -2 to -5% / ºC.
- Insulation performance: 500V.
- DC test a single root insulation resistance: ≥ 100MΩ.
