Speech Interaction Board for Raspberry Pi
Placa de expansión para Raspberry Pi con función de reconocimiento de voz. POsee dos entradas de para micrófono, además de una salida de audio. Para ser usado en aplicaciones de Inteligencia Artificial y aplicaciones de vos, tales como Alexa o Google Assitant.
COD: ERPA12579I
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 15006.00
El producto no está disponible para la venta en este momento
Características
Introduction:

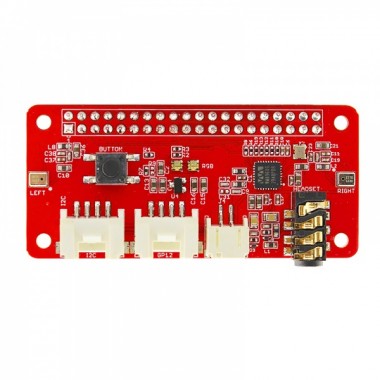

Speech Interaction board for Raspberry Pi is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on. There are 2 microphones on both sides of the board for collecting sounds and it also provides 2 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What is more, 3.5mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.
Features:
- Raspberry Pi compatible(Support Raspberry Pi Zero and Zero W, Raspberry Pi B+, Raspberry Pi 2 B and Raspberry Pi 3 B).
- 2 Microphones.
- 2 Crowtail Interfaces.
- 1 User Button.
- 3.5mm Audio Jack.
- JST2.0 Speaker Out.
Specifications:
- BUTTON: a User Button, connected to GPIO17.
- MIC_Land MIC_R: 2 Microphones on both sides of the board.
- RGB LED: 2 APA102 RGB LEDs, connected to SPI interface.
- WM8960: a low power stereo codec.
- Raspberry Pi 40-Pin Headers: support Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2 B and Raspberry Pi 3 B.
- I2C: Grove I2C port, connected to I2C-1.
- GPIO12: Crowtail digital port, connected to GPIO12 & GPIO13.
- JST 2.0 SPEAKER OUT: for connecting speaker with JST 2.0 connector.
- 3.5mm AUDIO JACK: for connecting headphone or speaker with 3.5mm Audio Plug.
Application:
- Voice Interaction Application.
- AI Assistant.
