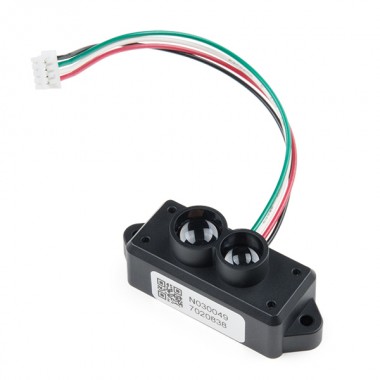

TFMini - Micro LiDAR Module

TFMini - Micro LiDAR Module

Sensor de distancia de alta precisión basado en el principio ToF (Tiempo de Vuelo), el mismo posee un diseño óptico y electrónico único, para lograr una detección de distancia estable, precisa, de alta sensibilidad y alta velocidad. Recomendado para ser utilizado en drones y otro tipo de dispositivos robóticos. Puede medir desde 30cm hasta 12m.

COD: SFSPX14577

Peso: 0.013 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 102264.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

The TFMini is a ToF (Time of Flight) LiDAR sensor capable of measuring the distance to an object as close as 30 centimeters and as far as 12 meters! As with all LiDAR sensors, your effective detection distance will vary depending on lighting conditions and the reflectivity of your target object, but what makes this sensor special is its size. Measuring only 42x15x16mm, the TFMini allows you to integrate LiDAR into applications traditionally reserved for smaller sensors such as the SHARP GP-series infrared rangefinders. The TFMini is easy to power at only 5V and easy to talk to using a 3.3V UART at 115200 baud.



Point of Order: This product does not use laser light for ranging. Instead it contains an LED and optics. Many such systems are being marketed under the name "LiDAR," although it may be more appropriate to think of this device as a "Time-of-Flight Infrared Rangefinder". It differs significantly from traditional IR rangefinders in that it uses ToF to determine range and not triangulation � as is performed by the Sharp GP-series devices.

We do not plan to regularly produce SparkX products so get them while they�re hot!

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.



Includes:

  • TFMini Micro LiDAR Module.
  • Hookup Wire.



Features:

  • Input Voltage: 5V.
  • Average Power: 120mW.
  • LED Peak Current: 800mA.
  • UART TTL Voltage: 3.3V.
  • Baud Rate: 115200 8N1.
  • Resolution: 5mm.
  • Minimum Detected Object Size at 2m: 20mm.
  • Operating Wavelength: 850nm.
  • Signal Acceptance Angle: 2.3.





Documents:
