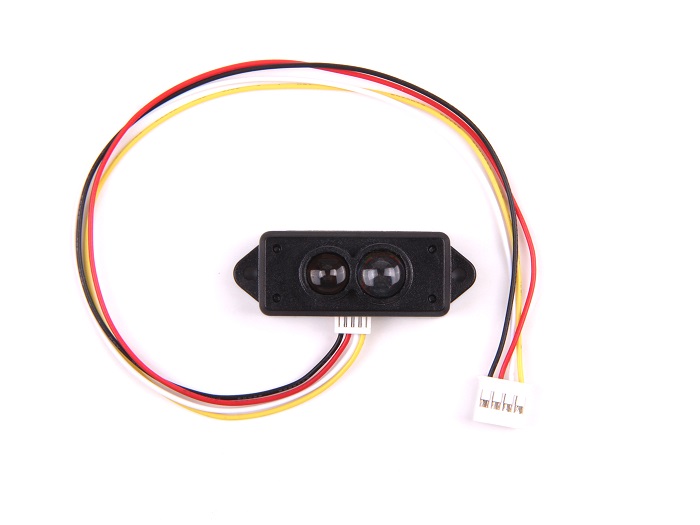

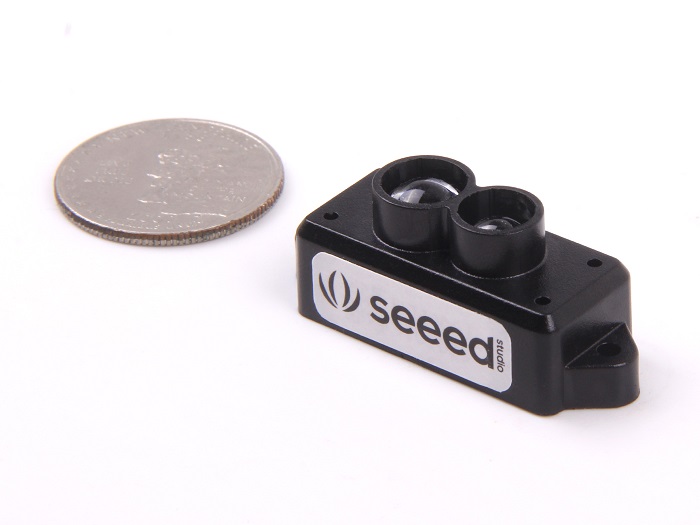

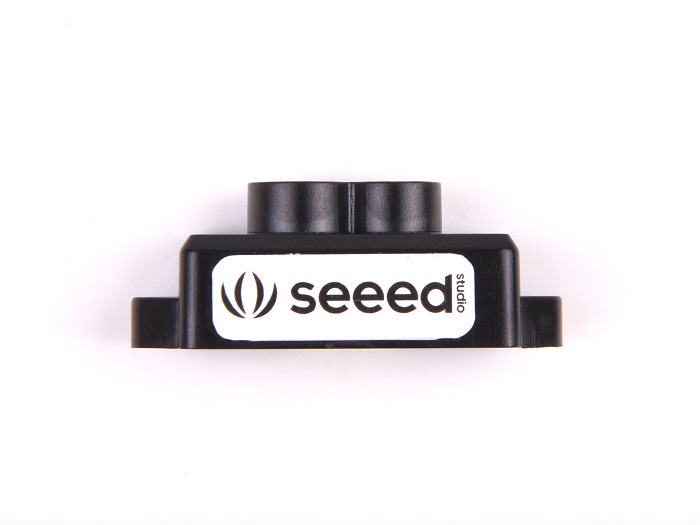

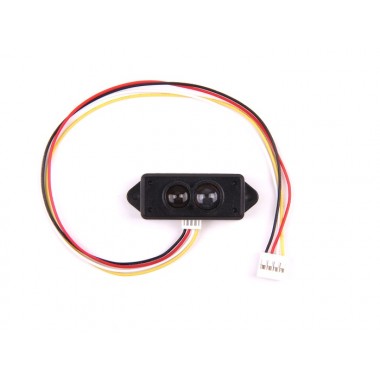

Seeedstudio Grove - TF Mini LiDAR

Seeedstudio Grove - TF Mini LiDAR

Sensor de distancia de alta precisión basado en el principio ToF (Tiempo de Vuelo), el mismo posee un diseño óptico y electrónico único, para lograr una detección de distancia estable, precisa, de alta sensibilidad y alta velocidad. Recomendado para ser utilizado en drones y otro tipo de dispositivos robóticos.

COD: SE114991434

Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 88255.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

This product is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.

ToF is the abbreviation of Time of Flight technology, and its operating principle is as follows: a modulated near-infrared light is sent from the sensor and reflected by an object; the distance to the object to be shot can be converted with the sensor by calculating the time difference or phase difference between the light sending and the light reflection, so as to produce the depth information.



Applications:

• Drone altitude holding and terrain following.

• Machine control and safety sensor.

• Robot distance detection.

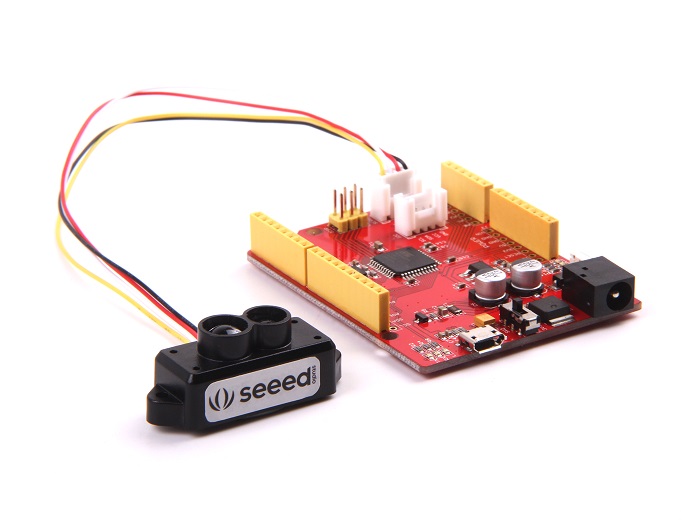

If you are using Seeeduino Lite then just put it straight into the Grove Serial Interfaces.





1.1 TF mini optical simulation of the optical path:




1.2 Measurement range schematic diagram:




1.3 Line sequence description:




1.4 Product Size Specifications:


Technical Details:

Dimensions 42mm x 15mm x 16mm
Weight G.W 4.7g
Battery Exclude
Operating range 0.3m-12m
Maximum operating range at 10% reflectivity 5m
Average power consumption 0.6W
Applicable voltage range 4.5V-6V
Acceptance angle 2.3°
Minimum resolution ratio 1cm
Frequency 100Hz
Accuracy 1% (less than 6m), 2% (6m-12m)
Distance detection unit cm
Laser Wavelength 850nm
Operating temperature -20â??-60â??
Light sensitivity 70,000lux
Communication interface UART
Laser Safety Class FDA Class â?
LED peak current 800ma
Electromagnetic Compatibility(EMC) EN 55032 Class B



Part List:

TF Mini LiDar 1
Grove Cable 1
