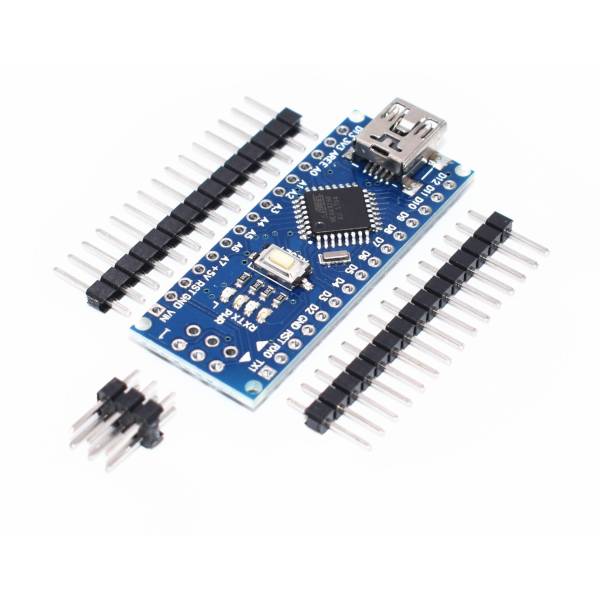

Nano-C USB CH340 Arduino Compatible
Compatible 100% con Arduino Nano, reemplaza el integrado FT232RL por el CH340. Incluye headers para soldar.
COD: TRODAR1040
Peso: 0.020 Kg
Disponibilidad: Sin Stock
ARS 11113.00
El producto no está disponible para la venta en este momento
Características
Description
To lower the price for genius FTDI FT232RL USB-TTL IC, this is the new version of nano, replace the FT232RL by CH340, most of the rest remains the same.
Note: Please note the break away pins headers of this board is not yet soldered.
- MCU: ATmega328
- Operating Voltage (logic level): 5 V
- Input Voltage (recommended): 7-12 V
- Input Voltage (limits): 6-20 V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- Analog Input Pins: 8
- DC Current per I/O Pin: 40 mA
- Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
- SRAM: 1 KB (ATmega168) or 2 KB (ATmega328)
- EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328)
- Clock Speed: 16 MHz
- Dimensions: 1.80cm x 4.30cm
