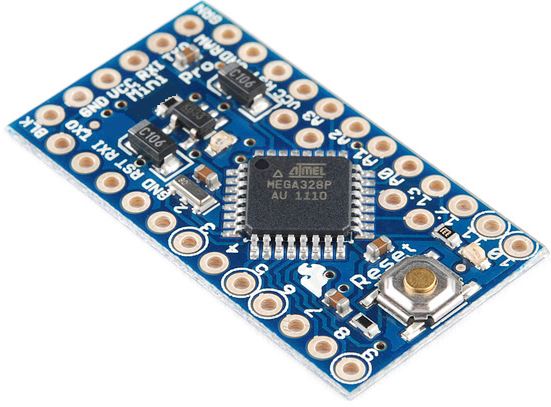

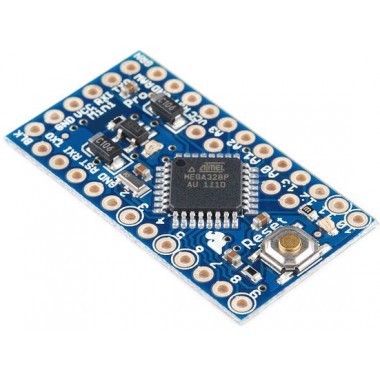

Arduino-Compatible Pro Mini EDArduino 16Mhz/5V/Atmega328
OFERTA POR RENOVACION DE STOCK!!! Una de la versiones del Arduino Pro Mini 100% compatible, que trabaja a 16 MHz y con un regulador de 5V.
COD: TRODAR1010
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 5990.00
El producto no está disponible para la venta en este momento
Características
Description
The minimal design approach to EDArduino, and fully compatible with arduino. This is a 5V EDArduino running the 16MHz bootloader (select ‘Arduino pro mini′ within the Arduino software). EDArduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need.
We recommend first time EDArduino users start with the Duemilanove. It’s a great board that will get you up and running quickly. The EDArduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off board.
We really wanted to minimize the cost of an EDArduino. The EDArduino Pro Mini is like the EDArduino Mini (same pin out) but to keep the cost low, we used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The EDArduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.
Features:
- ATmega328 at 16MHz with external resonator (0.5% tolerance)
- USB connection off board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over current protected
- Reverse polarity protected
- DC input 5V up to 12V
- On board Power and Status LEDs
- Dimension 0.7×1.3″ (18x33mm)
Documents:
Note:
- Not include cable, assembled bare board only.
