ESP LED Strip Board

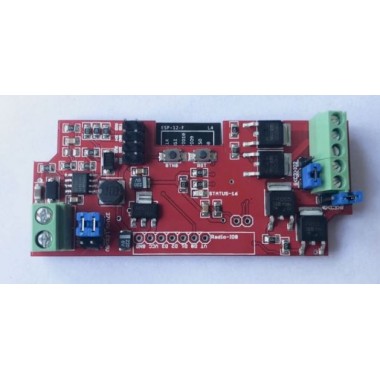

OFERTA POR RENOVACION DE STOCK!!! Placa de desarrollo basada en el ESP8266, el popular módulo para proyectos de IoT. Preparada especialmente para controlar tiras de led RGB a través de una conexión Wi-Fi. Se pueden utilizar aplicaciones desde el celular para controlar el encendido y apago de los leds.
COD: TRONWI1124
Peso: 0.048 Kg
Disponibilidad: En Stock
ARS 5990.00
El producto no está disponible para la venta en este momento
Características
Description

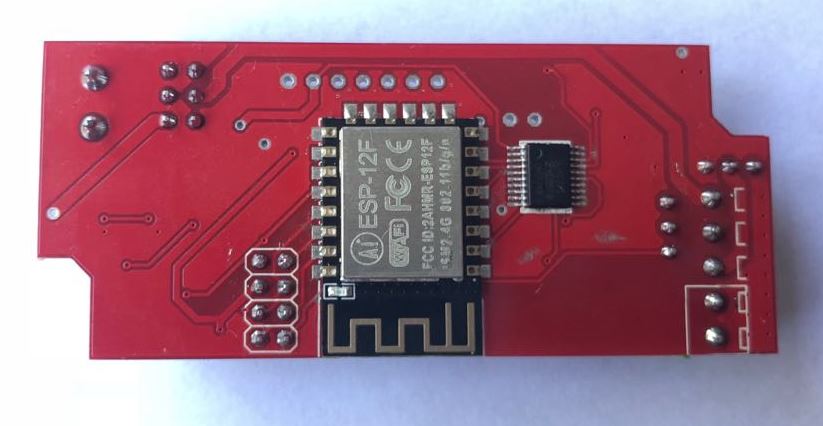

- Based on ESP8266 Wifi IC, ESP-12F module.
- One channel RGB LED strips (can also be used for three channels LED strips)
- One extra channel white LEd strips.
- Jumper select to support WS2812 LED strips or ring board.
- Input voltage 6-27V, also power LED strip, if LED strip is 12V, input voltage should be 12V. For WS2812, input voltage should use 5V.

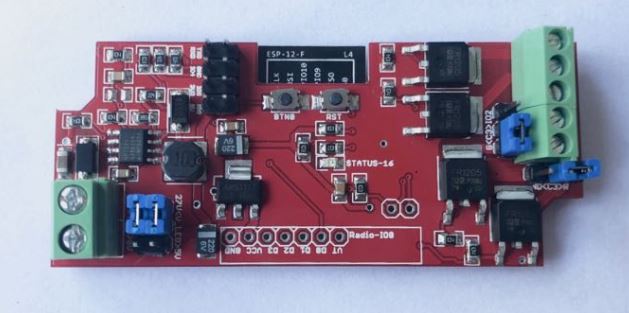

- On board Mosfet control is FR1205, support up to 44A/55V, for low light 5050 white led strip is about 0.4A 12V(5W), so technically support up to 100 meter per channel.
- Lead out all extra pins of ESP-12F for other use. Two buttons – flash and reset.

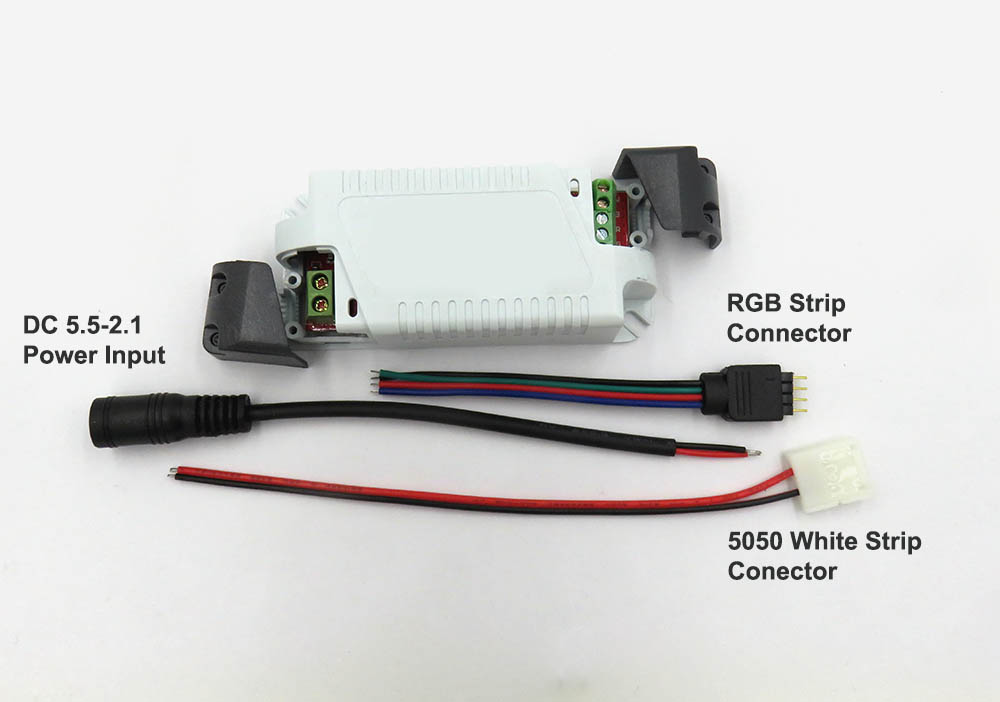

- Package Inlcudes:
- Main control board

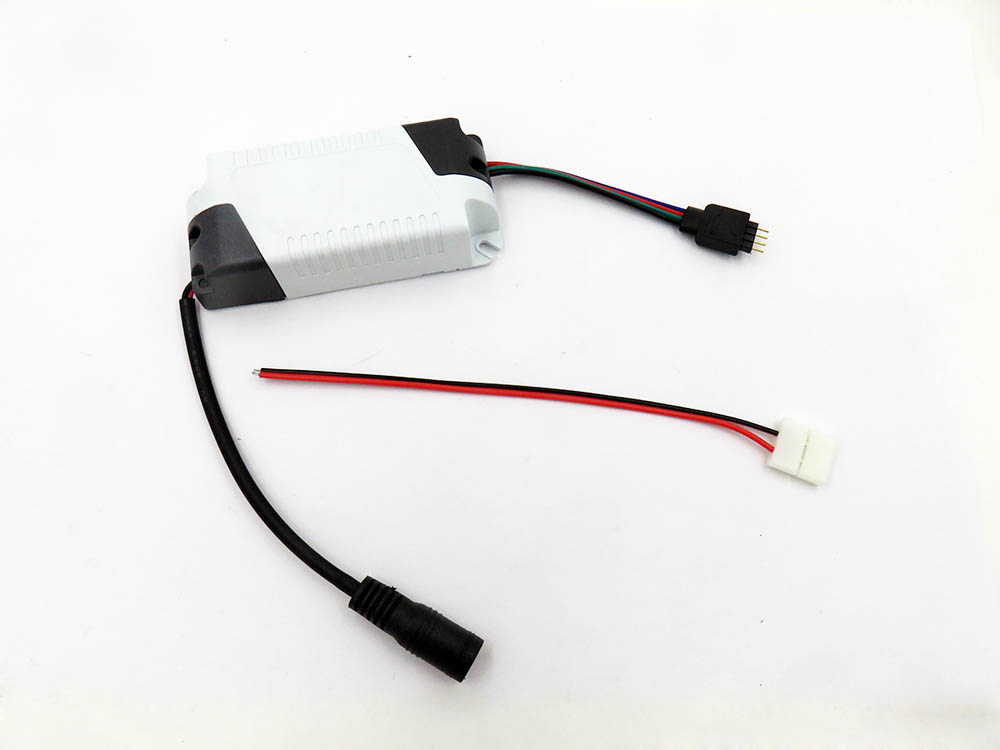

- Plastic case kit (smaller than ESP relay board.)
- DC5.5-2.1CM power input cable
- RGB connecting cable
- normal 5050 white LED strip (10CM width) cable.
- Please prepare M2*8 or M2.2*6, etc crews by yourself.
- Demo board flashed with RGB MQTT control firmware, other function not yet supported.
- More hardware documentation please see on this page.
- Demo video avaialble here.
