miniPCI-E to USB Converter, for 3G, WWAN, WIFI module, w/SIM Slot

Principal

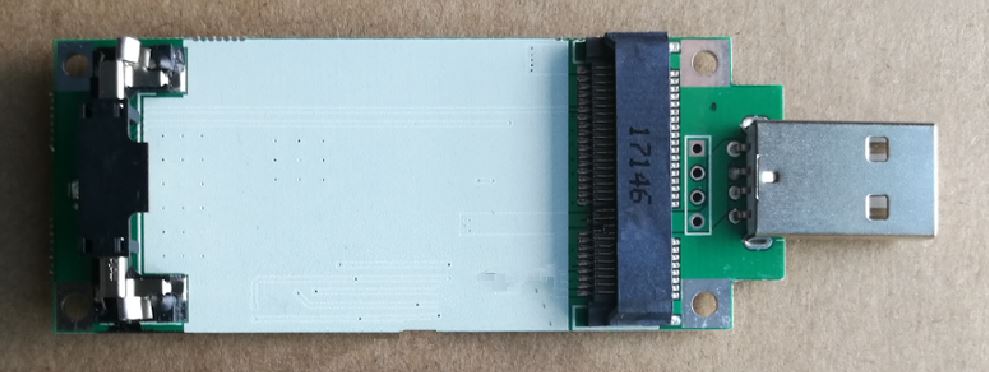

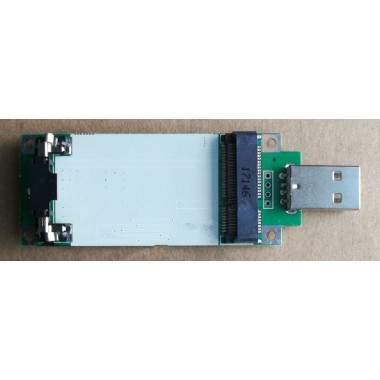

Placa que convierte de mini PCIE a conector USB; soporta una amplia variedad de modúlos 3G y 4G (ver lista en descripción) y tiene un slot en la parte inferior para tarjetas SIM.

COD: TRONGS1075

Peso: 0.040 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 17193.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

  • A convert board from mini PCIE to USB Connector
  • Support many types of 3G, 4G modules, please see listed below at end.
  • SIM slot on backside for use.
  • When driver installed, can be recorged by OS, tested on windows, can use dailer software to operate.
  • On module locker on back end, to fully keep module firm inside, but very fragile notice.
  • Can be installed in machine by screws.
  • Mini PCI-E52pin interface has USB interface, the convert board also conver 5V to 3.3V for module to use.
  • Product Size Specifications: 90 * 31mm (including USB port)
  • Mini PCI-E design meets the 1.30 version of industry standards
  • USB design in line with the USB 2.0 industry standard, backward compatible with the 1.1 specification
  • This adapter is suitable for module (USB bus) such as WWAN / 3G / WiFi with full height (30 * 50-51mm)
  • Working status LED real-time display



A support list of most chinese modules:

  • Huawei: MU609 PCIE MU709S-2 PCIE MU709S-6 PCIE MU509-B PCIE MC509-A EM770 770J 770W EM820U 820W MU909-521 MU909s-821 MU909S-120 And so on.
  • ZTE: MF210 MF210V1 MF210V2 AD3812 MC2716 ME3620 ME3630 ME3760 ME3610 and so on.
  • Long Shang: U8300 U8300W U8300C C5300V U7500E and so on
  • Domain: CLM920 full range of PCIE modules, CLM920-CN CLM920-CN3 CLM920-EC5
  • Move away: UC20 full range of PCIE, EC20 full range of PCIE module
  • SIMCOM: sim7100, sim7600 full range of PCIE module
  • Support sierrawireless, Telit, cinterion, Ericsson, SAMSUNG, China domain, Datang brands such as 3G 4G card, for the Internet through the USB port and the module Brush, debugging, testing and unlocking.
