Multifunction Bluetooth Controlled Robot Smart Car Kits
Kit para construir un Robot móvil multifuncional compatible con Arduino, capaz de seguir líneas y evadir obstáculos. Se controla mediante Bluetooth a través de control remoto, o bien desde el mismo celular, mediante una aplicación Android. Ideal para aficionados a la róbotica y para propósitos educativos. Incluye Beeduino 328.
COD: HTHR14
Peso: 1.183 Kg
Disponibilidad: Sin Stock
ARS 80972.00
El producto no está disponible para la venta en este momento
Características
Description:

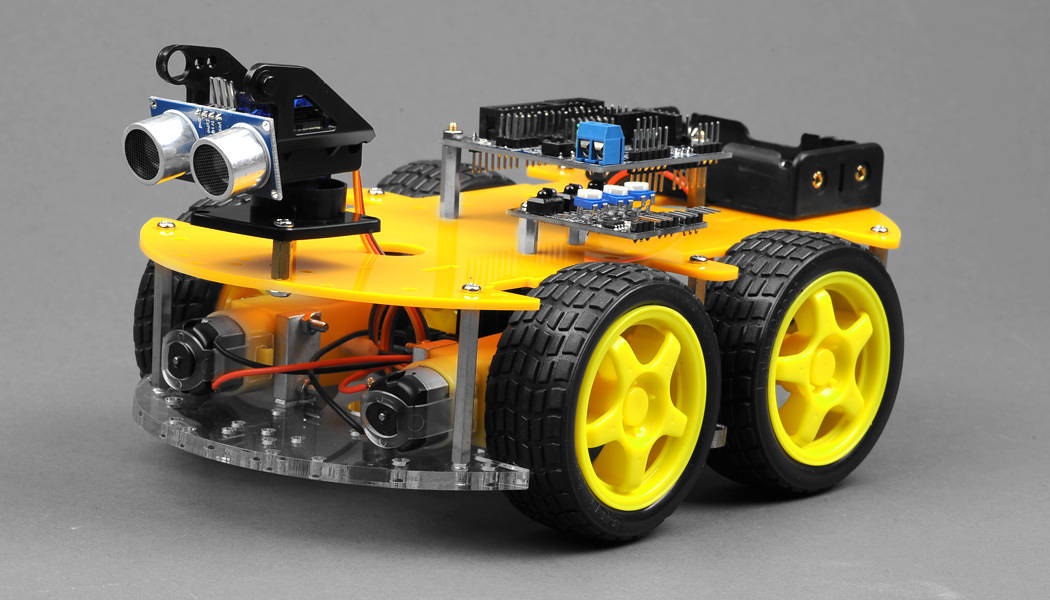

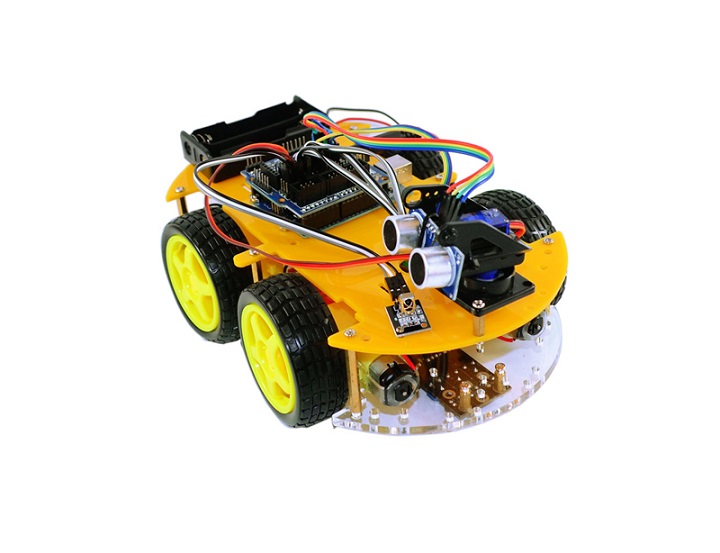

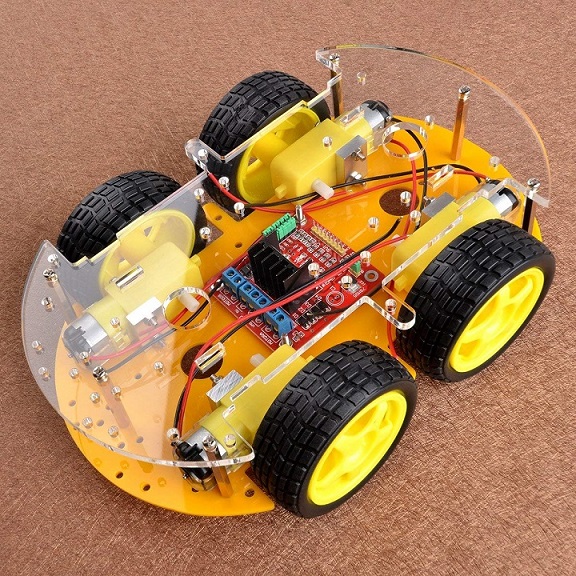

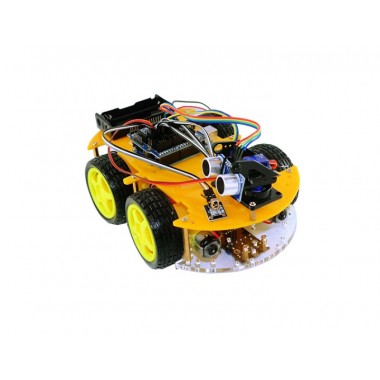

The multifunction bluetooth controlled robot car is an upgraded version of auto-walk car, which added the part of bluetooth control.
The bluetooth controlled robot car is a microcontroller leaning application development system, based on Arduino AtMega328P. It has the function of hunt, obstacle avoidance and remote control. And also can expand external modules to increasing the car's function.
Feature:
- Working voltage: 7V - 12V.
- Decelerate motors ratio 1:48, drive voltage 6V.
- Uses L298N driver module, real isolation to MCU.
- Three groups of hunt module(detects black and white lines), higher accuracy
- Infrared remote communication module, composed of smart car to be remote control system.
- Bluetooth wireless communication module (short-range wireless remote control).
- With economic and environmentally friendly rechargeable battery and charger.
- Can be equipped with a variety of sensor modules, depending on your imagination to achieve a variety of functions.

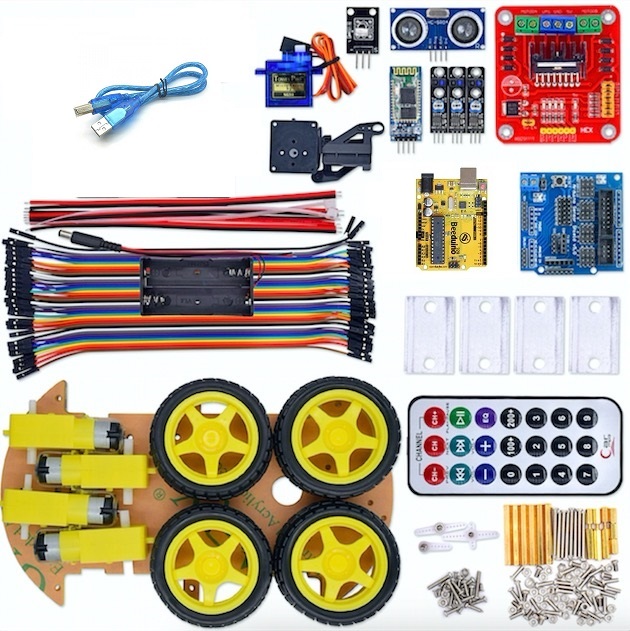

Package included:
- 4 x Geared motor.
- 4 x Tyre.
- 4 x Motor fixing.
- 2 x Acrylic glass plate (100 x 213 x 5mm).
- 1 x L298N motor driver.
- 1 x UNO328 controller board.
- 1 x Sensor board V5.
- 1 x Holder kit.
- 1 x Steering gear.
- 1 x Ultrasonic module.
- 3 x Line inductive module.
- 1 x Infrared receiver module.
- 1 x MCU remote control.
- 1 x 18650 battery holder.
- 1 x Bluetooth adapter.
- 1 x USB cable (0.5m).
- 30 x Dupont line.
- 15 x Pillars (6 x 35mm / 3 x 20mm / 6 x 6mm).
- All necessary screw and nut.
Tutorial para armar el robot! (7200 Kb)
