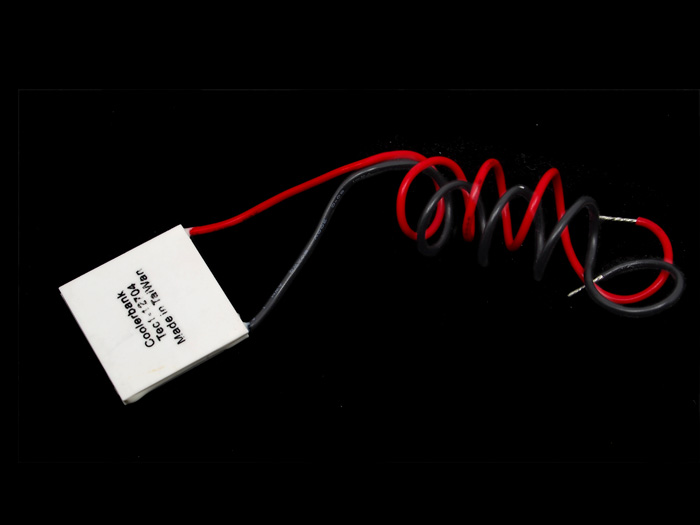

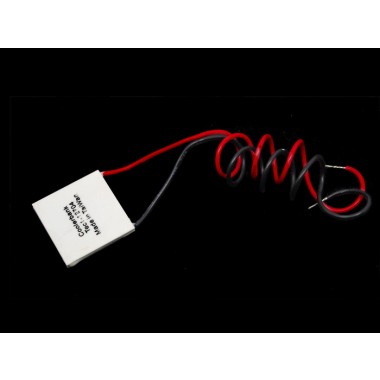

Peltier Plate 30*30 TEC1-07103

Peltier Plate 30*30 TEC1-07103

Enfriador termoeléctrico TEC1-07103 basado en el efecto Peltier de 8.5V/3A.

COD: HTHS0127

Peso: 0.040 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 18422.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:


Peltire Plate, also semiconductor cooler, is a heat sink device taking advantage of the Peltier effect. It’s solid, reliable, noise free and vibration free, suitable for applications that have limits on space, noise and vibration.

Typical applications for Peltier plate are cooling systems for heating parts, like LED and chips. But they are also widely used in portable cooling device, like ice box.






Feature:

  • Cooling speed is controllable via adjusting the operating electricity.
  • Noise free, vibration free, friction free, reliable performance.
  • Tiny size and light weight.
  • No cooling liquid, environmental friendly.
  • Can be used as heating device by changing the direction of electricity.





Specification:

  • Maximum Current : 3A.
  • Maximum Voltage : 8.5V.
  • Maximum Refrigerator Power : 14.9.
  • Dimensions(mm) : 30*30*3.5.
  • Resistance : 1.81Ω.



Type : TEC1-07103

Technical Details:

Dimensions 120mm x 80mm x 3.5mm
Weight G.W 16g
Battery Exclude
