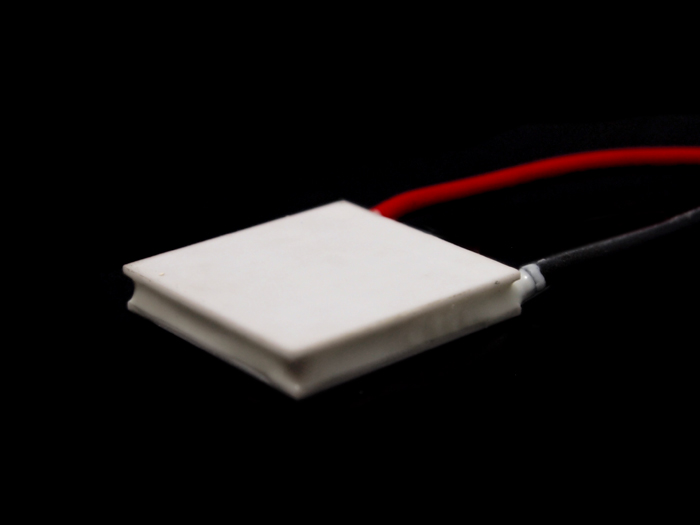

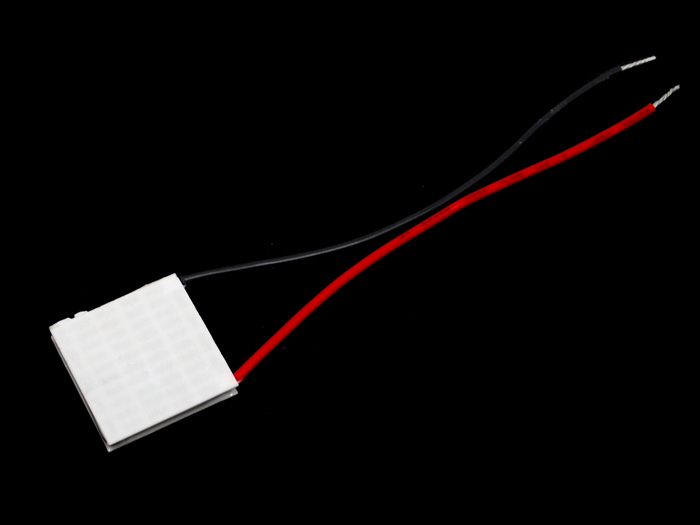

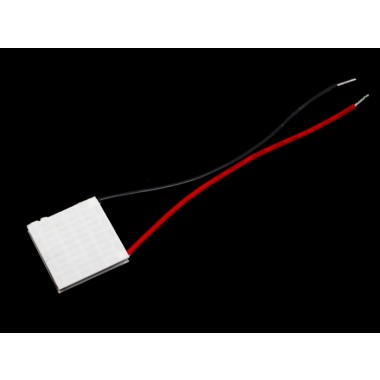

Peltier Plate 25x25mm TEC1-04904
Enfriador termoeléctrico TEC1-04904 basado en el efecto Peltier de 5V/4A.
COD: HTHS0126
Peso: 0.013 Kg
Disponibilidad: Sin Stock
ARS 17833.00
El producto no está disponible para la venta en este momento
Características
Description:
Peltire Plate, also semiconductor cooler, is a heat sink device taking advantage of the Peltier effect. It’s solid, reliable, noise free and vibration free, suitable for applications that have limits on space, noise and vibration.
Typical applications for Peltier plate are cooling systems for heating parts, like LED and chips. But they are also widely used in portable cooling device, like ice box.
Feature:
- Cooling speed is controllable via adjusting the operating electricity.
- Noise free, vibration free, friction free, reliable performance.
- Tiny size and light weight.
- No cooling liquid, environmental friendly.
- Can be used as heating device by changing the direction of electricity.
- Ideal for cooling down semiconductor devices.
- Solid state, vibration free, noise-free.
- Simple to install and operate.
- Long life time.
- Slim and compact.
Specification:
- Maximum Current : 4A.
- Maximum Voltage : 5.8V.
- Maximum Refrigerator Power : 13.7W.
- Maximum Temperature difference : 68℃.
- Dimensions(mm) ： 25*25*3.7.
- Resistance : 1.16Ω.
Type : TEC1-04904
Technical Details:
| Weight | G.W 13g |
| Battery | Exclude |
