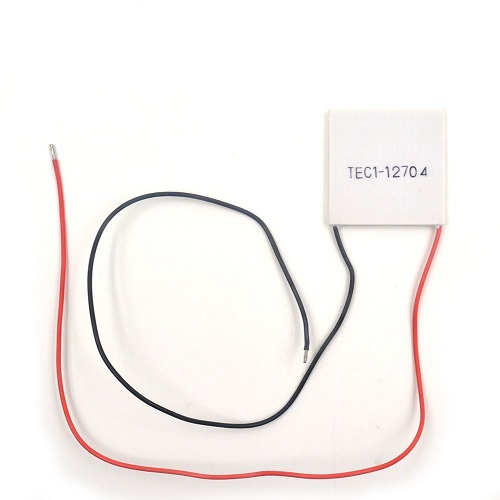

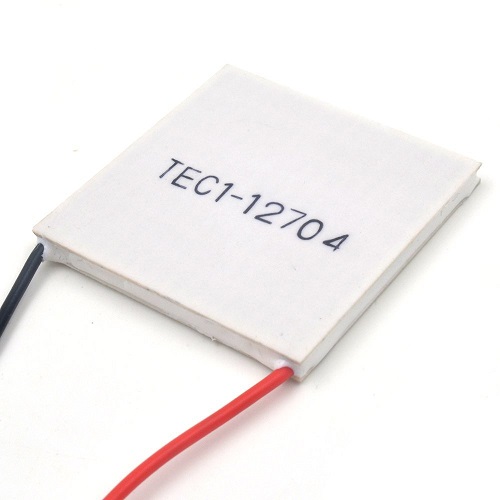

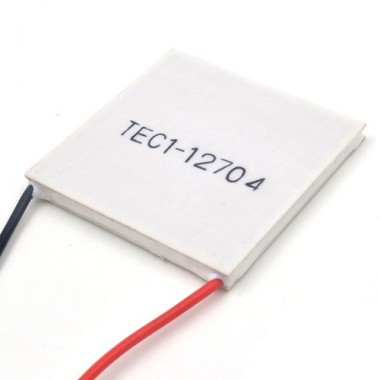

TEC1-12704 40x40 12V4A
Enfriador termoeléctrico TEC1-12704 basado en el efecto Peltier, de 12V/4A.
COD: HTHS0047
Peso: 0.020 Kg
Disponibilidad: Sin Stock
ARS 10115.00
El producto no está disponible para la venta en este momento
Características
Description:
- Cooling Peltier Plate Module.
- Lightweight and durable Fast, dynamic response.
- Can provide cooling below ambient temperature.
- Enables reduced, low-noises operation of cooling fans, while providing greater cooling. power.Suitable for manufacture in small size.
Features:
TE MODULE PARAMETER
|
Type |
Couples |
Imax (A) |
Umax (V) |
Qcmax(w) T =0 |
Tmax (°C) Qc=0 |
Size Mm |
|
|
TEC1-12704 |
127 |
4 |
15.4 |
36 |
65 |
40*40*3.8 |
- Chip Model: TEC1-12704.
- Dimensions: 40 * 40 * 3.8mm.
- Wire specifications: wire lead length of 100 ± 5mm of RV standard single head 5mm tinned.
- Internal Resistance: 3.0 to 3.3Ω (ambient temperature 23 ± 1 ° C, 1kHZ of Ac test).
- The maximum temperature difference: Tmax (Qc = 0) 60 °C above.
- Operating current: Imax = 12 (rated voltage start).
- Rated voltage: DC12V (Vmax: 15.5V).
- Cooling power: Qcmax 24W.
- Assembly pressure: 85N/cm2.
- Working environment: temperature range -55 °C to 83 °C (too high ambient temperature will directly affect the cooling efficiency).
- Packaging technology: around the standard 704 silicone rubber seal.
- Packaging standards: foam boxes for packaging, storage conditions of ambient temperature -10 °C to 40 °C.
- Storage conditions: -40 to 60 ° C.
- Weight:20g.
datasheet_48.pdf (426 Kb)
