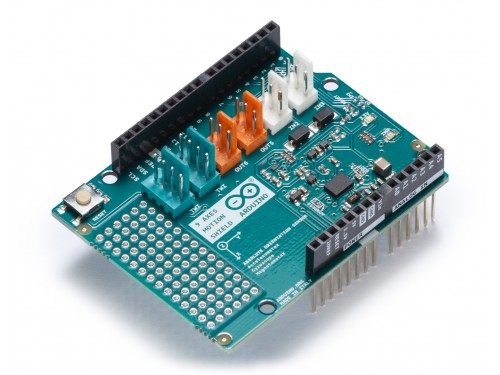

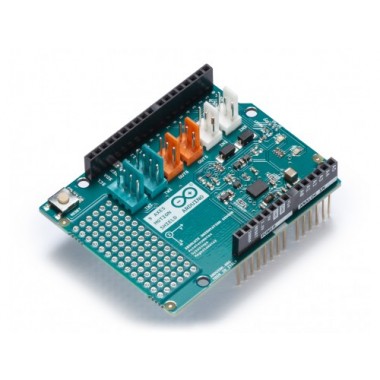

ARDUINO 9 AXIS MOTION SHIELD

El Arduino 9 Axis Motion Shield está basado en el sensor de orientación absoluta BNO055 de Bosch Sensortec GmbH, el cual integra un acelerómetro triaxial de 14 bits, un giróscopo triaxial de 16 bits con un rango de ±2000 grados/seg y un sensor geomagnético triaxial, junto con un microcontralador de 32 bits corriendo el software BSX3.0 FusionLib.

COD: A000070

Peso: 0.017 Kg

Disponibilidad: En Stock

ARS 56912.00

El producto no está disponible para la venta en este momento

Características

Descripción:

Arduino 9 axes motion shield
Based on absolute orientation sensor
Featured with several input/output and communication interfaces
RoHS and CE compliant

The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor. The BNO055 is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit microcontroller running the BSX3.0 FusionLib software. The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes. It also provides the sensor fusion signals such as Quaternion, Euler angles,Rotation vector, Linear acceleration and gravity vector.

In addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based on slow or no motion recognition, any motion (slope) detection and high-g-detection.The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.

Power:
The Arduino 9 Axes Motion Shield has no power jack and is powered only when attached to an Arduino board.

Input and output:
The shield features several TinkerKit input/output and communication interfaces. Connecting TinkerKit modules can simplify the creation of a project or a prototype.

Physical characteristics:

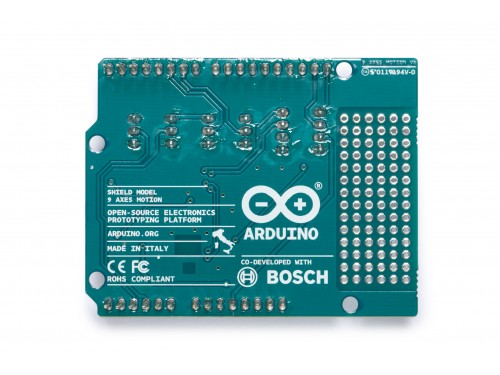

The maximum length and width of the 9 Axes Motion Shield PCB are 2.7 and 2.1 inches respectively. Four screw holes allow the board to be attached to a surface or case. Note that the distance between digital pins 7 and 8 is 160 mil (0.16"), not an even multiple of the 100 mil spacing of the other pins.

Compatibility:
The Arduino 9 Axes Motion Shield is compatible with Uno, Yùn, Leonardo, Ethernet, Mega and Due boards. When using the Arduino 9 Axes Motion Shield, be sure to solder the Interrupt bridge and Reset bridge in the correct position depending on the board used.

Programming:
The 9 Axes Motion Shield can be programmed with the Arduino software.
