RS485 to TTL Module SP3485
Placa conversora de interfaz RS-485 a UART.
COD: HTHS0232
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 4728.00
El producto no está disponible para la venta en este momento
Características
Description:

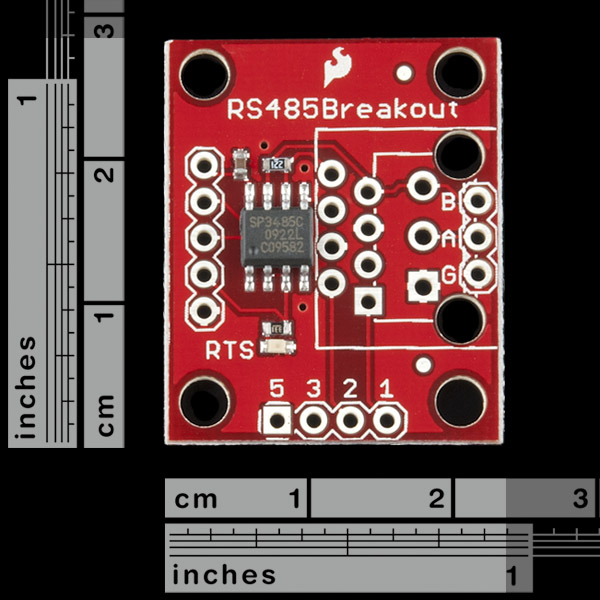

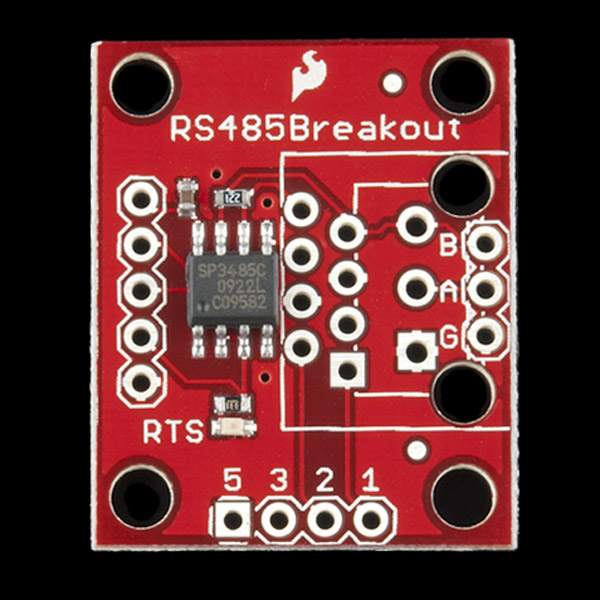

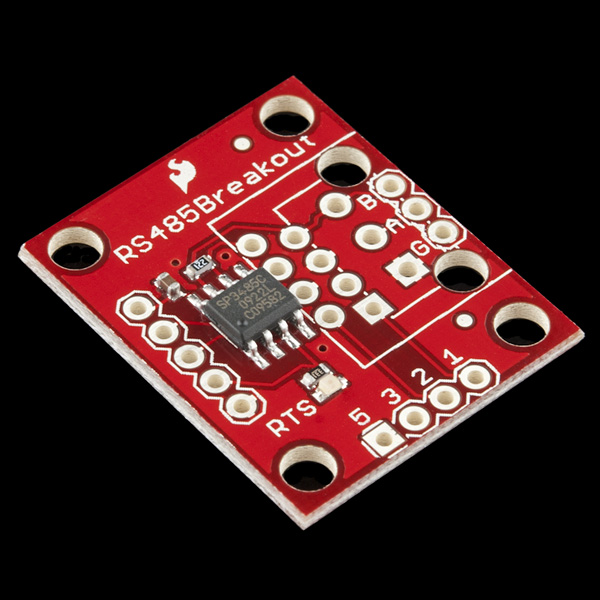

This is a breakout board for the SP3485 RS-485 transceiver IC, which will convert a UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. This board requires a very low amount of power and can operate from a single +3.3VDC supply.
This breakout board includes the SP3485 RS-485 transceiver, filter capacitor, and other components shown on the schematic. We've broken out the RS-485 output to three different connections: (1) an RJ-45 connector, (2) a 3-pin 3.55mm screw terminal, and (3) a 3-pin 0.1" pitch header; none of these output connectors come populated.
Features:
- Fully equipped with SP3485 RS-485 transceiver and supporting components.
- Operates from a single +3.3V supply.
- Interoperable with +5.0V logic.
- RS-485 input/output broken out to RJ-45 connector, 3.5mm screw terminal, and 0.1" pitch header.
- Driver/Receiver Enable connected to RTS line.
- -7V to +12V Common-Mode Input Voltage Range.
- Allows up to 32 transceivers on the serial bus.
- Driver Output Short-Circuit Protection.
