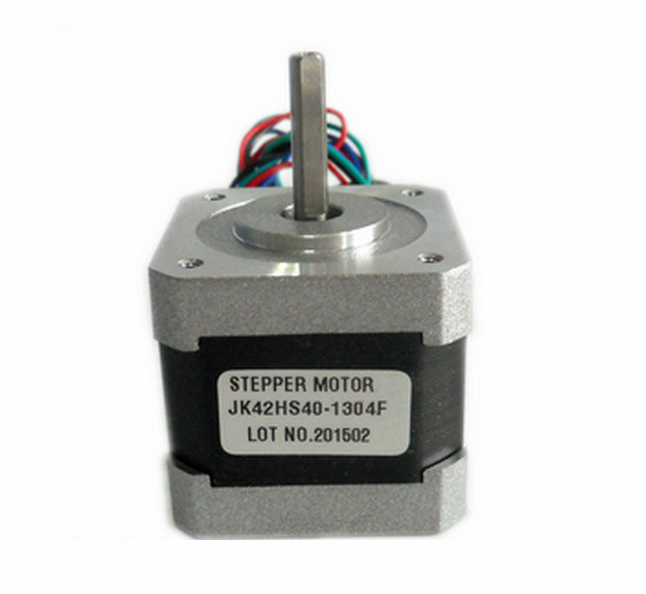

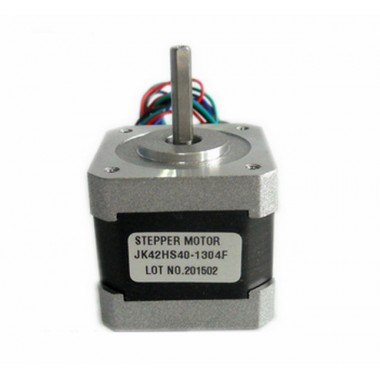

Stepper Motor Nema17 JK42HS40-1304F
Motor paso a paso bipolar NEMA17 con un ángulo de paso de 1.8º. Se alimenta con 3.4 Voltios.
COD: HTHR0741
Peso: 0.290 Kg
Disponibilidad: Sin Stock
ARS 28490.00
El producto no está disponible para la venta en este momento
Características
Description:
This is a generic 2 phase Nema17 hybrid stepper motor. It has a stepping angle of 1.8° and can complete a full circle in 200 steps. This motor has 2 phases and it is recommend to supply 1.3 amps per each phase. The dimension of the motor is 42 by 40mm with a shaft diameter of 5mm. Commonly used for Prusa type 3D printers.
Please note the wiring is listed as the following:
- Black and Green Is phase 1 A+ and A-
- Red and Blue is Phase 2 B+ and B-
Specifications:
- Stepping Angle: 1.8°
- Motor Length: 40mm
- Motor Width: 42mm
- Current per Phase: 1.3Amps
- Resistance per Phase: 2.5Ω
- Inductance per Phase: 5mH
- Holding Torque: 4 kg/cm
- # of wires: 4
- Rotor Inertia: 54g/cm^2
- Weight: 0.28kg
- Axial Length: 24mm
- Axial Width: 5mm
Applications:
- Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Electrical Specifications:
Model No. |
Step Angle |
Motor Length |
Current |
Resistance |
Induc |
Holding Torque |
# of Leads |
Detent Torque |
rot inerc |
Mass |
( °) |
(L)mm |
A |
Ω |
mH |
kg.cm |
No. |
g.cm |
g.cm |
Kg |
|
JK42HS28-0604 |
1.8 |
28 |
0.6 |
8 |
10 |
1.2 |
4 |
130 |
27 |
0.15 |
JK42HS34-1304 |
1.8 |
34 |
1.3 |
2.4 |
2.8 |
2.8 |
4 |
160 |
34 |
0.22 |
JK42HS34-1704 |
1.8 |
34 |
1.7 |
1.2 |
1.8 |
2.8 |
4 |
160 |
34 |
0.22 |
JK42HS34-0404 |
1.8 |
34 |
0.4 |
30 |
35 |
2.8 |
4 |
160 |
34 |
0.22 |
JK42HS34-0406 |
1.8 |
34 |
0.4 |
30 |
18 |
2.1 |
6 |
160 |
34 |
0.22 |
JK42HS40-1704 |
1.8 |
40 |
1.7 |
1.5 |
2.8 |
4.0 |
4 |
220 |
54 |
0.28 |
JK42HS40-1304 |
1.8 |
40 |
1.3 |
2.5 |
5.0 |
4.0 |
4 |
220 |
54 |
0.28 |
JK42HS40-1206 |
1.8 |
40 |
1.2 |
3.2 |
2.8 |
2.8 |
6 |
220 |
54 |
0.28 |
JK42HS40-0406 |
1.8 |
40 |
0.4 |
30 |
28 |
2.8 |
6 |
220 |
54 |
0.28 |
JK42HS48-1704 |
1.8 |
48 |
1.7 |
1.8 |
3.2 |
4.9 |
4 |
260 |
68 |
0.35 |
JK42HS48-1304 |
1.8 |
48 |
1.3 |
3.2 |
5.5 |
4.9 |
4 |
260 |
68 |
0.35 |
JK42HS48-2304 |
1.8 |
48 |
2.3 |
1.2 |
1.6 |
4.9 |
4 |
260 |
68 |
0.35 |
JK42HS48-0406 |
1.8 |
48 |
0.4 |
30 |
38 |
3.6 |
6 |
260 |
68 |
0.35 |
Package included:
1x 40MM/ 48MM Stepper Motor
