ESP-Launcher Dev. Board, ESP8266 Wifi
Potente placa de desarrollo basada en el ESP8266 con interfaz micro USB. La misma provee acceso total a los 32 pines del ESP8266 permitiendo al programador desarrollar numerosas aplicaciones relacionadas al Internet de las cosas (IOT). Consulte los manuales debajo de la descripción para obtener links a software para desarrollo, ejemplos, etc.
COD: TRONWI1142
Peso: 0.040 Kg
Disponibilidad: En Stock
ARS 51357.00
El producto no está disponible para la venta en este momento
Características
Description:
- ESP8266 development / evaluation board, comprehensive perripherial features, get quick start on easp8266, and focus on software development.

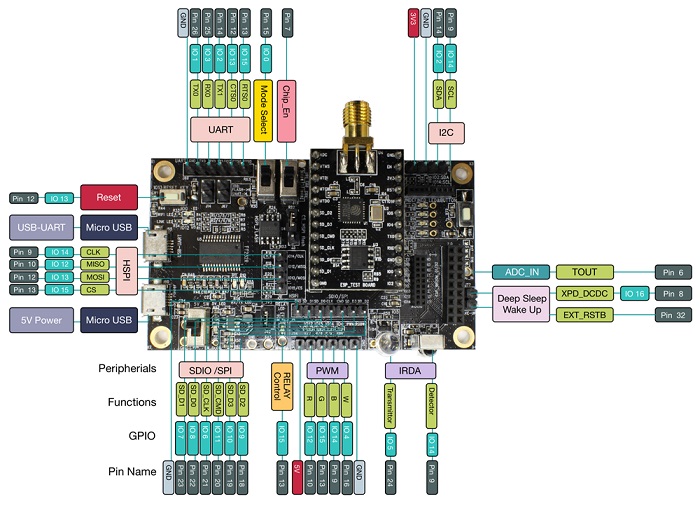

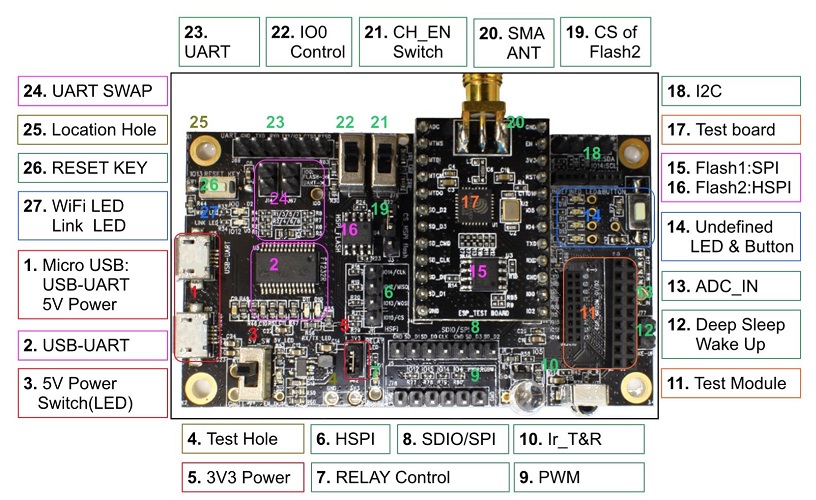

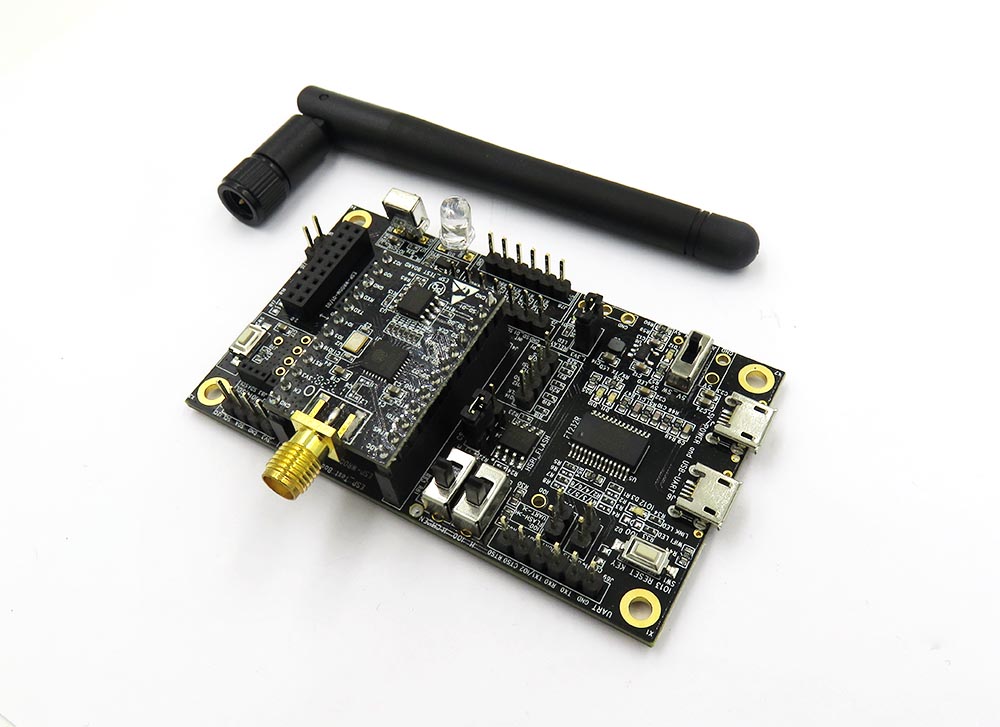

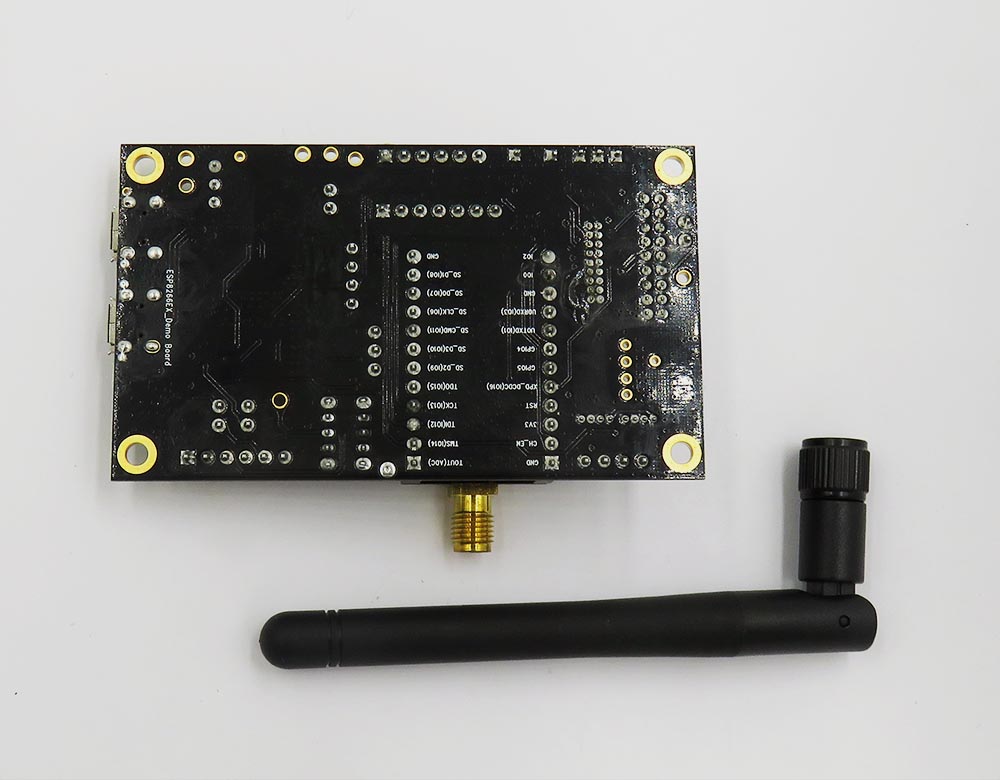

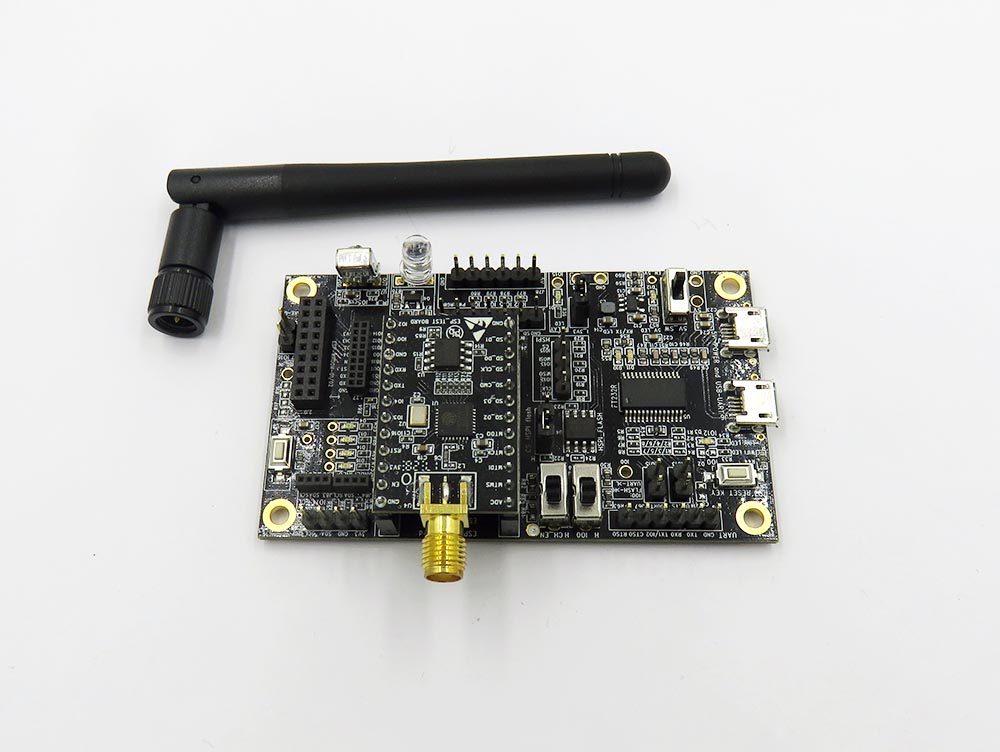

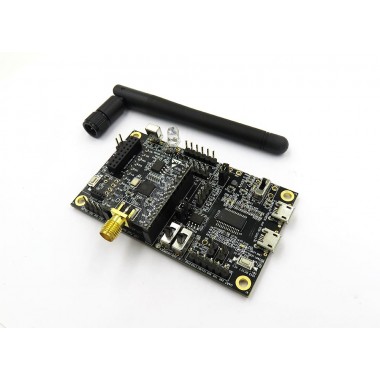

- For board details please see attached images.
- Hardware details please see esp8266 hardware user guide PDF. (if link does not work please just google for it)
- To upload code and quick start, can see esp8266 quick start guide PDF. (if link does not work please just google for it)
- Shipment includes all items listed in the attached images.
Applications:
Major fields of ESP8266EX applications to Internet-of-Things include:
• Home Appliances
• Home Automation
• Smart Plug and lights
• Mesh Network
• Industrial Wireless Control
• Baby Monitors
• IP Cameras
• Sensor Networks
• Wearable Electronics
• Wi-Fi Location-aware Devices
• Security ID Tags
• Wi-Fi Position System Beacons
Documentation:
- http://akizukidenshi.com/download/ds/espressifsystems/0B-ESP8266__Hardware_User_Guide__EN_v1.1.pdf
- http://espressif.com/sites/default/files/documentation/esp8266_quick_start_guide_en.pdf
User Guide (10864 Kb)
