Antenna pack for ED20 Tracker Board, GSM GPRS GNSS BT3.0 IOT

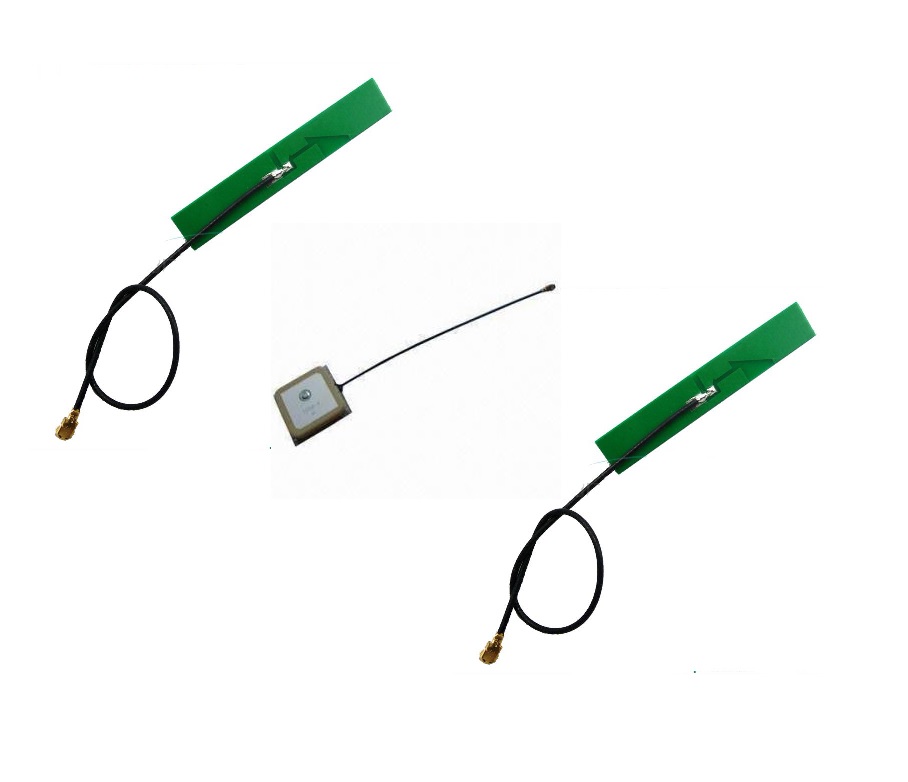

Pack de 2 antenas de tipo GSM/GPRS, y una de tipo GPS. Los rangos de frecuencias y características de cada una están descritos más abajo.
COD: TRONGS1064
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 10496.00
El producto no está disponible para la venta en este momento
Características
Description:
1306 GSM/GPRS PCB Antenna:
- Frequency 824-960/1710-1990/2010-2170MHz
- S.W.R. <= 2.0
- Antenna Gain 3.0
- Impedance 50 Ohm
- Cable Type O.D. 1.13 mm
- Operation Temperature – 40 °C ~ + 65 °C
- PCB Antenna: 35.00MM * 5.70MM * 0.70MM
- Cable length100MM, total length 13CM
- Interface form: one end of the IPX terminal (button), the other end of the circuit board for direct welding, in order to prevail
- Back side tape, directly tape it to fix.
1407 2.4G PCB Antenna:
-
- Frequency 2371 -2483 MHz
- S.W.R. <= 2.0
- Antenna Gain 3.0 /4.0
- Impedance 50 Ohm
- Cable Type O.D. 1.13 mm
- Operation Temperature – 40 °C ~ + 65 °C
- Storage Temperature – 40 °C ~ + 80 °C
- PCB Dimension:48MM*7.5MM*1.0MM
- Cable Dimension: 100MM Total length 14.5CM
- This product is mainly used for notebook built-in, Bluetooth, wireless modules, and other series for the frequency of related products.
- Back side tape, directly tape it to fix.
GPS Antenna:
- Total size of antenna PCB: 13*13*6.5MM.
- Compact size for buid-in use.
- IPEX connector cable, length 10CM.
- Center Frequency-MHz: 1575.42MHz±3.
- Bandwidth -MHz: ±5.
- Peak Gain ＞3dBic Based on 7×7cm ground plane.
- Gain Coverage ＞-4dBic at –90°ï¼œ0＜+90°(over75%Volue).
- Polarization: RHCP.
- LNA Gain: 20dB Typical.
- Noise Figure: 1.5dB.
- Filter Out Band: Attenuation (f0=1575.42 MHZ).
- 7dB ï¼in f0+/-20MHZ.
- 20dB ï¼in f0+/-50MHZ.
- 30dB ï¼in f0+/-100MHZ.
- DC Voltage:3V , 5V, 3V to 5V and so on 2.7V/3V/3.3V/5V/3~5V.
- DC current: 5mA /10mA Max 20mA Max.
- VSWR: ≤2.0.
