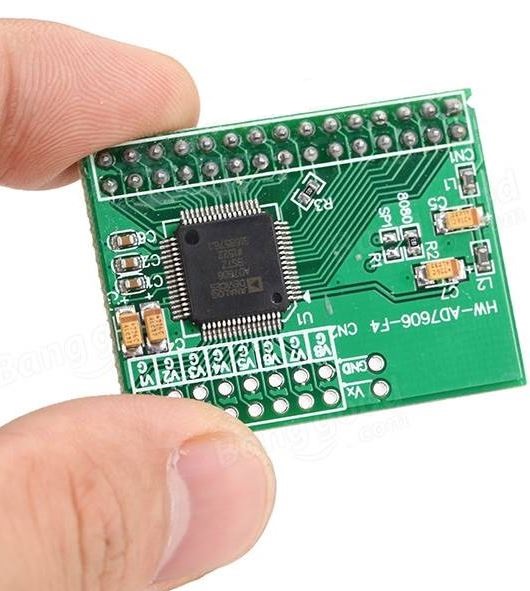

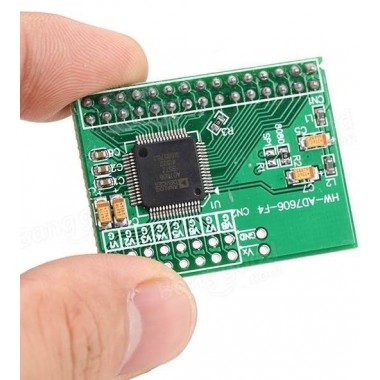

AD7606 Data Acquisition Module ADC 16 Bits 8 Channel
Módulo de adquisición de datos basado en el conversor analógico digital (ADC) AD7606 de gran precisión. Posee 8 canales de entradas analógicas.
COD: HTHR0214-146A
Peso: 0.011 Kg
Disponibilidad: Sin Stock
ARS 52000.00
El producto no está disponible para la venta en este momento
Características
Features:
- Using high-precision 16-bit ADC AD7606 chip
- 8 channel analog inputs. 1M ohm impedance. (No need negative supply, no need analog amplifier circuit, can be directly connected to the sensor output]
- The input range: ± 5V, ± 10V. can control range by IO.
- Resolution: 16 bit
- The maximum sampling frequency: 200Ksps. Supports 8-speed oversampling settings (can reduce shaking)
- Internal reference
- Using 5V power supply
- SPI interface, or 16-bit bus interface. Interface IO level can be 5V or 3.3V.
Package includes:
1 x AD7606 Data Acquisition Module
