Medidor de Distancia Infrarrojo 20-150cm GP2Y0A02YK0F

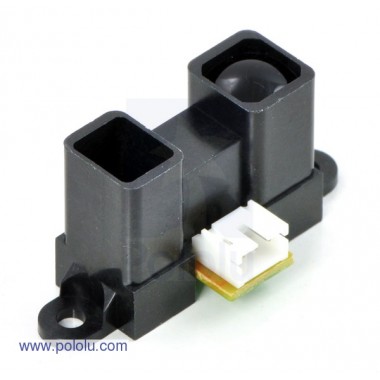

Medidor de distancia infrarrojo de 20 a 150cm, basado en el sensor Sharp GP2Y0A02YK0F
COD: P001137
Peso: 0.015 Kg
Disponibilidad: Sin Stock
ARS 29294.00
El producto no está disponible para la venta en este momento
Características
Overview

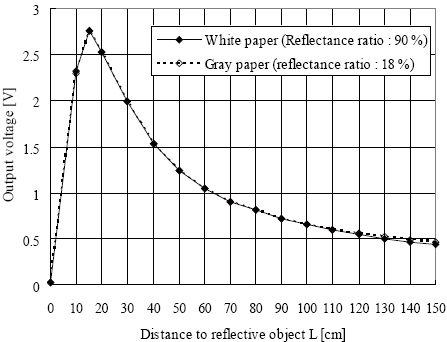

The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 20 cm to 150 cm (8" to 60"); a plot of distance versus output voltage is shown below.

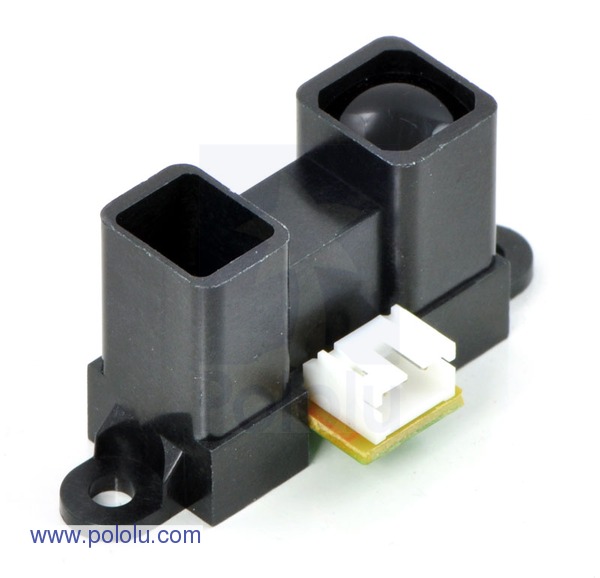

The GP2Y0A02 uses a 3-pin JST connector (not included) as shown in the top picture on the right. It is also simple to solder three wires to the sensor where the connector pins are mounted. When looking at the back, the three connections from left to right are power, ground, and the output signal.
Feature summary
- operating voltage: 4.5 V to 5.5 V
- average current consumption: 33 mA (typical)
- distance measuring range: 20 cm to 150 cm (8" to 60")
- output type: analog voltage
- output voltage differential over distance range: 2.0 V (typical)
- response time: 38 ± 10 ms
- package size: 29.5×13.0×21.5 mm (1.16×0.5×0.85")
- weight: 4.8 g (0.17 oz)
Linearizing the output
The relationship between the sensor’s output voltage and the inverse of the measured distance is approximately linear over the sensor’s usable range. The GP2Y0A02YK data sheet contains a plot of analog output voltage as a function of the inverse of distance to a reflective object. You can use this plot to convert the sensor output voltage to an approximate distance by constructing a best-fit line that relates the inverse of the output voltage (V) to distance (cm).
GP2Y0A02YK data sheet (686 Kb)
