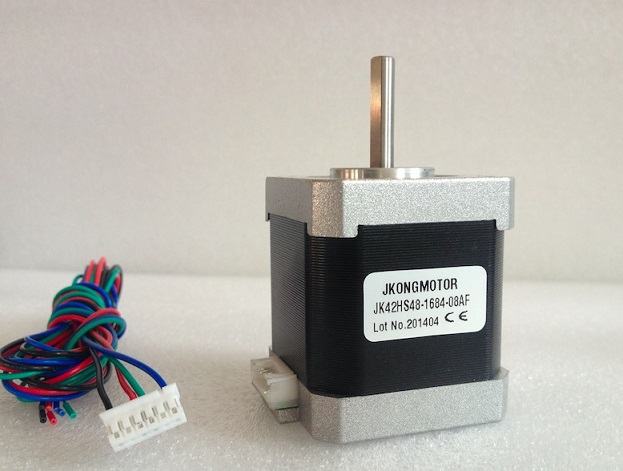

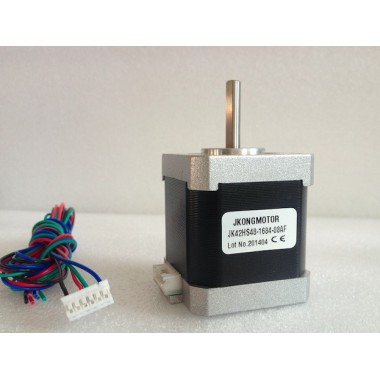

Nema 17 JK42HS48-1684-08AF
Motor paso a paso bipolar NEMA 17 de alto torque. Frecuentemente usado en Impresoras 3D, y Máquinas CNC.
COD: HTHR0214-50
Peso: 0.350 Kg
Disponibilidad: Sin Stock
ARS 30490.00
El producto no está disponible para la venta en este momento
Características
Description:
This is a shaft- reversed stepper motor that is frequently used in CNC machines and 3D printers.
The Advantages of step motors are low cost, high reliability, high torque at low speeds and a simple, rugged construction that operates in almost any environment. They are typically digitally controlled as part of an open loop system for use in holding or positioning applications.
This is a Nema 17 stepper motor with a 1.7 x 1.7 inch (43.2 x 43.2 mm) faceplate. The Nema 17 is larger and generally heavier than for example a Nema 14, but this also means it has more room to put a higher torque. However, its size is not an indication of its power.
Specifications:
- 2 Phases.
- Step Angle: 1.8±5% degree/phase.
- Voltage: 4.2V DC.
- Current: 1.2A/phase.
- Resistance: 8.8±10% Ω/phase.
- Inductance: 6.0mH±20 %( 1kHz 1V rms).
- Lead style: AWG26 UL1007.
- Comes with 70cm 4-Lead Wire.
- Holding torque: 40N.cm Min.
- Detent torque: 2.6N.cm Max.
- insulation resistance:100MΩ Min (DC 500V).
- Insulation class: B (130°C).
- Rotor torque: 57g.cm 2.
- 70cm long cable.
- Package Size: 18cm x 14cm x 12cm (7.09in x 5.51in x 4.72in).
- Package Weight: 0.37kg (0.82lb).
