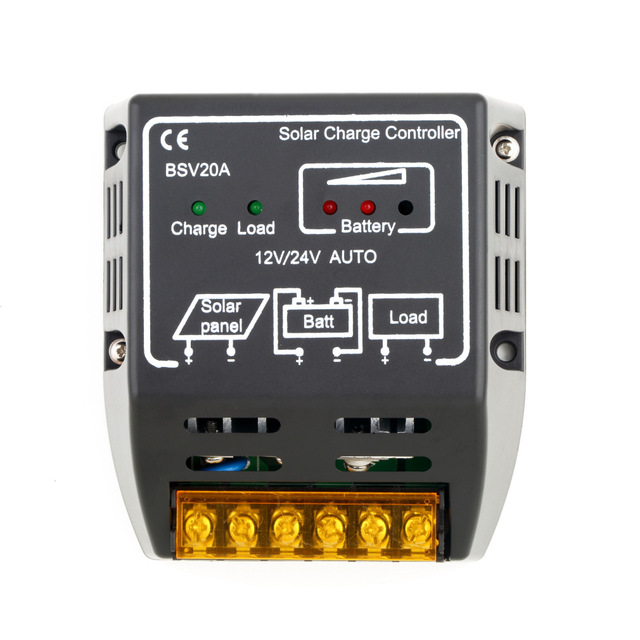

20A 12V/24V PWM Solar Panel Charge Controller Battery Regulator
Regulador de carga para baterías de plomo de 12V o 24V (20A) apto para ser usado con un panel solar, con protección contra sobrecarga y sobredescarga. Permite gestionar de forma automática y eficiente la energía del sistema.
COD: HTHS0044
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 22465.00
El producto no está disponible para la venta en este momento
Características
Automatically manage the work of Solar Panel and battery in the solar system. overload and short circuit protection. Invert unloading & polarity protected. Undervoltage and over discharge protection. Protection against lightning. Extend the battery life cycle and also keep the load of work. Easy to install and operate. Suitable for small solar system. Automatically manage the work of Solar Panel and battery in the solar system.
overload and short circuit protection. Invert unloading & polarity protected. Undervoltage and over discharge protection.
Protection against lightning. Extend the battery life cycle and also keep the load of work.
Easy to install and operate.
Suitable for small solar system.
Voltage: 12V DC / 24V.
self-consumption: 10MA.
Reviewed charge current: 20 A.
rated load current: 20 A.
over charge protection: 14.4 / 28.8V.
Floating charge: 13.5V / 27V.
Recover: 13.2 V / 26.4 V.
over discharge protection: 10.8V / 21.6V.
Recover: 12.3V / 24.6V.
load overvoltage protection: 16.5 V / 34V.
Recover: 15V / 30V.
Max open circuit voltage of the solar panel: 25V / 36V.
Operating temperature: -20 ° -50 °.
item size: 10.2 * 9.5 * 3.8cm / 4 * 3.7 * 1.5in.
item weight: 117g / 4.1 oz.
manual_scc.pdf (415 Kb)
