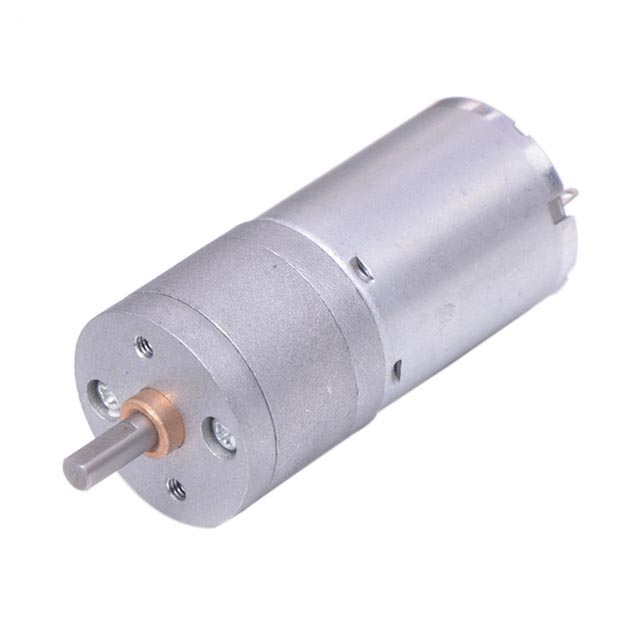

JGA25-370 DC reduction motor

JGA25-370 DC motor speed reduction motor intelligent robot motor intelligent car motor

Motor DC con reductor incorporado modelo JGA25-370.

COD: HTHS0112

Peso: 0.200 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 20464.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

  • Certification: CE.
  • Commutation: Brush.
  • Speed(RPM): 3V12-1363 rpm, 6V12-1363rpm, 12V17-1931rpm, 24V7.5-863rpm.
  • Construction: Permanent Magnet.
  • Output Power: 3V2W6V2W/12v4W/24V1W.
  • Efficiency: IE 2.
  • Protect Feature: Totally Enclosed.
  • Torque: 3V0.1-106kg.cm, 6V0.1-106kg.cm, 12V0.11-14kg.cm, 24V0.083-9.5kg.cm.
  • Type: Gear Motor.
  • Continuous Current(A): 3V80am6V80ma/12V50ma/24V10ma.
  • Model Number: JGA25-370.
  • Voltage(V): 3V/6V/12V/24V.

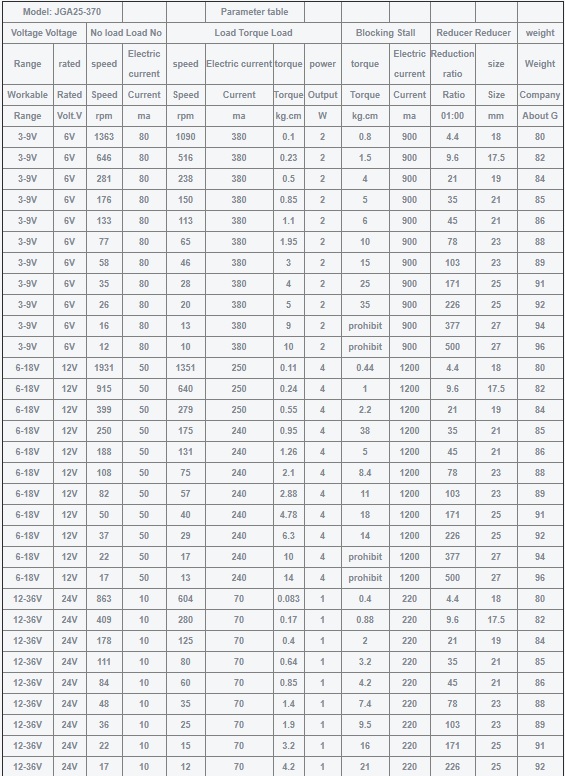

3V No-load RPM:

  • 681rpm  323rpm 140rpm 88rpm 66rpm 38rpm 29rpm 17rpm 13rpm 8rpm 6rpm.



6V No-load RPM:

  • 1363rpm 646rpm 281rpm 176rpm 133rpm 77rpm 58rpm 35rpm 26rpm 16rpm 12rpm.
  • 12V No-load RPM:
  • 1931rpm 915rpm 399rpm 250rpm 188rpm 108rpm 82rpm 50rpm 37rpm 22rpm 17rpm.



24V No-load RPM:

  • 863rpm 409rpm 178rpm 111rpm 84rpm 48rpm 36rpm 22rpm 17rpm 10rpm 7.5rpm

.

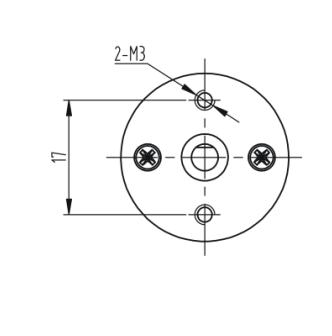

Dimensions:

  • Weight: 0.200kg (0.44lb.).
  • Package Size: 13cm x 9cm x 10cm (5.12in x 3.54in x 3.94in).
