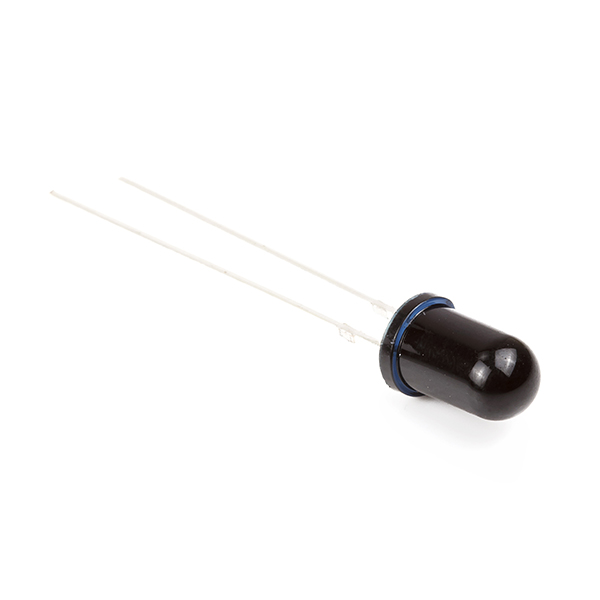

YS-17 Flame Sensor 5mm
Diodo infrarrojo detector de llama/fuego. Asimismo detecta fuentes de luz infrarroja en el rango de 760nm-1100nm. Basado en el YG1006.
COD: HTHR0284-U
Peso: 0.000 Kg
Disponibilidad: En Stock
ARS 400.00
El producto no está disponible para la venta en este momento
Características
Description:
Flame Sensor - 5mm IR Diode can work as a fire detection flame sensor module, fire source detection modules. This Flame Sensor can be used to detect fire source or other light sources of the wave length in the range of 760nm - 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. It can be used as flame Sensor for Smart Car.
Features:
- Package type: leaded
- Dimensions : 5mm
- Leads with stand-off
- Peak wavelength: λp = 940 nm
- High reliability
- Fast response time
- High photo sensitivity
- Forward Voltage : 1.2V ~ 1.5V
- operating voltage : 3.3V-5V
