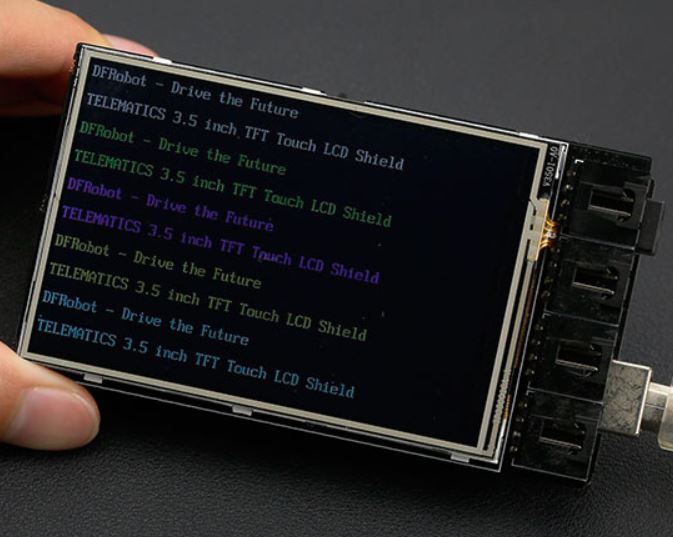

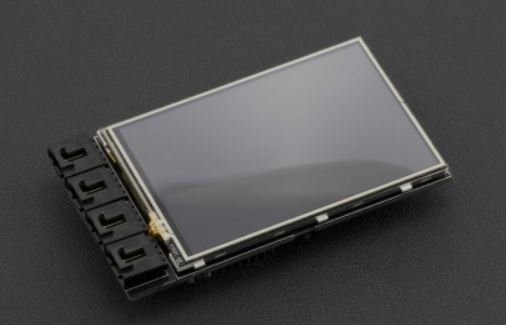

TELEMATICS 3.5
Pantalla LCD TFT de 3.5 pulgadas con una resolución de 320x480, tres puertos serie y una interfaz I2C. Viene en formato shield. Compatible con Arduino Mega 1280/2560 entre otros.
COD: DFR0387
Peso: 0.070 Kg
Disponibilidad: Sin Stock
ARS 80828.00
El producto no está disponible para la venta en este momento
Características
INTRODUCTION
For beginners to Arduino it can be daunting and risky to wire LCD driver circuits - one wrong connection and your component can be damaged. This LCD expansion board removes all the complications and risks.
The TELEMATICS 3.5" TFT Touch LCD Shield is an Arduino compatible display designed by DFRobot, with a resolution of 320x480, three serial ports and one IIC interface. It is perfectly compatible with Arduino DUE, Mega1280/2560, and Bluno Mega1280/2560. There is an on-board voltage switch which supports changing the output voltage between 3.3V and 5V to ensure that it won't damage your DUE. In addition, the LCD shield comes with a MicroSD card slot on the back that can be used for data storage up to a maximum of 32GB. We also offer a variety of driver packages to help you implement different features.
Note: Since the operating voltage of DUE and MEGA are different, the backlight brightness will change if you replace your Arduino platform. Please adjust the D8 PWM signal to control the brightness of the backlight.
SPECIFICATION
- Screen Size: 3.5"
- Resolution Ratio： 320x480
- Power Supply: 5V
- Output Voltage: 3.3/5V
- Backlight Control Mode: D8 PWM signal
- Supports MicroSD card (Up to 32GB)
- Serial Ports: 3
- IIC interface: 1
- Compatible with Arduino Compatible DUE/Mega 1280/2560
- Compatible with the Bluno Mega 1280/2560
- Supports Touch Functionality
- Dimensions: 100x57mm/3.93x2.24 inches
- Weight: 70g
arduino_libraries.zip (59 Kb)
dfr0387__obd-ii_lcd_shield_v1.0_.pdf (72 Kb)
